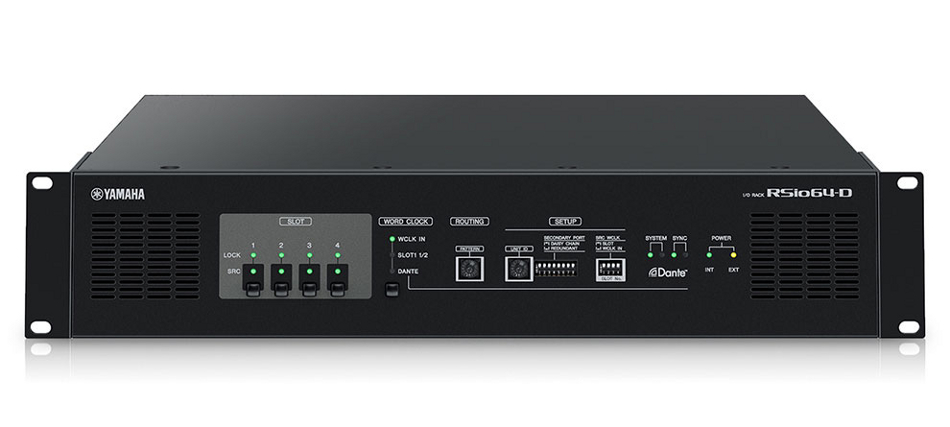

Yamaha RSio64-D Mini Dante I/O Box for Mixers

The Yamaha RSio64-D - the most recent addition to the R series - is an audio interface that converts between Dante and Mini-YGDAI formats for up to 64 inputs and 64 outputs, providing enhanced flexibility for sound systems that include a Dante audio network. Pairing the RSio64-D interface with Dante/Mini-YGDAI card conversion allows for use across many professional audio applications - including live sound, broadcast and recording - with an array of I/O and processing options offered by more than 30 different Mini-YGDAI cards. What's more is those cards are not just limited to I/O cards that handle AES/EBU or ADAT formats, but also processing cards that provide capabilities such as Lake processing and Dan Dugan automatic mixing.

Includes

• Owner's Manual
• AC power cord

Yamaha RSio64-D Features:

• Mini-YGDAI cards offer a multitude of I/O and processing options
• Seven general routing presets, including routing between Mini-YGDAI cards
• Supports full matrix patching from R Remote V3 or a CL/QL series console
• Sample rate converters for all four Mini-YGDAI slots
• EXT DC INPUT for redundant power supplies
• Supports Dante redundancy

Yamaha RSio64-D Specifications:

• Sampling Frequency External Clock Frequency Range:
  • 44.1kHz +4.1667 %/+0.1 %/-0.1 %/-4.0 % ± 200 ppm
  • 48kHz +4.1667 %/+0.1 %/-0.1 %/-4.0 % ± 200 ppm
  • 88.2kHz +4.1667 %/+0.1 %/-0.1 %/-4.0 % ± 200 ppm
  • 96kHz +4.1667 %/+0.1 %/-0.1 %/-4.0 % ± 200 ppm
• Signal Delay:
  • SLOT IN (MY8-AE96) to SLOT OUT (MY8-AE96): Less than 0.2 ms
    • (@ fs=96 kHz, SRC off, Internal routing)
  • SLOT IN (MY8-AE96) to Rio3224-D AES OUT: Less than 0.8 ms
    • (@ fs=48 kHz, through Dante, SRC off)
    • (Dante Receive Latency set to 0.25 ms)
  • SLOT IN (MY8-AE96) to Rio3224-D AES OUT: Less than 0.5 ms
    • (@ fs=96 kHz, through Dante, SRC off)
    • (Dante Receive Latency set to 0.25 ms)
  • SLOT IN (MY8-AE96) to Rio3224-D AES OUT: Less than 1.1 ms
  • (@ fs=96 kHz, through Dante, SRC on, SLOT fs=48 kHz)
  • (Dante Receive Latency set to 0.25 ms)
• SRC:
  • SRC Lock Range: 39.7 kHz - 101.7 kHz
  • Sample Rate Ratio Limit: 1:2:6 to 2:6:1
• Dimensions (W x H x D): 480 x 88 x 365mm (18.9" x 3.46" x 14.4"), 2U
• Weight: 6.1kg (13.4 lbs)
• Power consumption: 60W
• Power Requirements:
  • US/Canada: 120V; 60 Hz
  • Japan: 100V; 50/60 Hz
  • China: 110 - 240V; 50/60 Hz
  • Korea: 220V; 60 Hz
  • Other: 110-240V; 50/60 Hz
• Temperature Range:
  • Operating temperature range: 0° - 40 °C
  • Storage temperature range: -20° - 60 °C
