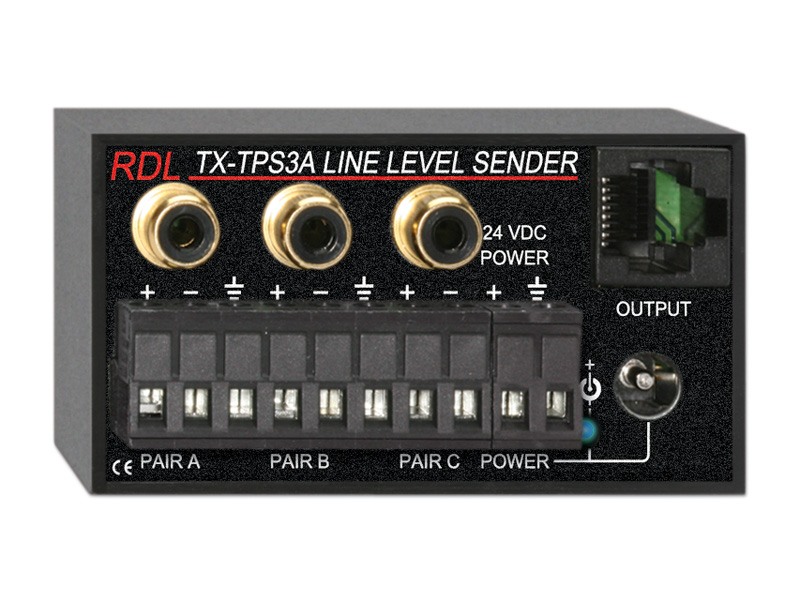

RDL TX-TPS3A Active 3-Pair Sender, Twisted Pair Format-A , Balanced Line Inputs Image 1
RDL TX-TPS3A Active 3-Pair Sender, Twisted Pair Format-A , Balanced Line Inputs
Our Price: $204.80
List Price: $273.07
You save 25%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$6/mo* with 36 month financing. ‡
Limited Time. Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Radio Design Labs' TX-TPS3A is a three-pair audio sending module compatible with RDL Format-A twisted pair products. Three line-level sources may be connected to the module, each using either the -10 dBV unbalanced RCA phono jack or the +4 dBu balanced detachable terminal block. Studio-quality buffer amplifiers feed the RJ45 OUTPUT at the correct operating level.

The TX-TPS3A feeds all three signal pairs in the twisted pair cable. No other sending modules may be connected on the same cable with this module.

The TX-TPS3A may be powered directly from a 24 Vdc power supply using either the power jack or the detachable terminal block. Local power connected to the module is also fed to all modules connected to the OUTPUT RJ45 jack. The TX-TPS3A may be remotely powered through the twisted pair cable from any other module, signal distributor or RDL power inserter connected to the same twisted pair cable. Module power is indicated by a front-panel LED.

Radio Design Labs TX-TPS3A Features:

  • Three -10 dBV Unbalanced or +4 dBu Balanced Inputs
  • Phono Jack and Detachable Terminal Block Inputs
  • Audio Inputs to Feed Pairs A, B and C
  • Utilizes All Three Format-A Pairs
  • Powered Locally or Remotely through RJ45 Jack
  • Local Power Feeds all Modules Connected to OUTPUT
  • Wiring Fault Protection by Automatic Resetting Fuse
  • Local Power Input on Terminal Block or dc Power Jack
  • Blue LED Indicates Module is Powered
  • Studio-Quality Precision Active Balanced Circuitry

Radio Design Labs TX-TPS3A Specifications:

  • Inputs (6):
    • 20 kOhm balanced (3)
    • 10 kOhm unbalanced (3)
  • Input Connection:
    • Terminal Block (Bal.)
    • Phono Jack (Unbal.)
  • Input Level: +4 dBu Bal.; -10 dBV Unbal.; +22 dBu Max
  • Format-A Signal Pairs Used (3): A, B, C
  • Output: RDL TP Format-A
  • Output Connection: RJ45
  • Frequency Response: 10 Hz to 50 kHz (± 0.1 dB)
  • THD+N: < 0.005%
  • Noise below +4 dBu: < 90 dB
  • Crosstalk:
    • < 85 dB (1 kHz)
    • < 70 dB (20 Hz to 20 kHz)
  • Headroom above +4 dBu: > 18 dB
  • CMRR: > 60 dB (50 Hz to 150 Hz)
  • Indicator: Power In
  • Power Connections (3):
    • Power Jack
    • Detachable Terminal Block
    • RJ45
  • Ambient Operating Environment: 0° C to 55° C
  • Power Requirement: 24 Vdc @ 65 mA plus connected loads
  • Dimensions:
    • 3.0" (7.6 cm) W
    • 1.6" (4.08 cm) H
    • 2.09" (5.3 cm) D
  • Package Type: Cardboard Box
  • Package Dimensions: 2 x 2 x 4 in.
  • Shipping Weight: 0.49 lbs.
  • WEEE weight: 0.435 lbs.
  • Tariff code: 8517.18.0000
