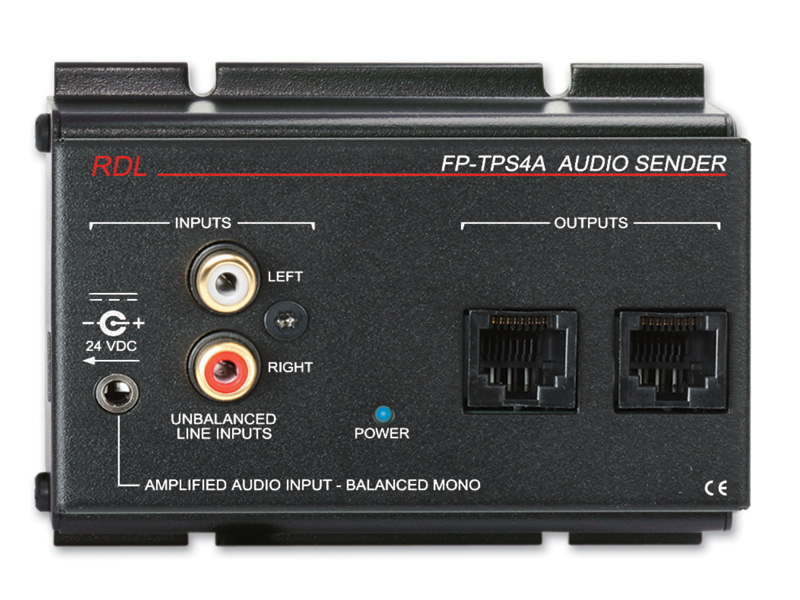

Radio Design Labs FP-TPS4A
Format-A 2-Pair Audio Sender

OUR PART #:  FP-TPS4A

Radio Design Labs' FP-TPS4A is an RDL Format-A Audio Sender that accepts either a stereo line-level or 1 to 3 Watt mono amplified fixed-level signal...
Learn More
Our Price: $145.03
List Price: $194.00
You save 25%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Radio Design Labs FP-TPS4A
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Radio Design Labs' FP-TPS4A is an RDL Format-A Audio Sender that accepts either a stereo line-level or 1 to 3 Watt mono amplified fixed-level signal, usually from a commercial hospitality equipped TV. The FP-TPS4A distributes the source signal to two Format-A output jacks to feed multiple Format-A receivers.

The input accepts either an unbalanced stereo or an amplified mono input. The FP-TPS4A sends the unbalanced Left and Right sources over balanced twisted-pair cables on pairs B and C. If a mono amplified signal is connected, the mono source is fed to both pairs B and C. Audio circuitry is active balanced for superior audio fidelity and low-noise performance.

The FP-TPS4A is normally mounted behind a TV where AC power is available. A 24 Vdc power supply, available separately, provides power to the FP-TPS4A and to the connected receiving modules. It is not necessary to connect power supplies to the connected receivers, facilitating installation. A front-panel blue LED is illuminated when the FP-TPS4A is receiving and distributing 24 Vdc to both RJ45 jacks. The distributed output dc voltage is short-circuit protected by an automatically resetting fuse. A power fault on either output jack causes the blue LED to extinguish.

The FP-TPS4A is ideally suited to guest room installations with bedside and restroom listening stations. The outputs are fully compatible with all RDL Format-A receivers.

RDL FORMAT-A features design simplicity, ease of installation, unsurpassed flexibility, automatic fused power, exceptional hum rejection, low noise, and low distortion to provide designers and installers an optimal choice in economical twisted pair products.

Radio Design Labs FP-TPS4A Features:

  • Format-A Sender from TV Fixed Audio Output
  • Sends Left and Right Audio Channels
  • Unbalanced Stereo Input from Fixed Level Audio Source
  • Balanced Audio Input from Mono Amplifier
  • High Quality Audio Distributed to Each RJ45 Output
  • Two Format-A Outputs on RJ45
  • Distributes Power to Connected Receivers
  • Automatically Resetting Fuse for Output Voltage
  • Ultra-Compact All Metal Construction

Radio Design Labs FP-TPS4A Specifications:

  • Inputs (3):
    • 20 kOhm unbalanced (2, left and right)
    • 100 kOhm balanced (mono amplified)
  • Input Connection:
    • Phono Jack (Unbal.)
    • Mini-jack (Bal.)
  • Input Level: -10 dBV unbalanced; 1 W (8 Ohms) to 10 W (8 Ohms) balanced, 2 W nominal
  • Format-A Signal Pairs Used (2): B, C
  • Output: RDL TP Format-A
  • Output Connection: RJ45
  • Frequency Response: 10 Hz to 50 kHz (± 0.1 dB)
  • THD+N: < 0.05%
  • Noise below +4 dBu: < -85 dB
  • Crosstalk:
    • < -85 dB (10 Hz to 10 kHz)
    • < -80 dB (10 kHz to 20 kHz)
  • Headroom above +4 dBu: > 18 dB
  • Indicator: Power (Input and outputs active)
  • Power Connection: Power Jack (locking)
  • Maximum Load Current: 500 mA
  • Power Requirement: 24 Vdc @ 30 mA plus connected loads
  • Dimensions:
    • 4.15" (10.5 cm) L
    • 3.25" (8.6 cm) W
    • 1.68" (4.27 cm) H
  • Package Type: Cardboard Box
  • Package Dimensions: 3.625 x 4.625 x 2.125 in.
  • Shipping Weight: 0.665 lbs.
