OUR PART # DS-TPS2A
Radio Design Labs' D SERIES-TPS2A modules are two-pair audio sending modules compatible with RDL Format-A twisted pair products. These modules are designed to be mounted in wall boxes, cabinets or other enclosures that allow users to connect audio sources. The DS-TPS2A model mounts in RDL WB-1U and WB-2U wall boxes, or in standard U.S. electrical boxes. The DS-TPS2A is constructed of stainless steel to coordinate with RDL Decora-style stainless steel remote controls in commercial/industrial installations.

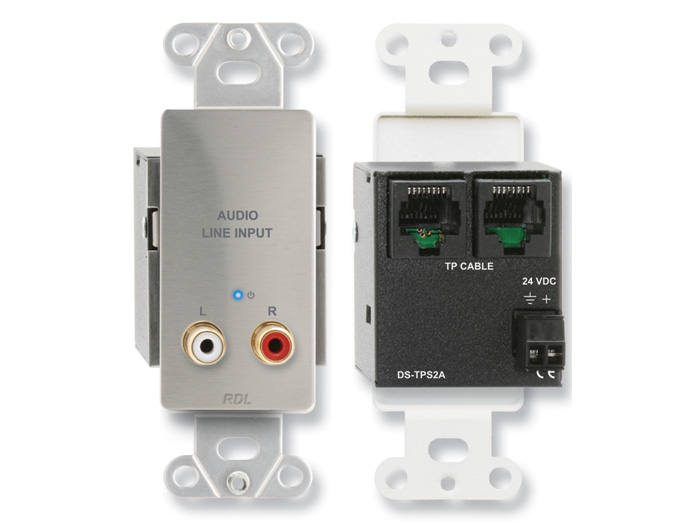

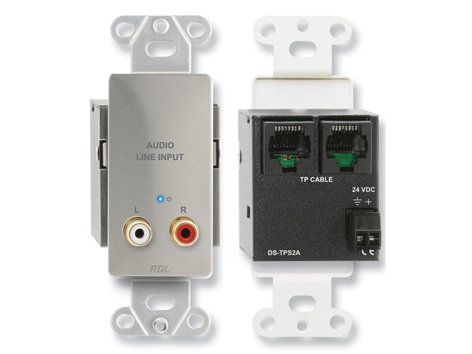

The DS-TPS2A module features two RCA phono jack inputs - one for the left channel source and one for the right channel source. These inputs are designed to receive standard -10 dBV consumer level signals, and the input signals are amplified using studio-quality preamplifiers optimized for normal operating levels. The buffered left and right inputs are routed to output cable pairs B and C. This module drives only two cable pairs, therefore it accepts a signal and power from one mic-level or line-level Format-A single-pair sender. The D SERIES-TPR1A modules have a second RJ45 jack for an input cable. One single-pair sender may be chained with the -TPS2A. A single-pair sender must be set to feed pair A if it is connected together with the -TPS2A. The power pair and all three audio pairs are fed through both rear-panel RJ45 jacks.
The DS-TPS2A may be powered directly from a 24 Vdc power supply using the detachable terminal block. Local power connected to the module is also fed to all connected remote modules. The module may be remotely powered through the twisted pair cable from any other module, signal distributor or RDL power inserter connected to the same twisted pair cable. Module power is indicated by a front-panel LED.
RDL Format-A features design simplicity, ease of installation, unmatched flexibility, automatic fused power, exceptional hum rejection, low noise, and low distortion.
