Listen Technologies LS-85-01-WH
Expanded Basic Stationary IR System - White Radiator

OUR PART #:  LS-85-SIR-WH-01

The Listen Technologies Expanded Basic Stationary IR System (LS-85-01-WH: White Radiator) is designed for applications where a variety of listening needs are necessary.
Learn More
Our Price: $2,343.96
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Listen Technologies LS-85-01-WH
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Listen Technologies Expanded Basic Stationary IR System (LS-85-01-WH: White Radiator) is designed for applications where a variety of listening needs are necessary. This system includes both types of receiver, neckloop, headphone and the transmitter is rack mountable. Custom systems available. Radiator available in both grey or white.

Configurations:
LS-85-01-GY Expanded Basic Stationary IR System -Grey (North America)*
LS-85-02-GY Expanded Basic Stationary IR System -Grey (Asia, UK)*
LS-85-03-GY Expanded Basic Stationary IR System -Grey (Euro)*
LS-85-04-GY Expanded Basic Stationary IR System -Grey (Australia)*
LS-85-01-WH Expanded Basic Stationary IR System -White (North America)*
LS-85-02-WH Expanded Basic Stationary IR System -White (Asia, UK)*
LS-85-03-WH Expanded Basic Stationary IR System -White (Euro)*
LS-85-04-WH Expanded Basic Stationary IR System -White (Australia)*

*01, 02, 03, and 04 designation refers to international plug type (type B, G, C, and I) for the power supply.

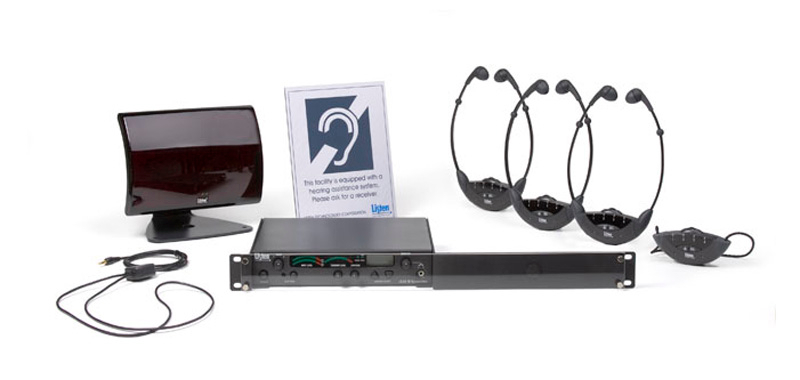

Listen Technologies LS-85-01-WH Includes:

  • One (1) LT-82 Stationary IR Transmitter
  • One (1) LA-326 Universal Rack Mounting Kit
  • One (1) LA-140 Stationary IR Radiator
  • Three (3) LR-42 IR Stethoscope 4-Channel Receiver
  • One (1) LR-44 IR Lanyard 4-Channel Receiver
  • One (1) LA-166 Neck Loop
  • One (1) LA-165 Stereo Headphones
  • Four (4) LA-363 High Capacity AAA Alkaline Batteries (2)
  • One (1) LA-304 Assistive Listening Notification Signage Kit

Listen Technologies LS-85-01-WH Features:

  • Accommodates up to four (4) listeners - great for applications to accommodate a small group
  • Outstanding coverage - 10,000 ft² (929 m²)
  • Secure wireless communication - ideal for applications where isolation of the signal is important
  • Up to four (4) channels mono or stereo - no need to sacrifice multiple channels to achieve stereo transmissions
  • Easy to specify, install and use
  • Outstanding performance ensures crystal clear sound for listeners
  • Shipping Weight: 20.0 lbs. (9.0 kg)

Listen Technologies LS-85-01-WH Architectural Specifications:

  • The LS-85 Expanded Basic Stationary IR System shall use infrared (IR) light to transmit audio from IR emitting radiators to portable IR receivers.
  • The system shall use IR modulating frequencies above 2.0 MHz.
  • The system transmitter shall have a timer that shuts off the carriers after 30 minutes when no audio is present at the transmitter.
  • Channel selection shall be capable of being locked.
  • The system shall be capable of transmitting on four (4) carriers
    • Each of the four (4) carriers shall be capable of transmitting a mono or stereo signal.
  • The system shall have a frequency response of 100 to 15 KHz (+/-3 dB), less than 2% distortion and shall have signal to ratio of greater than 60 dB.
  • A single emitting radiator shall have a transmitting area of no less than 10,000 ft² (929 m²) (one carrier) or greater for each radiator specified.
  • The radiator shall be powered via CAT-5 cabling
    • The RF from the transmitter shall be carried by 50 ohm coaxial cable.
