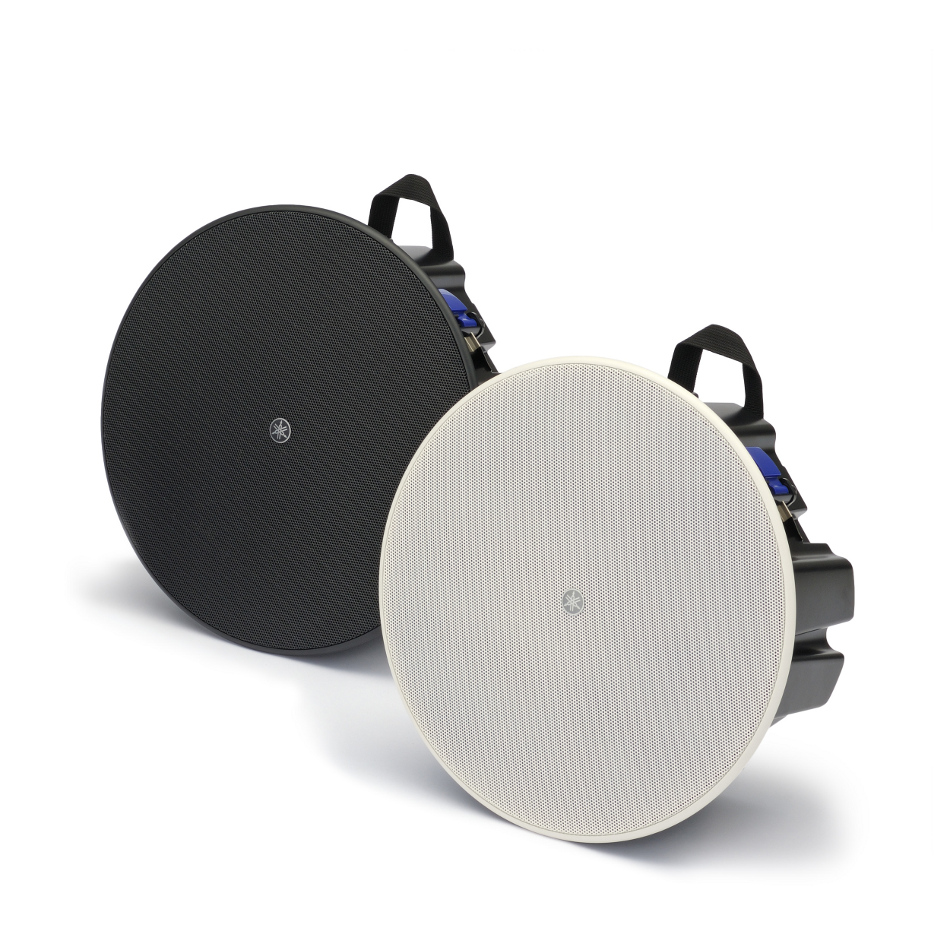

Yamaha VXC3FW
3.5", Full-Range Ceiling Speaker, White

OUR PART #  VXC3FW

Our Price: $139.50
List Price: $164.00
You save 15%! (Low Price Guarantee)

This product must be purchased in multiples of 2

Qty: Special Order Item

Usually ships in 7-14 business days.
Need it sooner? Call us!

Yamaha’s VXC-F low-profile ceiling speakers allow you to streamline the installation process for commercial spaces and seamlessly integrate high-quality audio into a restaurant, retail, or professional environment. Featuring a renovated speaker unit that’s optimally tuned for music playback, the VXC-F’s lightweight construction and flexible design can easily adapt to the strictest installation limitations, ensuring superb audio wherever they’re placed.

Cutting-edge technology in the speaker units and resin enclosures allows an extraordinary degree of acoustic design freedom, resulting in refined, natural music reproduction at any volume level without the midrange distortion that often plagues speakers of this type. The VXC-F's speaker unit size and back box volume have also been matched to achieve well-balanced reproduction from low to high frequencies - even at low output levels.

The VXC-F ceiling speakers feature low profile back boxes, reduced weight, and mechanical features that contribute to significantly safer, faster installation. And since these models support both low-impedance and high-impedance connection, the need for extra stock is minimized and systems can be designed to meet the requirements of any application.

Yamaha VXC3FW Features:

  • 4.5” full-range speaker unit
  • Tailored for optimum BGM reproduction
  • Wide coverage allows a single speaker to cover a widearea
  • Direct support for low-impedance or high-impedanceconnections
  • Low-profile design facilitates installation inlimited ceiling spaces
  • Built-in carrying band increases safety duringinstallation
  • Anti-drop tab mechanism provide secure temporarypositioning during installation
  • Double-threaded speaker clamp screws for speedytightening
  • Paintable grilles with magnetic catches
  • Black version also available
  • 3.1kg (6.8lbs), Ø324 x D143 mm (Ø12-13/16" xD5-11/16")
  • Supplied grilles can be painted any color to match interior décor

Yamaha VXC3FW Specifications:

  • Speaker Type: Full range, Bass reflex
  • Frequency Range (-10 dB): 71 Hz - 20 kHz (Half-space:2TT)
  • Nominal Coverage: 140° conical (Half-space: 2TT)
  • Components (LF/HF): 3.5" Full range unit
  • Power Rating:
    • Noise: 20 W
    • PGM: 40 W
    • PEAK: 80 W
    • Nominal Impedance: 8 Ohm
  • Transformer Taps:
    • 100V: 15W; 7.5W; 3.8W
    • 70V: 15 W; 7.5 W; 3.8 W; 1.9 W
  • SPL:
    • Sensitivity (1 W; 1m on axis): 867 dB SPL (Half-space: 2TT)
    • Peak (Calculated): 106 dB SPL (1m, Calculated based on power rating and sensitivity, exclusive of power compression)
  • I/O Connectors: Euroblock (4 pin) x 1 (input: +/-,loop-thru: +/-)
  • Protection circuit: Full-range power limiting toprotect network and transducers
  • Finish: White (approx. Munsell N9.3)
  • Dimensions:
    • Diameter: 285 (11-1/4")
    • D: 112 mm (4-7/16")
  • Net weight: 2.5 kg (5.5 lbs)
  • Cutout size: Ø247 mm (Ø9-3/4")
  • Required Ceiling Board Thickness: 5 mm - 37 mm
  • Accessories: O-ring, Tile Rail, Cutout Template, EuroBlock (4 pin), Terminal Cover
  • Packaging: Packaged in pairs
  • Certificate: UL1480, NFPA70, CE, EAC, RoHS
  • Others: Conduit tube: Ø15.4 mm - Ø21.3 mm

Yamaha VXC3FW
3.5", Full-Range Ceiling Speaker, White

OUR PART #  VXC3FW

Product Information:

Yamaha’s VXC-F low-profile ceiling speakers allow you to streamline the installation process for commercial spaces and seamlessly integrate high-quality audio into a restaurant, retail, or professional environment. Featuring a renovated speaker unit that’s optimally tuned for music playback, the VXC-F’s lightweight construction and flexible design can easily adapt to the strictest installation limitations, ensuring superb audio wherever they’re placed.

Cutting-edge technology in the speaker units and resin enclosures allows an extraordinary degree of acoustic design freedom, resulting in refined, natural music reproduction at any volume level without the midrange distortion that often plagues speakers of this type. The VXC-F's speaker unit size and back box volume have also been matched to achieve well-balanced reproduction from low to high frequencies - even at low output levels.

The VXC-F ceiling speakers feature low profile back boxes, reduced weight, and mechanical features that contribute to significantly safer, faster installation. And since these models support both low-impedance and high-impedance connection, the need for extra stock is minimized and systems can be designed to meet the requirements of any application.

Yamaha VXC3FW Features:

  • 4.5” full-range speaker unit
  • Tailored for optimum BGM reproduction
  • Wide coverage allows a single speaker to cover a widearea
  • Direct support for low-impedance or high-impedanceconnections
  • Low-profile design facilitates installation inlimited ceiling spaces
  • Built-in carrying band increases safety duringinstallation
  • Anti-drop tab mechanism provide secure temporarypositioning during installation
  • Double-threaded speaker clamp screws for speedytightening
  • Paintable grilles with magnetic catches
  • Black version also available
  • 3.1kg (6.8lbs), Ø324 x D143 mm (Ø12-13/16" xD5-11/16")
  • Supplied grilles can be painted any color to match interior décor

Yamaha VXC3FW Specifications:

  • Speaker Type: Full range, Bass reflex
  • Frequency Range (-10 dB): 71 Hz - 20 kHz (Half-space:2TT)
  • Nominal Coverage: 140° conical (Half-space: 2TT)
  • Components (LF/HF): 3.5" Full range unit
  • Power Rating:
    • Noise: 20 W
    • PGM: 40 W
    • PEAK: 80 W
    • Nominal Impedance: 8 Ohm
  • Transformer Taps:
    • 100V: 15W; 7.5W; 3.8W
    • 70V: 15 W; 7.5 W; 3.8 W; 1.9 W
  • SPL:
    • Sensitivity (1 W; 1m on axis): 867 dB SPL (Half-space: 2TT)
    • Peak (Calculated): 106 dB SPL (1m, Calculated based on power rating and sensitivity, exclusive of power compression)
  • I/O Connectors: Euroblock (4 pin) x 1 (input: +/-,loop-thru: +/-)
  • Protection circuit: Full-range power limiting toprotect network and transducers
  • Finish: White (approx. Munsell N9.3)
  • Dimensions:
    • Diameter: 285 (11-1/4")
    • D: 112 mm (4-7/16")
  • Net weight: 2.5 kg (5.5 lbs)
  • Cutout size: Ø247 mm (Ø9-3/4")
  • Required Ceiling Board Thickness: 5 mm - 37 mm
  • Accessories: O-ring, Tile Rail, Cutout Template, EuroBlock (4 pin), Terminal Cover
  • Packaging: Packaged in pairs
  • Certificate: UL1480, NFPA70, CE, EAC, RoHS
  • Others: Conduit tube: Ø15.4 mm - Ø21.3 mm
