Neutrik NC3MXX-HA-BAG Bulk 3-pin XLRM Connector with Crimp Style

OUR PART #: NC3MXX-HA-BAG MFR #: NC3MXX-HA-BAG

Copied to clipboard

The Neutrik NC3MXX-HA-BAG is a 3-pole male XLR cable connector with black metal housing, silver contacts, and crimp termination (standard B crimp). ...Read more

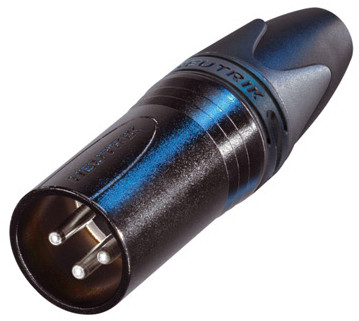

Neutrik NC3MXX-HA-BAG Bulk 3-pin XLRM Connector With Crimp Style Image 1
Neutrik NC3MXX-HA-BAG Bulk 3-pin XLRM Connector With Crimp Style
Our Price: $3.67
List Price: $4.28
You save 14%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$1/mo* with 36 month financing. ‡
Limited Time. Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Neutrik NC3MXX-HA-BAG is a 3-pole male XLR cable connector with black metal housing, silver contacts, and crimp termination (standard B crimp). This is a special version of the XX Series XLR cable connector with crimp terminals.

Neutrik NC3MXX-HA-BAG Features:

  • Crimp termination with standard B-crimp tool (B-crimp acc. IEC 60352-2)
  • Gastight and Solderless connection (RoHS compliant)
  • Male connector with improved locking recess without "window", more stringent housing increases durability
  • Improved chuck-type strain relief provides higher pull-out force and makes assembly easier and faster
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Colored rings and boots available for coding or identification (see above)
  • Rugged zinc diecast shell, longlasting and dependable
  • Branded with unique hologram - guarantees genuine and authentic Neutrik product

Neutrik NC3MXX-HA-BAG Specifications:

  • Connection Type: XLR
  • Gender: Male
  • Electrical:
    • Capacitance between contacts: < /= 4 pF
    • Contact resistance: < /= 3 mOhm (inner)
    • Dielectric strength: 1.5 kVdc
    • Insulation resistance: > 10 GOhm (initial)
    • Rated current per contact: 1 A
    • Rated voltage: < 50 V
  • Mechanical:
    • Cable O.D.: 3.5 - 8.0 mm
    • Insertion force: < /= 20 N
    • Withdrawal force: < /= 20 N
    • Lifetime: > 1000 mating cycles
    • Wiresize: 0.22 - 0.34 mm²
    • Wiresize: 24 - 22 AWG
    • Wiring: Crimp contacts
    • Locking device: Latch lock
  • Material:
    • Boot: Polyurethane
    • Contact plating: 2 µm Ag
    • Contacts: Brass (CuZn39Pb3)
    • Insert: Polyamide (PA 6.6 30 % GR)
    • Locking element: Zinc diecast (ZnAl4Cu1)
    • Shell: Zinc diecast (ZnAl4Cu1)
    • Shell plating: Black chromium
    • Strain relief: Polyacetal (POM)
  • Environmental:
    • Flammability: UL 94 HB
    • Standard compliance: IEC 61076-2-103
    • Protection class: IP 40
    • Solderability: Complies with IEC 68-2-20
    • Temperature range: -30 °C to +80 °C
