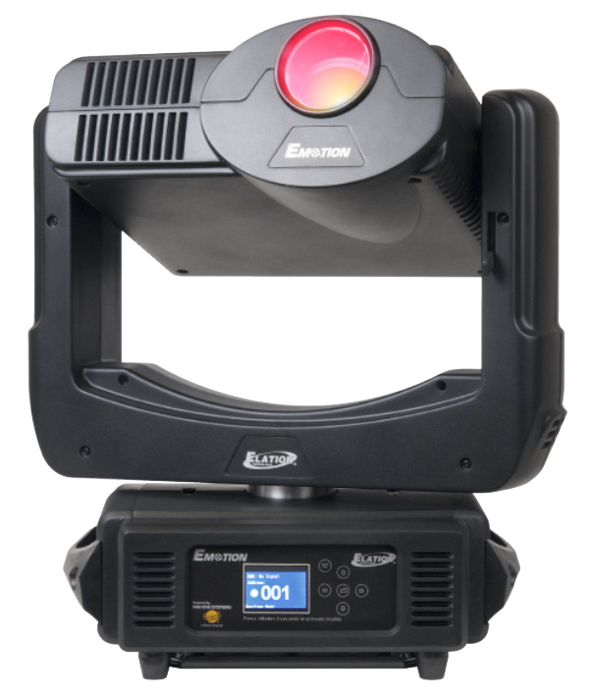

Elation Pro Lighting EMOTION
240W Moving Head Light Fixture with 64GB Media Server

OUR PART #:  EMOTION

Similar Products

The EMOTION™ from Elation is a compact high output lightweight plug and play digital projector moving head lighting fixture featuring the Osram 240W UHP >80CRI 6,700K lamp producing 4,000 ANSI lumens and native 1024 x 768 support. Key features include an internal 64GB solid-state hard drive media server with royalty free digital gobo and video images, live background effects and allows custom content to be easily uploaded remotely via the CMA application. Included Collage Generator™ allows for seamless projection arrays (2-16 fixtures) and variable edge blending. CMY and RGB color mixing, digital and optical zoom, motorized focus, mechanical shutter, dimmer, 540° pan, and 240° tilt control via DMX / Art-NET, (2) USB ports, 5pin DMX, RJ45 EtherCON, and powerCON in/out, and a multi-voltage universal auto switching power supply (100-240v).

Elation EMOTION Features:

  • Compact High Output Digital Projector Moving Head
  • Osram 240W UHP Lamp - 3,000 Average Hour Lamp Life
  • 4,000 ANSI Lumens / Native 1024 x 768 (XGA) DLP / DMD
  • Internal 64GB Solid-State Hard Drive Media Server
  • Elation Gobo Catalog Included (Royalty Free)
  • 255 Video Images Included (Royalty Free)
  • 40 Live / Background Effects and Color Control
  • Easy Custom Content Upload via CMA Application
  • DMX Control via 5pin DMX or Ar-NET
  • Digital and Optical Zoom / Motorized Focus
  • CMY + RGB Color Mixing / Mechanical Shutter / Dimmer
  • Collage Generator™
  • Variable Edge Blending

Elation EMOTION Specifications:

  • Osram UHP 240W Lamp
  • 4,000 ANSI Lumens, >80CRI 6,700K
  • 3,000 Hour Average Lamp Life (6,000 Horus ECO Mode)
  • Aspect Ratio: 4:3 Native
  • Resolution: XGA 1074 x 768
  • Image Size 30” to 307”
  • Projection Distance: 3.9’ (1.2m) - 32.8’ (10m)
  • Contrast Ratio: 15,000 : 1
  • Display Technology: DLP DMD Chip
  • 1 Billion Colors (10bit)
  • Effects:
    • Digital and Optical Zoom
    • Motorized Focus
    • CMY / RGB Color Mixing
    • Mechanical Shutter / Dimmer
    • Elation Gobo Catalog (Royalty Free)
    • 255 Video Images (Royalty Free)
    • 40 LIve / Background Effects and Color Control
    • 28 Transition Effects Between Layers
  • COLLAGE GENERATOR™ Software (included):
    • This effect enables multiple Elation EMOTION™ fixtures to create an array of seamless projections using from 2-16 fixtures. The effect can create vertical, horizontal and central panoramic configurations controlled from a DMX console. Stock, custom, and custom HD Collage Generator™ content can all be displayed in Collage Mode.
  • Variable Edge Blending:
    • On-the-Fly adjustment of blend overlap between multiple projectors when used in conjunction with any of the Collage Generator™ Modes. Using this mode gives more flexibility for sizing a collage to a given screen or projection surface, as well as smoother blending if wider blend regions are used.
  • Control / Connections:
    • (30) DMX Channels
    • Dual Layer Media Content Control
    • 6 Button Touch Control Panel
    • Full Color 180° Reversible LCD Menu Display
    • (2) USB Ports
    • 5pin DMX In/Out
    • RJ45 Ethernet In/Out (Art-NET)
    • powerCON Power In/Out
  • Size / Weight:
    • Dimensions (LxWxH): 18.9” x 15.0” x 22.4” (480 x 382 x 569mm)
    • Weight: 44.0 lbs. (20 kg)
  • Electrical / Thermal:
    • AC 100-240V - 50/60Hz
    • Approvals / Ratings:
    • CE | IP20
  • Installation:
    • Rigging: Clamps (Not Included)
    • Working Position: Flat Surface / Inverted (180°)

NOTE: Specifications and documentation for this fixture are subject to change without notice.
