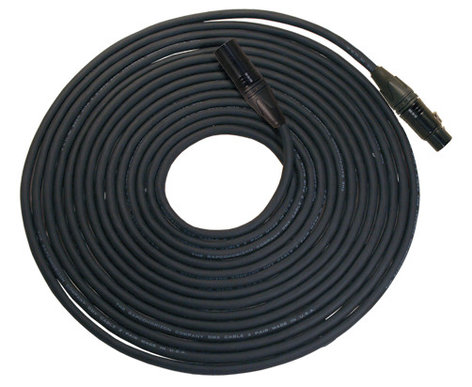

RapcoHorizon Music NBGDMX3-100
3-Pin DMX Digital Cable, 100ft

OUR PART #  NBGDMX3-100

Our Price: $37.71
List Price: $79.39
You save 53%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

RapcoHorizon's NBGDMX3-100 is a 100ft length of their single-pair DMX cable, made with 24 gauge conductors, and commonly used for controlling stage lighting and effects. It can also be employed to link special effects devices, like fog machines, moving lights, and more advanced fixtures as well. All RapcoHorizon DMX cables are soldered by trained personnel right in their facilities.

RapcoHorizon NBGDMX3-100 Features:

  • Utilizing an overall aluminum/polyester shield and 24 awg 7/32 T.C. drain wire
  • Black matte PVC jacket is very flexible yet durable
  • Quality metal Rapcohorizon, Neutrik, or Switchcraft connectors
  • Individually tested for performance and quality

RapcoHorizon NBGDMX3-100 Specifications:

  • Length: 100ft
  • Cable: DMX-1PR
  • Conductor Gauge: 24 gauge, 1 pair
  • Shield: Overall aluminum/polyester and 24 awg 7/32 T.C. drain wire
  • Jacket: Matte PVC
  • O.D.: 0.210"
  • Capacitance: 13.5 pF/ft. @ 1 kHz
  • Cond.-Shield Capacitance: 25 pF/ft. @ 1 kHz
  • Characteristic Impedance: 110 Ohms NOMINAL
  • D.C. Resistance @ 20°C: 25.4 Ohms/1000'

RapcoHorizon Music NBGDMX3-100
3-Pin DMX Digital Cable, 100ft

OUR PART #  NBGDMX3-100

Product Information:

RapcoHorizon's NBGDMX3-100 is a 100ft length of their single-pair DMX cable, made with 24 gauge conductors, and commonly used for controlling stage lighting and effects. It can also be employed to link special effects devices, like fog machines, moving lights, and more advanced fixtures as well. All RapcoHorizon DMX cables are soldered by trained personnel right in their facilities.

RapcoHorizon NBGDMX3-100 Features:

  • Utilizing an overall aluminum/polyester shield and 24 awg 7/32 T.C. drain wire
  • Black matte PVC jacket is very flexible yet durable
  • Quality metal Rapcohorizon, Neutrik, or Switchcraft connectors
  • Individually tested for performance and quality

RapcoHorizon NBGDMX3-100 Specifications:

  • Length: 100ft
  • Cable: DMX-1PR
  • Conductor Gauge: 24 gauge, 1 pair
  • Shield: Overall aluminum/polyester and 24 awg 7/32 T.C. drain wire
  • Jacket: Matte PVC
  • O.D.: 0.210"
  • Capacitance: 13.5 pF/ft. @ 1 kHz
  • Cond.-Shield Capacitance: 25 pF/ft. @ 1 kHz
  • Characteristic Impedance: 110 Ohms NOMINAL
  • D.C. Resistance @ 20°C: 25.4 Ohms/1000'
