RapcoHorizon Music NBGDMX3-50
3-Pin DMX Digital Cable, 50ft


RapcoHorizon's NBGDMX3-50, a 50ft length of their single-pair DMX cable, is made with 24 gauge conductors...
Learn More
Our Price: $26.84
List Price: $56.49
You save 52%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


RapcoHorizon Music NBGDMX3-50
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

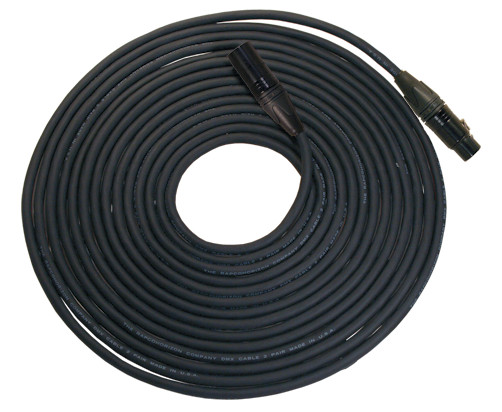

RapcoHorizon's NBGDMX3-50, a 50ft length of their single-pair DMX cable, is made with 24 gauge conductors, and is commonly used for controlling stage lighting and effects, along with being employed to link special effects devices like fog machines, moving lights, plus more advanced fixtures as well. All of RapcoHorizon's DMX cables are soldered by trained personnel right in their facilities.

RapcoHorizon's NBGDMX3-50 Features:

  • Utilizing an overall aluminum/polyester shield and 24 awg 7/32 T.C. drain wire
  • Black matte PVC jacket is very flexible yet durable
  • Quality metal Rapcohorizon, Neutrik, or Switchcraft connectors
  • Individually tested for performance and quality

RapcoHorizon NBGDMX3-50 Specifications:

  • Length: 50ft
  • Cable: DMX-1PR
  • Conductor Gauge: 24 gauge, 1 pair
  • Shield: Overall aluminum/polyester and 24 awg 7/32 T.C. drain wire
  • Jacket: Matte PVC
  • O.D.: 0.210"
  • Capacitance: 13.5 pF/ft. @ 1 kHz
  • Cond.-Shield Capacitance: 25 pF/ft. @ 1 kHz
  • Characteristic Impedance: 110 Ohms NOMINAL
  • D.C. Resistance @ 20┬░C: 25.4 Ohms/1000'
