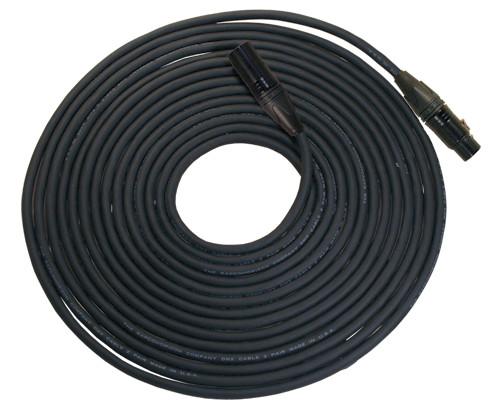

RapcoHorizon Music NBGDMX3-25
3-Pin DMX Digital Cable, 25ft

OUR PART #  NBGDMX3-25

Our Price: $21.02
List Price: $44.24
You save 52%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

RapcoHorizon's NBGDMX3-25 is a 25ft length of their single-pair DMX cable, made with 24 gauge conductors, and commonly used for controlling stage lighting and effects. It can be used to link special effects devices, such as fog machines, moving lights, and more advanced fixtures as well. Like all RapcoHorizon DMX cables, this particular unit is soldered by trained personnel right in their facilities.

RapcoHorizon's NBGDMX3-25 Features:

  • Utilizing an overall aluminum/polyester shield and 24 awg 7/32 T.C. drain wire
  • Black matte PVC jacket is very flexible yet durable
  • Quality metal Rapcohorizon, Neutrik, or Switchcraft connectors
  • Individually tested for performance and quality

RapcoHorizon NBGDMX3-25 Specifications:

  • Length: 25ft
  • Cable: DMX-1PR
  • Conductor Gauge: 24 gauge, 1 pair
  • Shield: Overall aluminum/polyester and 24 awg 7/32 T.C. drain wire
  • Jacket: Matte PVC
  • O.D.: 0.210"
  • Capacitance: 13.5 pF/ft. @ 1 kHz
  • Cond.-Shield Capacitance: 25 pF/ft. @ 1 kHz
  • Characteristic Impedance: 110 Ohms NOMINAL
  • D.C. Resistance @ 20°C: 25.4 Ohms/1000'

RapcoHorizon Music NBGDMX3-25
3-Pin DMX Digital Cable, 25ft

OUR PART #  NBGDMX3-25

Product Information:

RapcoHorizon's NBGDMX3-25 is a 25ft length of their single-pair DMX cable, made with 24 gauge conductors, and commonly used for controlling stage lighting and effects. It can be used to link special effects devices, such as fog machines, moving lights, and more advanced fixtures as well. Like all RapcoHorizon DMX cables, this particular unit is soldered by trained personnel right in their facilities.

RapcoHorizon's NBGDMX3-25 Features:

  • Utilizing an overall aluminum/polyester shield and 24 awg 7/32 T.C. drain wire
  • Black matte PVC jacket is very flexible yet durable
  • Quality metal Rapcohorizon, Neutrik, or Switchcraft connectors
  • Individually tested for performance and quality

RapcoHorizon NBGDMX3-25 Specifications:

  • Length: 25ft
  • Cable: DMX-1PR
  • Conductor Gauge: 24 gauge, 1 pair
  • Shield: Overall aluminum/polyester and 24 awg 7/32 T.C. drain wire
  • Jacket: Matte PVC
  • O.D.: 0.210"
  • Capacitance: 13.5 pF/ft. @ 1 kHz
  • Cond.-Shield Capacitance: 25 pF/ft. @ 1 kHz
  • Characteristic Impedance: 110 Ohms NOMINAL
  • D.C. Resistance @ 20°C: 25.4 Ohms/1000'
