RapcoHorizon Music NBGDMX3-3
3-Pin DMX Digital Cable, 3ft

OUR PART #:  NBGDMX3-3

Soldered by trained personnel right in their facilities, RapcoHorizon's NBGDMX3-3 is a 3ft length of their single-pair DMX cable, made with 24 gauge conductors...
Learn More
Our Price: $16.82
List Price: $35.40
You save 52%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

RapcoHorizon Music NBGDMX3-3
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

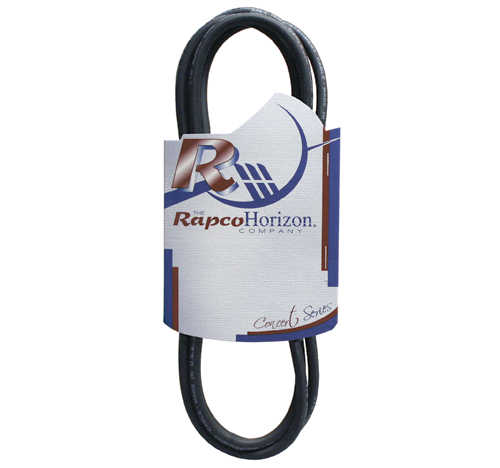

Soldered by trained personnel right in their facilities, RapcoHorizon's NBGDMX3-3 is a 3ft length of their single-pair DMX cable, made with 24 gauge conductors, and commonly used for controlling stage lighting and effects. It can also be used for linking special effects devices, such as fog machines, moving lights, and more advanced fixtures as well.

RapcoHorizon's NBGDMX3-3 Features:

  • Utilizing an overall aluminum/polyester shield and 24 awg 7/32 T.C. drain wire
  • Black matte PVC jacket is very flexible yet durable
  • Quality metal Rapcohorizon, Neutrik, or Switchcraft connectors
  • Individually tested for performance and quality

RapcoHorizon NBGDMX3-3 Specifications:

  • Length: 3ft
  • Cable: DMX-1PR
  • Conductor Gauge: 24 gauge, 1 pair
  • Shield: Overall aluminum/polyester and 24 awg 7/32 T.C. drain wire
  • Jacket: Matte PVC
  • O.D.: 0.210"
  • Capacitance: 13.5 pF/ft. @ 1 kHz
  • Cond.-Shield Capacitance: 25 pF/ft. @ 1 kHz
  • Characteristic Impedance: 110 Ohms NOMINAL
  • D.C. Resistance @ 20┬░C: 25.4 Ohms/1000'
