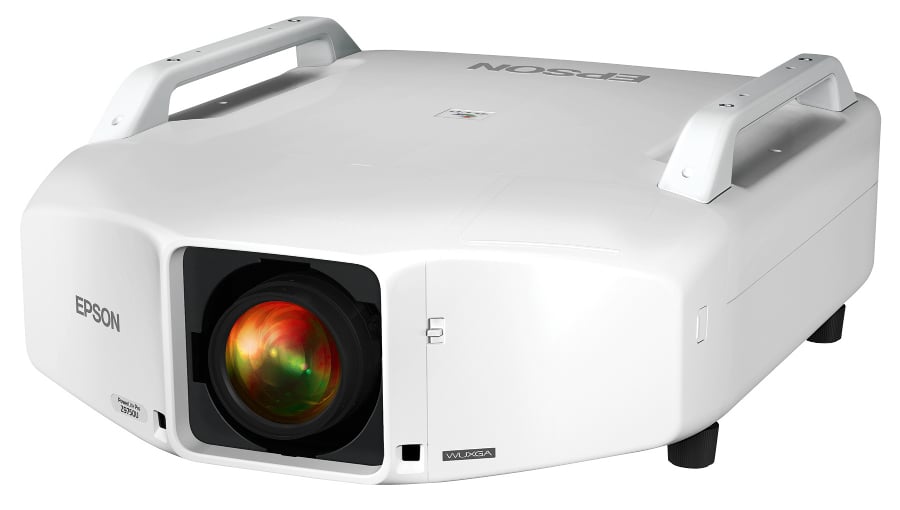

Epson PowerLite Pro Z9750UNL
7500 Lumens WUXGA 3LCD Large Venue Projector

OUR PART #:  PRO-Z9750UNL

The PowerLite Pro Z9750UNL projector from Epson combines bright projection with Full HD, WUXGA performance — perfect for installation in auditoriums...
Learn More
Epson PowerLite Pro Z9750UNL - Reverse Angled View
Epson PowerLite Pro Z9750UNL - Rear View
Epson PowerLite Pro Z9750UNL - Front View

Click a thumbnail to see more images. (6 total)

Call for price! Not available online.
List Price: $13,999.00

Similar Products

The PowerLite Pro Z9750UNL projector from Epson combines bright projection with Full HD, WUXGA performance — perfect for installation in auditoriums, lecture halls and other large venues. Offering 3x Brighter Colors* than competitive models, Epson projectors ensure vivid images. With 7,500 lumens of color brightness and 7,500 lumens of white brightness1, the Z9750UNL makes content shine, even in high ambient light. Featuring 3LCD, 3-chip technology and an array of connectivity options — including HDBaseTTM — this powerful performer delivers uncompromised image quality and professional-grade reliability. And, installation has never been more flexible, with seven optional lenses, lens shift, Curved Edge Blending, Portrait Mode and 360-degree projection features.

Epson PowerLite Pro Z9750UNL Includes:

  • PowerLite Pro Z9750UNL projector
  • Power cable
  • Computer cable
  • Projector remote control
  • Batteries
  • Cable cover
  • User manual CD
  • Quick Setup Sheet
  • PrivateLine support card
  • Password protection sticker
  • Monitor and Control CD

Epson PowerLite Pro Z9750UNL Features:

  • 3x Brighter Colors and reliable performance — 3LCD, 3-chip technology*
  • One measurement of brightness is not enough — look for both high color brightness and high white brightness.
  • The PowerLite Pro Z9750UNL has:
  • Color Brightness: 7,500 lumens1
  • White Brightness: 7,500 lumens1
  • Widescreen, high-definition performance — WUXGA (1920x 1200) resolution supports Full HD for presentations, videos, digital signage and more
  • Edge Blending - Use multiple projectors to overlap images, and there are no bright spots where the overlap occurs, providing dynamic, seamless projection.
  • Portrait Mode - Allows you to turn the projector 90 degrees and use it in "portrait" mode. Great for digital signage, fashion shows, art galleries and museums.
  • Seven optional lenses with lens shift — including short-, wide-, rear- and long-throw lenses designed with a change-out lever for easy installation
  • Flexible installation for immersive experiences in any setting — built-in Curved Edge Blending, Portrait Mode projection, and 360-degree installation
  • Get twice the brightness and power — optional stackable frame makes it easy to install two projectors for unbelievable brightness, plus 3D support
  • Versatile connectivity — supports the latest connectivity options, including HDBaseT, HDMITM and DVI
  • Dual-lamp design with lamp select/relay function — get both power savings and projector redundancy; includes an innovative liquid cooling system for added reliability
  • Split Screen feature — project two images (video or still) side-by-side from two different sources simultaneously2
  • Convenient monitor and control features —easily manage the projector, either directly or remotely; compatible with AMX®, Crestron® and Extron®

Epson PowerLite Pro Z9750UNL Specifications:

  • Model: V11H616920
  • Projection System: High-aperture Epson 3-chip 3LCD
  • Projection Method: Front / rear / ceiling mount
  • LCD Driving Method: Epson Poly-silicon TFT Active Matrix
  • Pixel Number: 2,304,000 pixels x 3LCDs
  • Native Resolution: WUXGA (1920 x 1200)
  • Color Brightness: 7,500 lumens1
  • White Brightness: 7,500 lumens1
  • Aspect Ratio: Native 16:10 (supports 4:3, 16:9, 5:4)
  • Native Resolution: WUXGA (1920 x 1200)
  • Contrast Ratio: Normal, Dynamic Mode: Up to 15,000:1
  • Color Reproduction: Up to 1.07 billion colors
  • Color Processing: 10 bit
  • Lamp Type:
    • Normal: 380 W x 2 UHE
    • Portrait: 304 W x 2 UHE
  • Lamp Life:
    • Normal:
      • ECO mode: Up to 4000 hours2
      • Normal mode: Up to 2000 hours2
    • Portrait:
      • Normal mode: Up to 1000 hours2
  • Brightness Uniformity: 90%
  • Pixel Arrangement: Cross stripe
  • Projection Lens:
    • Screen Throw Ratio Range : 1.74 – 2.82 (standard lens)
    • Size (projected distance): 60" – 500"
    • Type: Powered zoom / focus
    • F-number: 1.65 – 2.51 (standard lens), lens not included
    • Focal Length: 36 mm – 57.35 mm (standard lens)
    • Zoom Ratio: Optical zoom 1.0 – 1.61 (standard lens)
    • Lens Shift:
      • Powered:
        • Vertical: ±60%
        • Horizontal: ±18%
    • Keystone Correction:
      • Vertical: -30 degrees to +30 degrees
      • Horizontal: -30 degrees to +30 degrees
  • Video:
    • Video Standards:
      • Analog: NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60/ SECAM
      • HDMI: 480i / 576i / 480p / 576p / 720p /1080i / 1080p
      • DVI-D: 480i / 576i / 480p / 576p / 720p / 1080i /1080p
    • Video Processing:
      • 3D Y/C separation, 3D noise reduction, mosquito noise reduction
      • DCDi — Directional Correlational DeinterlacingMotion-compensated Interlace-Progressive conversion (2:2, 3:2 film detection)
    • Super Resolution:
      • FineFrame Interpolation
      • 8:8 Pull-down Processing
      • Closed Captioning
  • Interfaces:
    • Inputs:
      • HDMI x 1
      • DVI-D x 1
      • HDBase-T x 1
    • Computer: D-sub 15 pin x 2
    • Video: BNC x 5
    • Composite Video: BNC x 1
    • Wired Network: RJ-45 x 1
    • Wireless Network: Optional
    • Serial: Rs-232c x 1
    • Hardwired Remote Jack x 1
    • Monitor-Out: D-sub 15 pin x 1
    • USB Type-A: For wireless only
    • USB Type-B: For service only
  • Networking:
    • Connectivity:
      • Wired: Integrated 100Mbps
      • Wireless: Optional — 802.11b/g/n
      • Wireless Security: WPA-PSK (TKIP/AES) /WPA2-PSK (TKIP/AES)
      • E-mail Notification: via network
      • Message Broadcasting: SNMP
      • Web Control: Secure HTTP
      • Remote Control and Management:
      • Epson EasyMP® Monitor
      • Network projection
      • Multi-projection
      • AMX® Device Discovery
      • Crestron® Integrated Partner and Crestron RoomView®
      • Extron® IP Link and XTP
      • PJLink
  • Other Specifications:
    • Speaker: None
    • Audio Output: None
    • Operating Temperature:
      • Normal: 32° to 122° F (0° to 50° C)
      • Above 4900 feet: 32° to 104° F (0° to 40° C)
    • Power Supply Voltage: 100 – 240 V ±10%, 50/60 Hz AC
    • Power Consumption:
      • ECO mode: 748 W
      • Normal mode: 844 W
      • Communication on: 2.7 W standby
      • Communication off: 0.26 W standby
    • Fan Noise:
      • ECO mode: 35 dB
      • Normal mode: 37 dB
    • Security: Kensington®- style lock provision, anchor (metal) bar for security lock or cable, handles attached to body for cablewrap
  • Dimensions (W x D x H):
    • Including feet (with standard lens): 21.02" x 29.17"x 10.04" (W x D x H)
    • Excluding feet (with standard lens): 21.02" x 29.17"x 7.76" (W x D x H)
    • Weight (with standard lens): 58 lb
  • Remote Control:
    • Features: Brightness, contrast, tint, saturation, sharpness, input signal, sync, tracking, position, zoom, focus, lens shift, shutter, ID, source search, split screen
    • Operating Angle:
      • Front:
        • Right / Left: ±60 degrees
        • Upper / Lower: -45 to +15 degrees
      • Rear:
        • Right / Left: ±60 degrees
        • Upper / Lower: -40 to +15 degrees
    • Operating Distance: 98 ft

NOTES:

  • * Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions. Leading Epson 3LCD business and education projectors compared to leading 1-chip DLP projectors, based on NPD data for June 2013 through May 2014 and PMA Research data for Q1 through Q3 2013.
  • 1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
  • 2 Consult your user manual for input combinations.
