EAW-Eastern Acoustic Wrks RL18S
18" Active Subwoofer

OUR PART #:  RL-18S

The design of EAW's Redline series - a family of powered loudspeakers - is targeted to make life easier for live sound professionals, from corporate events to festivals.
Learn More

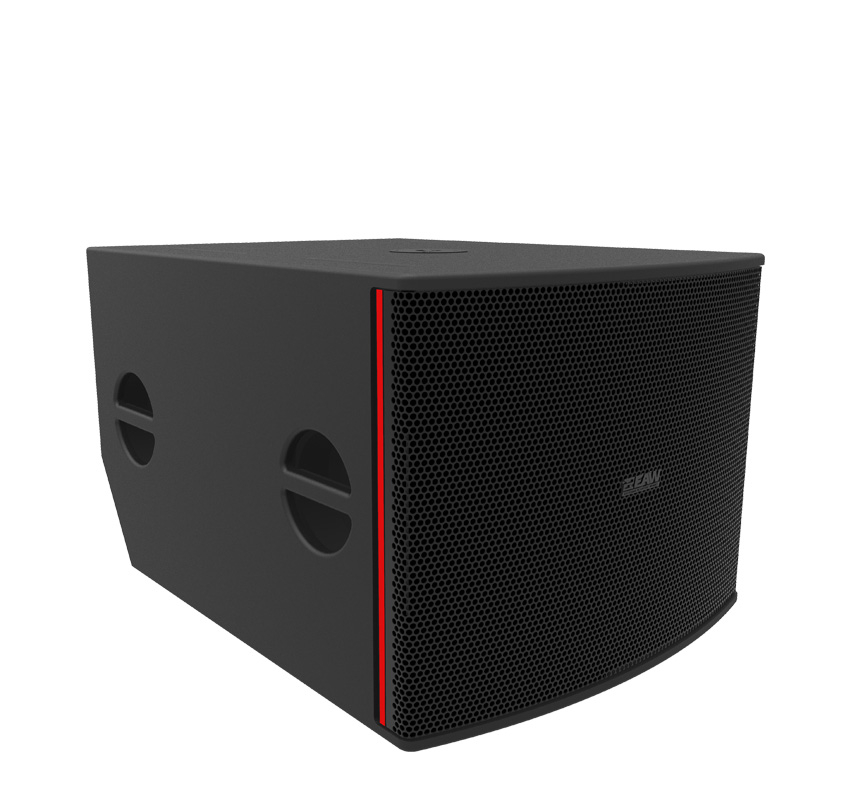

EAW RL-18S Top Angle View
EAW RL-18S Side Angle View
EAW RL-18S Front View

Click a thumbnail to see more images. (5 total)

Our Price: $2,995.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

EAW-Eastern Acoustic Wrks RL18S
Qty:
In Stock

Similar Products

The design of EAW's Redline series - a family of powered loudspeakers - is targeted to make life easier for live sound professionals, from corporate events to festivals.

The RL18S includes a complete on-board 1,000-watt electronics package mated to a highly-customized precision transducer. In addition to signature EAW acoustical design, DynO™ algorithms optimize the power transfer from amplifiers to transducers to audience, to optimize headroom and integrity of sound at maximum output. Push-button cardioid functionality (using two or more RL18S subwoofers) keeps low-frequency energy off the stage and on the audience, and a rear-panel LED mute keeps Redline invisible in aesthetically-sensitive situations.

The RL18S enclosure incorporates EAW’s signature SB enclosure rear angle to minimize input panel visibility in cardioid mode, integral road glove-ready wood handles and sleek but strong-sculpted grilles on RoadCoat™ enclosures that can take a beating without showing it.

EAW RL-18S Features:

  • Superb sound quality at any output level due to custom-designed transducers and porting, signature EAW Focusing™ and DynO™ dynamic optimization processing and 1,250 watts of bi-amplified Class-D Power Factor Corrected amplification
  • Road-ready EAW Roadcoat™ wooden enclosure with integral glove-ready handles, pole cup and M8 suspension points
  • Enclosure depth is optimized so that, with one subwoofer rotated, cardioid pattern can be generated in seconds with two button presses
  • Recessed input panel with push-button cardioid functionality, rear-panelLED mute function, robust PowerCon inlet and loop connectors and LED mutefunction for visually-sensitive environments

EAW Rl-18S Specifications:

  • Configuration
    • Subsystem
      • Transducers: 1× 18"; 4" voice coil cone
      • Loading: Vented
      • Operating Mode: Single Amp
      • Signal Processing: DSP w/DynO™
  • Acoustical Performance
    • Operating Range: 30 Hz to 160 kHz
    • Nominal Beamwidth:
      • Horizontal 360°
      • Vertical 360°
    • Axial Output Limit Peak (whole space): VLF 127 dB
    • Axial Output Limit Long Term (whole space): VLF 121 dB
  • Electrical Performance
    • Input: Electronically balanced XLRF
    • Loop: Electronicallly balanced XLRM
    • Amplifier:
      • Class D
      • 1000 W @ 8 ohm
      • Integral DSP limiting
    • AC Mains (nominal):
      • Neutrik PowerCon
      • 50 Hz to 60 Hz
      • 100V to 240V
    • Indicators (LED):
      • Amplifier Status
      • Signal Present
      • Limiter Active
      • Clip
      • Mode 3x
