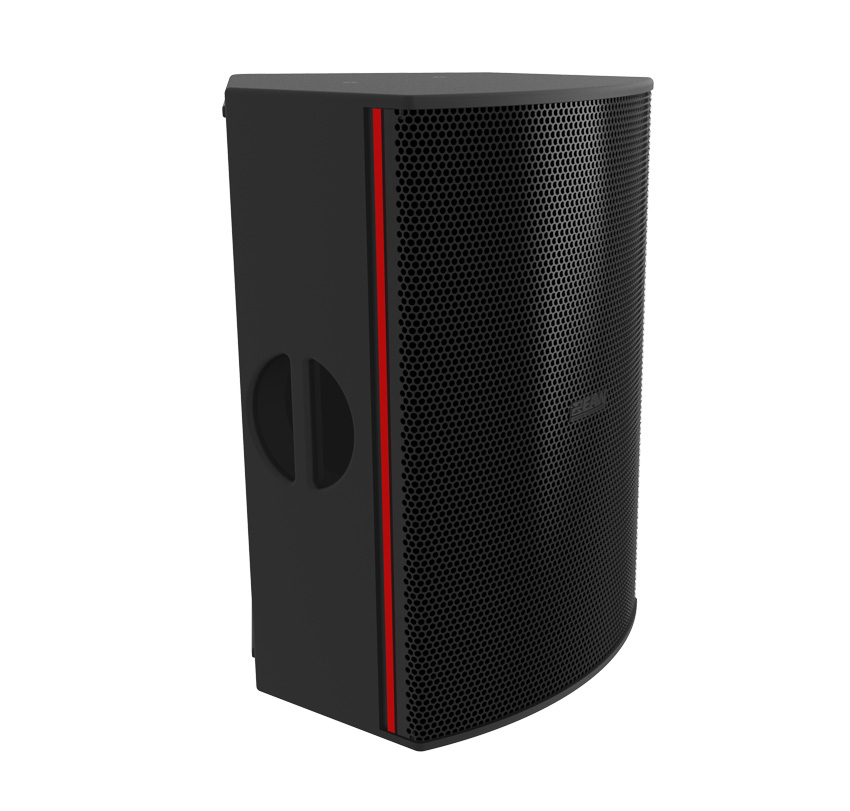

EAW-Eastern Acoustic Wrks RL15
2-Way, 15" Self Powered Loudspeaker

OUR PART #:  RL-15

The design of EAW's Redline series - a family of powered loudspeakers - is targeted to make life easier for live sound professionals, from corporate events to festivals.
Learn More
EAW-Eastern Acoustic Wrks RL-15 1
EAW-Eastern Acoustic Wrks RL-15 2
EAW-Eastern Acoustic Wrks RL-15 3
EAW-Eastern Acoustic Wrks RL-15 4
Our Price: $2,394.00
Write the first review.
EAW-Eastern Acoustic Wrks RL15
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The design of EAW's Redline series - a family of powered loudspeakers - is targeted to make life easier for live sound professionals, from corporate events to festivals.

This RL15 model includes a complete on-board 1,250-watt bi-amplified electronics package mated to highly-customized precision transducers engineered to meet the specific demands of the Redline family. Redline features renowned EAW Focusing™ processing to deliver the impulse response of a studio monitor, while DynO™ algorithms optimize the power transfer from amplifiers to transducers to audience, to optimize headroom and integrity of sound at maximum output.

Both the RL12 and RL15 models offer consistent directivity via Beamwidth-Matched Crossovers on 90°x60° user-rotatable horns, and 4-aperture elliptical ports provide huge bass support with no turbulence while maximizing transducer-cooling air flow. Three simple pre-defined voicings help users set up in minutes while sounding like they’ve tuned for hours, and a rear-panel LED mute keeps Redline invisible in stealthy situations.

The speakers' enclosures incorporate symmetrical monitor angles to form left-right wedge pairs, integral road glove-ready wood handles and sleek but strong sculpted grilles on RoadCoat™ enclosures that can take a beating without showing it.

EAW RL15 Features:

  • Superb sound quality at any output level due tocustom-designed transducers and porting, signature EAW Focusing™ and DynO™dynamic optimization processing and 1,250 watts of bi-amplified Class-DPower Factor Corrected amplification
  • Road-ready EAW Roadcoat™ wooden enclosure withintegral glove-ready handles, pole cup and M8 suspension points
  • Symmetrical monitor angles with swappable rear panelsto form mirror-image monitor pairs
  • Recessed input panel with three pre-tuned gig-ready voicings, rear-panel LED mute function, robust PowerCon inlet and loop connectors and LED mutefunction for visually-sensitive environments

EAW RL15 Specifications:

  • Configuration
    • Subsystem
      • Transducers:
        • LF: 1 x 15" cone
        • HF: 1 x 1" exit, 1.75" voice coil compression driver
      • Loading
        • LF: Vented
        • HF: Horn-loaded
      • Operating Mode: Bi-amp LF, HF
      • Signal Processing: DSP w/ EAW Focusing™ and DynO™
  • Acoustical Performance
    • Operating Range: 50 Hz to 19 kHz
    • Nominal Beamwidth (rotatable)
      • Horizontal 90°
      • Vertical 60°
    • Axial Output Limit Peak: LF/HF, 135 dB
    • Axial Output Limit Long Term: LF/HF, 129 dB
  • Electrical Performance
    • Input: Electronically balanced XLRF
    • Loop: Electronicallly balanced XLRM
    • Amplifier:
      • LF
        • Class D
        • 1000 W @ 8 ohm
        • Integral DSP limiting
      • HF
        • Class D
        • 250 W @ 8 ohm
        • Integral DSP limiting
      • AC Mains (nominal):
        • Neutrik PowerCon
        • 50 Hz to 60 Hz
        • 100V to 240V
      • Indicators (LED):
        • Amplifier Status
        • Signal Present
        • Limiter Active
        • Clip
        • Voicing Mode 3x
