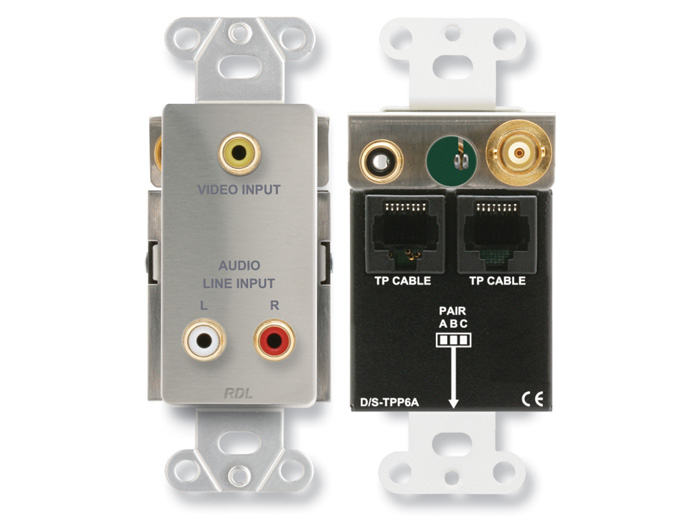

Radio Design Labs DS-TPP6A
Format-A D-TPS6A with Video Pass Thru

OUR PART #  DS-TPP6A

Our Price: $84.87
List Price: $113.51
You save 25%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Radio Design Labs -TPS6A is a single-pair sender, feeding the input signal to the cable pair set on the front-panel switch during installation. This module drives only one cable pair, therefore a TP CABLE RJ45 jack is provided to accept signals  and power from other mic-level or line-level Format-A senders. Two other single-pair senders may be chained to a  TP CABLE jack, or a single two-pair sender may be connected.  If three single-pair senders are connected  together, each sender must feed a different pair: A, B or C.

The -TPS6A must be set to feed pair A if it is connected together with an RDL two-pair senderthat feeds stereo audio on pairs B and C.  The -TPS6A is a passive module that does not require power to operate. If power is present on a cable connected to a TP CABLE jack, that power is passed through to the modules connected to the other TP CABLE jack.  The D-TPP6A is the same as the D-TPS6A but  includes a connection for video pass through.

Radio Design Labs DS-TPP6A Features:

  • D-TPS6A or DS-TPS6A Format-A Audio Sender
  • Video Pass-Through with RCA Jack on Front Panel
  • Video Pass-Through with RCA and BNC Jack on Rear Panel
  • Available in RDL White/Gray (D-TPP6A)
  • Available in Stainless Steel (DS-TPP6A)

Radio Design Labs DS-TPP6A
Format-A D-TPS6A with Video Pass Thru

OUR PART #  DS-TPP6A

Product Information:

The Radio Design Labs -TPS6A is a single-pair sender, feeding the input signal to the cable pair set on the front-panel switch during installation. This module drives only one cable pair, therefore a TP CABLE RJ45 jack is provided to accept signals  and power from other mic-level or line-level Format-A senders. Two other single-pair senders may be chained to a  TP CABLE jack, or a single two-pair sender may be connected.  If three single-pair senders are connected  together, each sender must feed a different pair: A, B or C.

The -TPS6A must be set to feed pair A if it is connected together with an RDL two-pair senderthat feeds stereo audio on pairs B and C.  The -TPS6A is a passive module that does not require power to operate. If power is present on a cable connected to a TP CABLE jack, that power is passed through to the modules connected to the other TP CABLE jack.  The D-TPP6A is the same as the D-TPS6A but  includes a connection for video pass through.

Radio Design Labs DS-TPP6A Features:

  • D-TPS6A or DS-TPS6A Format-A Audio Sender
  • Video Pass-Through with RCA Jack on Front Panel
  • Video Pass-Through with RCA and BNC Jack on Rear Panel
  • Available in RDL White/Gray (D-TPP6A)
  • Available in Stainless Steel (DS-TPP6A)
