Radio Design Labs DS-TPA1A
3.5W Power Amplifier, Decora Style

OUR PART #  DS-TPA1A

Our Price: $178.72
List Price: $210.94
You save 15%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

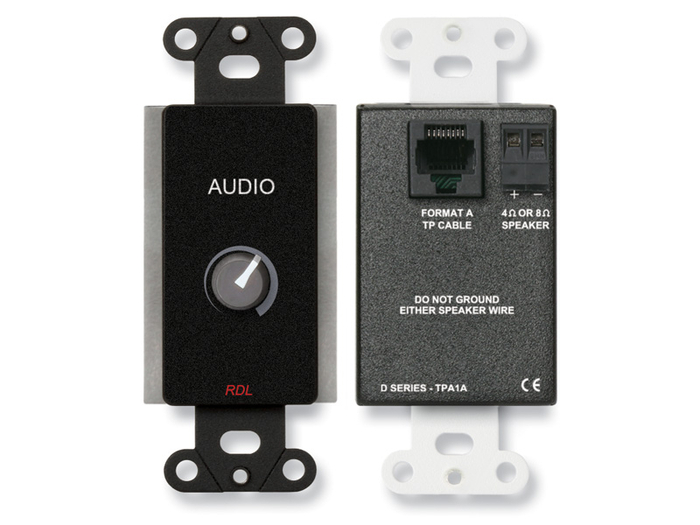

The Radio Design Labs -TPA1A modules are two pair audio amplifier modules compatible with RDL Format A twisted pair products. Each -TPA1A receives stereo audio and 24 Vdc power through a rear-panel RJ45 jack. The left and right audio signals received on pairs B and C of the twisted pair cable are summed to mono and amplified. The amplified output level is set by an internal VCA which is controlled by a front-panel volume control. The VCA attenuator provides years of scratch-free gain adjustment.

The -TPA1A circuits are all designed for low power consumption, and amplification is provided by a high-efficiency Class D power stage with audio filtering tailored for crisp audio clarity. The high-efficiency Class D output stage produces negligible heat for all levels of expected voice or music modulation. When the user reduces the audio level to minimum, the class D output stage is switched off. This sleep mode remains active until the user turns up the output level.

The output drives either a 4 Ohm or 8 Ohm speaker. The speaker cable connects to the module using a detachable terminal block.
The front panel does not include any illuminated indicators, making the -TPA1A ideally suited to installation in dark rooms or areas. Installation is simple and quick, requiring only the connection of the speaker leads and the twisted pair RJ45.

The -TPA1A may be fed and powered from any RDL Format-A sender, and is ideal in hospitality installations fed from a sender connected to a TV monitor (for example: FP-TPS4A Audio Sender from TV with fixed audio output level).

Use the -TPA1A wherever a single speaker user-adjustable wall mounted amplifier is needed. Combine the amplifier with other RDL Format-A products for a cost-effective, high-performance audio system.

Radio Design Labs D-TPA1A Features:

  • 3.5 Watt RMS Audio Amplifier into 8 Ohms
  • 6.5 Watt RMS Audio Amplifier into 4 Ohms
  • Output Drives 4 or 8 Ohm Speaker
  • Setting Level to Minimum Activates Energy-SavingSleep Mode
  • High-Efficiency Class D Operation
  • VCA Level Adjustment for Scratch-Free Long Life
  • Input and Power Connection on RJ45
  • Connects to Format-A Sender using Twisted-Pair Cable
  • Powered from RDL Twisted Pair Format-A Sender
  • Speaker Output Connection on Detachable TerminalBlock
  • Ultra-Compact All Metal Construction
  • Thermal and Short-Circuit Protection

Radio Design Labs D-TPA1A Specifications:

  • Input: RDL Format-A
  • Input Connector: RJ45
  • Gain Adjustment: Single turn audio taper, VCAattenuator
  • Frequency Response: 50 Hz to 20 kHz (± 1.5 dB)
  • THD+N: < 0.1% (@ 1 kHz, 1 W)
  • Noise: <-70 dB (below 1 W RMS)
  • CMRR: > 60 dB (50 Hz to 120 Hz)
  • Output Power: 3.5 W RMS (max., into 8 Ohms); 6.5 WRMS (max., into 4 Ohms)
  • Sleep Mode Power Consumption: < 0.3 W
  • Sleep Mode Enable: Active at audio gain <-60 dB
  • Ambient Operating Environment: 0° C to 40° C
  • Power Consumption: 45 mA (idle), 95 mA (1 W into 8Ohms), 150 mA (1 W into 4 Ohms), 215 mA (3.5 W into 8 Ohms)
  • Dimensions: Height: 4.13 in. 10.49 cm; Width: 1.7 in.4.32 cm; Depth: 2.15 in. 5.47 cm
  • Package Type: Cardboard Box
  • Package Dimensions: 3.625 x 4.625 x 2.125 in.
  • Shipping Weight: 0.395 lbs.
