OUR PART # DG-PSP1A

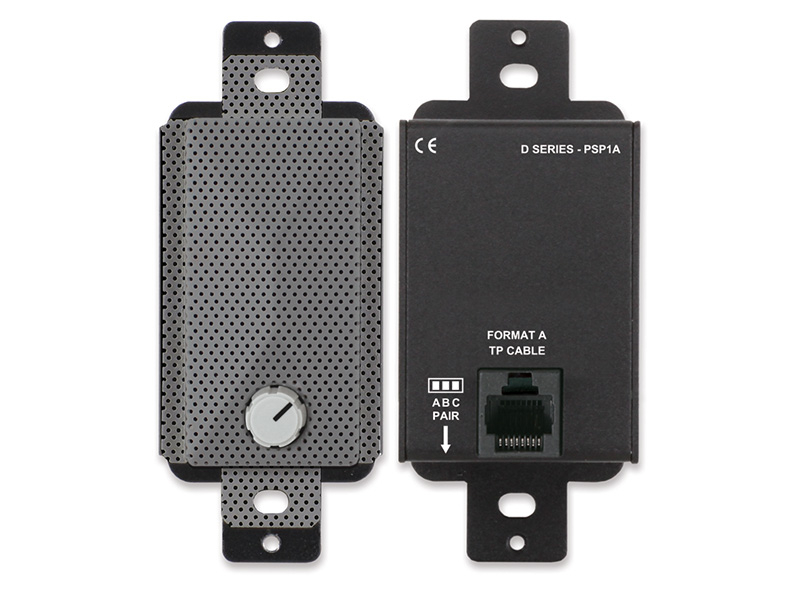

The Radio Design Labs D SERIES-PSP1A is a compact active loudspeaker that delivers rich, detailed sound in Decora-compatible wall or chassis mounts. It is a single-pair audio amplifier module compatible with RDL Format A twisted pair products. The PSP1A receives audio and 24 Vdc power through a rear-panel RJ45 jack. A rear-panel switch set during installation determines which of the three FORMAT-A pairs is amplified. Amplification is provided by a high-efficiency Class D power stage with audio filtering tailored for crisp, pleasant audio clarity. The high-efficiency Class D output stage produces negligible heat for all levels of expected voice or music modulation. The amplified output level is controlled by a front-panel volume control. The PSP1A includes an analog compressor/limiter that makes higher average sound output levels possible without clipping.
The driver is constructed of materials found in premium larger speakers. The unique steel enclosure provides full baffling in a tightly sealed rigid structure. This produces sonic presence within an extended frequency range expected from larger speakers. Internal filtering rolls off out-of-band frequencies to reduce distortion and increase peak power capability. Dispersion covers a spherical area of nearly 180 degrees with the speaker mounted in a wall.
Models are available with grills in black (DB-PSP1A), white (D-PSP1A), gray (DG-PSP1A) or stainless steel (DS-PSP1A).
Recommended Power Supply:
|Radio Design Labs PS-24AS
24 VDC 500mA Switching Power Supply|
Radio Design Labs' PS-24AS is a 24 Vdc switching power supply with a North American AC plug. 500 mA, dc plug.Specifications: Input: 100 to 240 VACOutput: 24 Vdc, 500 mA (UL, CSA)Dimensions: 1.65" x 2.75" x 1.45" (4.2 x 7 x 3.7 ...
Our Price:$22.92List Price: $30.67You save 25%!
