Matrox VS4Recorder Pro
Audio-Video Recording Software for VS4 Quad Capture Card

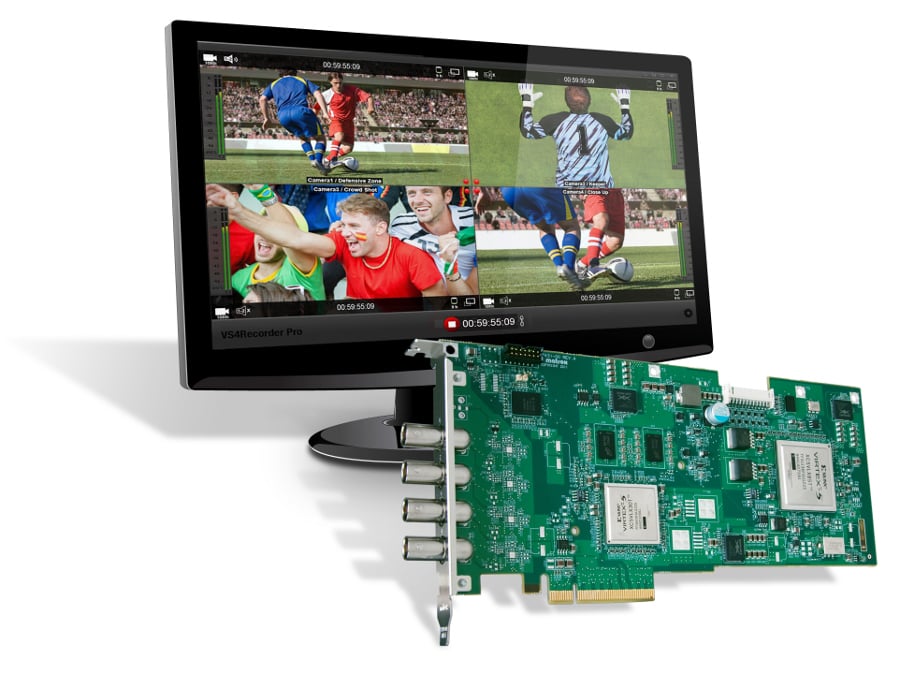

The Matrox VS4Recorder Pro software lets you frame accurately record four live audio/video feeds using a Matrox VS4 quad HD-SDI capture card.
Learn More
Our Price: $2,495.00
Write the first review.
Matrox VS4Recorder Pro
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Matrox VS4Recorder Pro software lets you frame accurately record four live audio/video feeds using a Matrox VS4 quad HD-SDI capture card. It’s ideal for recording live multi-camera productions like concerts and sporting events to create video assets that can be easily repurposed and archived. The VS4Recorder Pro gives you two different recording modes: “multicam”, which provides synchronized frame accurate captures and “independent”, which offers a wide range of video and audio codecs to choose from. And what’s more, VS4Recorder Pro simultaneously provides a complete multiviewer experience. This software purchase includes a Matrox VS4 quad HD-SDI capture card.

Matrox VS4Recorder Pro Features:

  • Capture NLE-friendly files
  • Automatic input detection
  • Frame accurate recording
  • Independent recording
  • High-quality multi-viewer
  • Split-up the recording
  • Unattended recording
  • Informative on-screen display
  • Beyond four channel recording
  • Timecode and metadata support
  • Event markers
  • Audio monitoring
  • Shortcut keys
  • Integrate Matrox VS4Recorder Pro into your own application
  • Integrate with Crestron
  • Matrox DirectShow Filters

Matrox VS4Recorder Pro Specifications:

  • Video:
    • Supported video formats:
      • NTSC/PAL
      • 720P 50/59.94
      • 1080I 50/59.94
      • 1080P 23.98/24/25/29.97/30
      • 1080PsF 23.98/24/25/29.97/30
  • SDI input:
    • 4 SD or HD input
    • 8 channels of embedded audio
    • Compliant with SMPTE 259M, SMPTE 272M,SMPTE 292M, SMPTE 299M
    • BNC connector (75 ohm), terminated
    • Equalized input for maximum cable length support
  • Audio:
    • SDI audio input:
      • 8 channels of embedded audio
      • 24-bit, 48 kHz
  • Software:
    • Streaming: Telestream Wirecast Studio, Wirecast Pro and StudioCoast vMix
  • Recording:
    • Multi-cam recording with Matrox VS4Recorder Pro application
    • Direct capture integration with Telestream Wirecast software
    • Multi-cam editing: Real time multi-cam editing using Matrox VS4, Mojito 4K, Mojito Max or the MXO2 family of products with Adobe Premiere CC
  • General:
    • Dimensions:
      • ¾ length PCI Express (x8) card
      • L: 23.2 cm (9.125") × W: 10.7 cm (4.2")
      • Overall thickness including components 1.9 cm (0.75")
    • Regulatory compliance:
      • FCC Class A, CE Mark Class A, ACMA Class A
      • RoHS Directive 2002/95/EC
      • Limited warranty and service: 3-year limited warranty with free telephone support
  • Electrical and Operating Requirements:
    • Power: Total power consumption: 23.0 watts
  • Environmental:
    • Operating temperature: 0 to 55º C (32 to 131º F)
    • Storage temperature: -40 to 75º C (-40 to 167º F)
    • Maximum altitude for operation: 3,000 meters / 9843 ft.
    • Maximum altitude for transport: 12,000 meters / 39370 ft.
    • Operating humidity: 20 to 80% relative humidity (non-condensing)
    • Storage humidity: 5 to 95% relative humidity (non-condensing)
