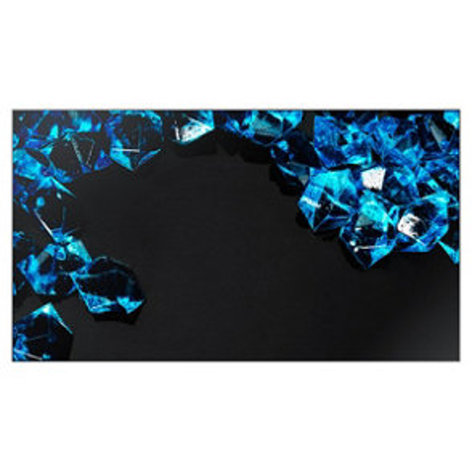

Samsung UD46D-P
46" Direct-Lit LED Display

OUR PART #  UD46D-P

Our Price: $4,543.06
List Price: $5,845.00
You save 22%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

A giant leap forward in near-seamless videowall technology, the Samsung UD46D-P, part of the Samsung UD-D Series displays, boasts one of the industry's thinnest bezel-to-bezel widths—a barely noticeable 3.5mm—enabling you to create impressive, high-resolution videowalls that are virtually seamless. Direct-lit LED technology delivers a bright, rich Full HD picture while being cost-efficient, as well as energy conserving. All in all, the ideal display for any situation that requires a commanding videowall, from transportation hubs and control rooms, to Broadcast studios and shopping centers.

Samsung UD46D-P Includes:

  • Samsung UD46D-P
  • Quick Setup Guide
  • Warranty Card
  • Application CD
  • DP cable
  • Power Cord
  • Remote Controller
  • Batteries

Samsung UD46D-P Features:

  • SD Card Slot
  • ACM Support (Advanced Color Management)
  • Magic Clone (to USB)
  • Auto Source Switching & Recovery
  • Lamp Error Detection
  • Anti Retention (Haze 44%)
  • Temperature Sensor
  • RS232C/RJ45 MDC
  • Plug and Play (DDC2B)
  • PIP/PBP
  • Video Wall (10x10)
  • Pivot Display
  • Image Rotation
  • Button Lock
  • DP 1.2 Digital Daisy Chain (HDCP Support)
  • Smart Scheduling
  • Smart F/W update
  • Clock Battery (80hrs Clock-Keeping)
  • Onboard MagicInfo

Samsung UD46D-P Specifications:

  • Series Name: Series Name UD Series
  • Display:
    • Screen Size: 46"
    • Panel Technology: 60Hz D-LED
    • Resolution: 1920 x 1080 (16:9)
    • Brightness: 700 nits
    • Contrast Ratio (Typical): 3500:1
    • Viewing Angle (H/V): 178°/178°
    • Response Time: 8ms
    • SMART Signage Platform: Yes
  • Connectivity:
    • Input: VGA (D-sub 15-pin), DVI-D, Display Port 1.2, 2 HDMI, Component/Composite, Stereo mini Jack
    • Output: Display Port 1.2 (Loop-out), Stereo mini Jack
    • External Control: RS232C (In/Out), RJ45
    • Sensor Detachable type (IR, Ambient)
  • Power:
    • Power Supply: AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
    • Power Consumption (Typical/Max): 125W / 176W
    • Power Consumption (Standby): < 0.5W
  • Environmental Conditions:
    • Operating Temperature: 32ºF ~ 104ºF
    • Operating Humidity: 10% ~ 80%
  • Physical:
    • Dimensions:
      • Without Stand: 40.2" W x 22.7" H x 3.8" D
      • Packaging: 49.4" W x 31.4" H x 14.0" D
      • Bezel Width: 2.3mm (U/L), 1.2mm (R/B)
    • Weight:
      • Product Weight: 39.8 lbs
      • Package Weight: 49.5 lbs
  • Service:
    • Standard Warranty: 3 Years On-Site (Parts / Labor / Backlight)
  • Green Management:
    • ENERGY STAR® Certified
    • RoHS Compliant
    • Emission Standard EMC
    • Packaging Recyclability Packing Materials Recyclable
  • Other Features:
    • SMART Signage Platform: Yes
    • Media Player Type: Cortex-A9 1GHz Dual Core, 1GB DDR3, 8GB FDM, USB 2.0, Linux OS
    • VESA Standard Wall-Mount Interface: 600 x 400mm
    • Video Wall/Thin Bezel: Yes

Samsung UD46D-P
46" Direct-Lit LED Display

OUR PART #  UD46D-P

Product Information:

A giant leap forward in near-seamless videowall technology, the Samsung UD46D-P, part of the Samsung UD-D Series displays, boasts one of the industry's thinnest bezel-to-bezel widths—a barely noticeable 3.5mm—enabling you to create impressive, high-resolution videowalls that are virtually seamless. Direct-lit LED technology delivers a bright, rich Full HD picture while being cost-efficient, as well as energy conserving. All in all, the ideal display for any situation that requires a commanding videowall, from transportation hubs and control rooms, to Broadcast studios and shopping centers.

Samsung UD46D-P Includes:

  • Samsung UD46D-P
  • Quick Setup Guide
  • Warranty Card
  • Application CD
  • DP cable
  • Power Cord
  • Remote Controller
  • Batteries

Samsung UD46D-P Features:

  • SD Card Slot
  • ACM Support (Advanced Color Management)
  • Magic Clone (to USB)
  • Auto Source Switching & Recovery
  • Lamp Error Detection
  • Anti Retention (Haze 44%)
  • Temperature Sensor
  • RS232C/RJ45 MDC
  • Plug and Play (DDC2B)
  • PIP/PBP
  • Video Wall (10x10)
  • Pivot Display
  • Image Rotation
  • Button Lock
  • DP 1.2 Digital Daisy Chain (HDCP Support)
  • Smart Scheduling
  • Smart F/W update
  • Clock Battery (80hrs Clock-Keeping)
  • Onboard MagicInfo

Samsung UD46D-P Specifications:

  • Series Name: Series Name UD Series
  • Display:
    • Screen Size: 46"
    • Panel Technology: 60Hz D-LED
    • Resolution: 1920 x 1080 (16:9)
    • Brightness: 700 nits
    • Contrast Ratio (Typical): 3500:1
    • Viewing Angle (H/V): 178°/178°
    • Response Time: 8ms
    • SMART Signage Platform: Yes
  • Connectivity:
    • Input: VGA (D-sub 15-pin), DVI-D, Display Port 1.2, 2 HDMI, Component/Composite, Stereo mini Jack
    • Output: Display Port 1.2 (Loop-out), Stereo mini Jack
    • External Control: RS232C (In/Out), RJ45
    • Sensor Detachable type (IR, Ambient)
  • Power:
    • Power Supply: AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
    • Power Consumption (Typical/Max): 125W / 176W
    • Power Consumption (Standby): < 0.5W
  • Environmental Conditions:
    • Operating Temperature: 32ºF ~ 104ºF
    • Operating Humidity: 10% ~ 80%
  • Physical:
    • Dimensions:
      • Without Stand: 40.2" W x 22.7" H x 3.8" D
      • Packaging: 49.4" W x 31.4" H x 14.0" D
      • Bezel Width: 2.3mm (U/L), 1.2mm (R/B)
    • Weight:
      • Product Weight: 39.8 lbs
      • Package Weight: 49.5 lbs
  • Service:
    • Standard Warranty: 3 Years On-Site (Parts / Labor / Backlight)
  • Green Management:
    • ENERGY STAR® Certified
    • RoHS Compliant
    • Emission Standard EMC
    • Packaging Recyclability Packing Materials Recyclable
  • Other Features:
    • SMART Signage Platform: Yes
    • Media Player Type: Cortex-A9 1GHz Dual Core, 1GB DDR3, 8GB FDM, USB 2.0, Linux OS
    • VESA Standard Wall-Mount Interface: 600 x 400mm
    • Video Wall/Thin Bezel: Yes
