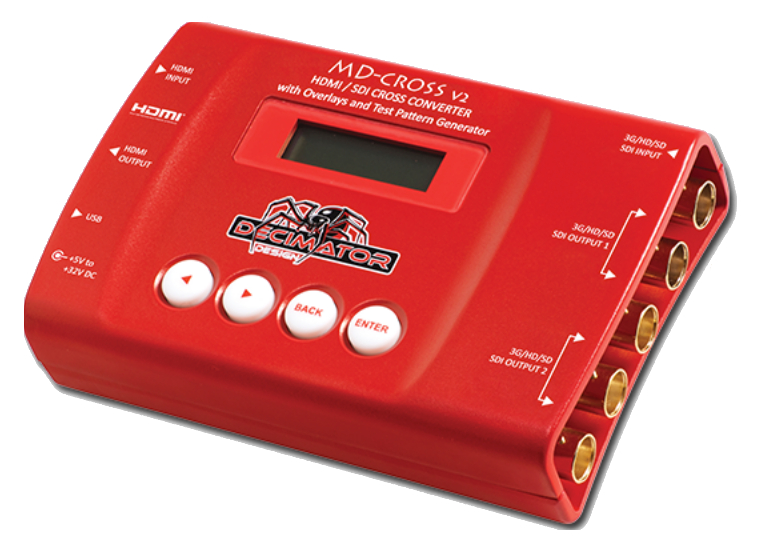

Decimator Design MD-CROSS V2
HDMI / 3G/HD/SD-SDI Cross Converter with Scaling and Frame Rate Conversion

OUR PART #:  DEC-MD-CROSS

The Decimator Design MD-CROSS V2 (Version 2) is an HDMI / 3G/HD/SD-SDI Cross Converter also features Scaling, Frame Rate Conversion, Overlays...
Learn More
Our Price: $395.00
Decimator Design MD-CROSS V2
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Similar Products

The Decimator Design MD-CROSS V2 (Version 2) is an HDMI / 3G/HD/SD-SDI Cross Converter also features Scaling, Frame Rate Conversion, Overlays, Video Test Pattern Generator and Audio Tone Generator.

Highlights of the Version 2 update include:

  • Support both 3G level A and B on the input and output. Allowing conversion between A and B.
  • Horizontal and/or Vertical image flipping via the built in scaler.
  • 4 x (3G/HD/SD)-SDI outputs, that allow it to be used as a 1 to 4distribution amplifier. Output pair 1 can either be a copy of the SDI input(default) or the same as pair 2.

The MD-CROSS V2 still features the following 14 modes:

1.  SDI IN to HDMI and SDI OUT
2.  SDI IN to SDI OUT and HDMI IN to HDMI OUT
3.  SDI IN to SDI OUT and Scaled SDI IN to HDMI OUT
4.  SDI IN to SDI OUT and Scaled HDMI IN to HDMI OUT
5.  HDMI IN to SDI OUT and SDI IN to HDMI OUT
6.  HDMI IN to HDMI and SDI OUT
7.  HDMI IN to SDI OUT and Scaled SDI IN to HDMI OUT
8.  HDMI IN to SDI OUT and Scaled HDMI IN to HDMI OUT
9.  Scaled SDI IN to SDI OUT and SDI IN to HDMI OUT
10.  Scaled SDI IN to SDI OUT and HDMI IN to HDMI OUT
11.  Scaled SDI IN to HDMI and SDI OUT
12.  Scaled HDMI IN to SDI OUT and SDI IN to HDMI OUT
13.  Scaled HDMI IN to SDI OUT and HDMI IN to HDMI OUT
14.  Scaled HDMI IN to HDMI and SDI OUT

The MD-CROSS V2 professional 3G/HD/SD Test Pattern Generator features 26 Selectable Output Formats and 54 Test Patterns including Luma and Chroma Zone-plates.

The MD-CROSS's Down Up Cross Converter allows either the HDMI or SDI input to be scaled and/or frame rate converted to the required standard.

The MD-CROSS V2 incorporates an easy-to-use LCD and button control system. This gives you easy access to all of the features that have been unavailable without a computer until now. The days of having to play with annoying dip switches or having to carry around a computer to change a simple setting are gone.

The MD-CROSS V2 also features:

  • (3G/HD/SD)-SDI Active Loop-Through Output
  • Full 16-Channel Audio Metering Overlays
  • Adjustable Safe Title and Safe Action Overlays andstatic Center Cross
  • Text Overlays
  • USB port for control and firmware updates
  • Metal Thread Locking DC Power Socket
  • Power Supply, HDMI Cable and USB Cable included
