Community R.35COAXW
10" 2-Way Coaxial R Series Speaker in White

OUR PART #:  R.35COAXW

The Community R.35COAXW is a two-way...
Learn More
Our Price: $550.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Community R.35COAXW
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Community R.35COAXW is a two-way, full-range loudspeaker system designed to provide high quality voice and music reproduction in applications requiring extreme weather resistance. It is designed to withstand long-term exposure to tough, environmental conditions and to provide performance normally associated only with indoor loudspeakers. The R.35COAX has a 1.25-inch (32mm) exit HF compression driver and a 10-inch (254mm) cone LF driver with a 2-inch voice coil. The HF assembly is coaxially mounted with the LF driver allowing 90° conical coverage with low distortion. The carbon ring cone design provides a cone area nearly equivalent to a typical 12-inch driver cone.

The Music / Voice switch provides an out-of-the-box selectable flat response or 3dB boost for increased vocal intelligibilty allowing for additional application flexibility. The design uses Community's proprietary Tru-Phase™ phase plug to provide wide dispersion, low distortion and increased intelligibility. The LF driver cone is treated with the same NeverWet™ protection as the grille cloth to provide full weather-resistance. Enclosure has a reinforced ribbed interior with weather-treated wooden inserts to reduce resonance, increase rigidity and reduce rear and lateral radiation.

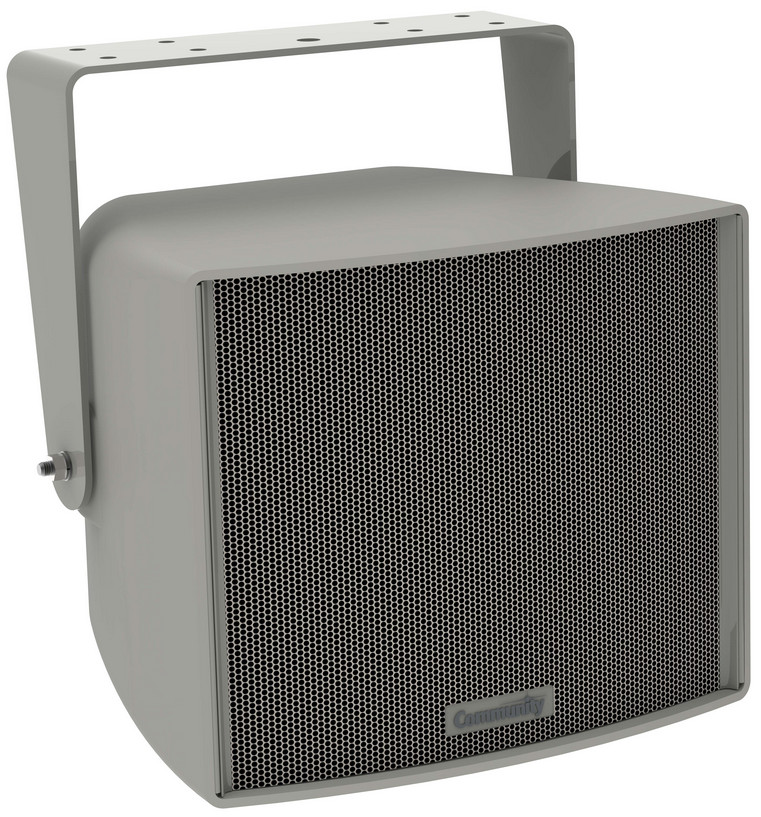

NOTE: Appearance of speaker in picture above may not exactly resemble that of the actual product.  Picture is used above for approximate illustrative purposes.

Community R.35COAXW Features:

  • Excellent musicality and intelligibility, low distortion, and high sensitivity and output
  • Weather-resistant, compact, matte finish paintable high impact ABS plastic modified-trapezoidal enclosure
  • NeverWet™ treated grille and LF driver cones, polymer HF diaphragm, and moisture-sealed crossover
  • Corrosion-resistant zinc-rich epoxy dual-layer powder-coated steel grille and low-profile yoke
  • Real compression driver on Tru-Phase™ waveguide
  • 200W Autoformer (standard)
  • Structurally rigid with weather sealed wood inserts to reduce resonance and rear radiation
  • Five-year product warranty / Fifteen-year enclosure warranty

Community R.35COAXW Specifications:

  • System:
    • Loudspeaker Type: Full-range, two-way, coaxial, weather-resistant
    • Operating Range: 70 Hz to 16 kHz (-10 dB)
    • Frequency Response: 110 Hz to 12.5 kHz (-3 dB)
    • Max Input Ratings:
      • 200W RMS, 400W Program
      • 40 volts RMS, 80 volts momentary peak
    • Autoformer Taps:
      • 70V: 200W, 100W, 50W, 25W and low impedance
      • 100V: 200W, 100W, 50W
    • Maximum Output:
      • Music: 120 dB (126dB peak)
      • Speech: 122 dB (128dB peak)
    • Sensitivity (1W / 1m) Free Space SPL:
      • Music: 97 dB (125 Hz - 10 kHz), 97 dB (250 Hz - 4 kHz)
      • Speech: 99 dB (125 Hz - 10 kHz), 99 dB (250 Hz - 4 kHz)
    • Nominal Impedance:
      • Music: 8 ohms, 5.9 ohms @ 200 Hz minimum
      • Speech: 8 ohms, 5.5 ohms @ 5 kHz minimum
    • Nominal Beamwidth (-6dB): 90° x 90° , 1.6 kHz to 10 kHz
    • Axial Q / DI: 10/10, 1.6 kHz to 10 kHz
    • Crossover Frequency: 1.3 kHz
    • Recommended High Pass: 70 Hz 24 dB / Octave
    • Recommended Amplifier : 400W to 600W at 8 ohms
    • Coaxial Transducers:
      • Low Frequency: 1 x 10" Carbon ring NeverWet™* treated cone, 2" VC
      • High Frequency: 1 x 1.25" exit compression
  • Physical:
    • Input Connection: NL4 Speakon-type connector for low impedance operation only; and 7-position terminal strip for low impedance or constant voltage operation
    • Controls: Music / speech switch, 70V/100V operation jumper
    • Enclosure: ABS plastic, matte finish, paintable
    • RAL # 7038, 9004 or 9003
    • Mounting/Rigging Provisions: Two M8 rigging points, zinc-rich epoxy dual-layer powder-coated yoke, included integral safety cable mounting point
    • Grille: 3-layer Weather-Stop™ featuring NeverWet™ treated polyester mesh, foam, zinc-rich dual-layer powder-coated perforated steel color-matched to enclosure
    • Input Panel Weather Cover: Color-matched ABS plastic with 13.5mm ID gland nut installed in 0.82" knockout
    • Environmental: IP55W per IEC 529 at recommended 5° down-tilt, designed to MIL-STD-810G
    • Dimensions: 11" H x 13" W x 13.5" D (279 x 330 x 343 mm)
    • Loudspeaker Unit Weight: 26 lbs (11.8 kg) with included yoke
    • Shipping Weight: 32 lbs (14.5 kg)
