Product Overview

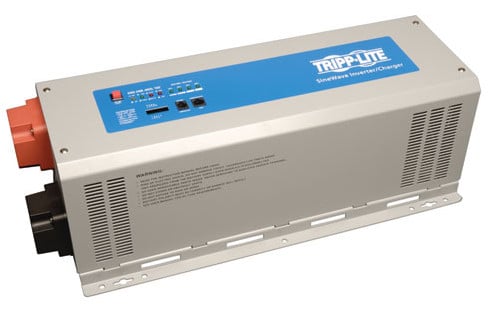

Provide Pure Sine Wave power for all your alternative energy needs with the Tripp Lite APSX2012SW. This inverter/charger supplies 2000 watts of continuous 230V AC power. Reliable large transformer design and frequency control powers resistive loads such as refrigerators, motors, pumps, compressors and laser printers as well as electronic loads like TV’s, Computers, power tool and battery chargers. The 3-stage charging system will properly charge and maintenance your vehicle battery or separate battery bank. The charge rate is selectable so you can use a variety of battery sizes as well as multiple batteries to fit your run time requirements.
Tripp Lite APSX2012SW Features:
- 12V DC or 230V AC input; 230V, 50Hz output(hardwired)
- 2000 watts continuous output, 4000 watts peak output
- Selectable 6/60 amp wet/dry cell battery charger
- Pure sine wave output
- Quiet, high efficiency operation, high surge capacityand low idle current
- Seamless transfer switching
- Continuous output inverter and high power batterycharger
- Supply energy to various loads such as resistive load
- Load sensing adjustable
- Unlimited back up time with user supplied batteries
Tripp Lite APSX2012SW Specifications:
- OUTPUT
- Frequency compatibility: 50Hz
- Output: 2000W
- Continuous output capacity: 2000W
- Peak output capacity: 4000W
- Output nominal voltage: 230V
- Output voltage regulation: LINE POWER (AC) - Maintains 230V nominal sinewave output from line power source. INVERTER POWER (AC) - Maintains sinewave output voltage of 230 VAC (+/-5%).
- Output frequency regulation: 50Hz (+/- 0.3Hz)
- Overload protection: Includes 15A input breaker dedicated to the chargingsystem and 15A output breaker for AC output loads
- INPUT
- Nominal Input Voltage(s) Supported: 230V AC
- Recommended Electrical Service: DC INPUT - Requires 12VDC inputsource capable of delivering 240A for the required duration (when used at fullcontinuous capacity - DC requirements increase during OverPower andDoubleBoost operation). For automotive applications, professional hardwireinstallation with 400A minimum battery system fusing is recommended.
- Maximum input amps/watts: DC INPUT - Full continuous load - 240A at12VDC. AC INPUT - 17A at 230VAC with full inverter and charger load (8.7A maxcharger-only / combined input load to support charger and AC output isautomatically controllable to 66%-33%-0% based on AC output loading using thecharger limiting set points - see manual for setting instructions)
- Input connection type: DC INPUT - Set of 2 DC bolt-down terminals. ACINPUT - Hardwire via built in junction box with cover plate
- Voltage compatibility: 230 VAC
- Voltage compatibility: 12 VDC
- BATTERY
- Expandable battery runtime Runtime is expandable with any number ofuser supplied wet or gel type batteries
- DC system voltage: 12 VDC
- Battery Pack Accessory (optional): 98-121 sealed lead acid battery
- Battery recharge rate: Selectable 6/60 amp
- VOLTAGE REGULATION
- Brownout correction: Brownout transfer point - 170V (+/- 3%)
- Severe brownout correction: Brownout reset point - 180V (+/- 3%)
- LEDS ALARMS & SWITCHES
- Alarms: Audible Status indicators (see manual)
- Switches: The inverter provides an RJ-45 port for optional APSRMSW retmotecontrol. RJ-45 port operates with standard RS-485 interface
- Front panel LEDs: Display inverter status, charger status,and battery voltage status
- PHYSICAL
- Cooling method: Multi-speed fan
- Unit Dimensions: 7.25" x 8.75" x 21.75"
- Unit weight: 51.16 lbs
- Material of construction: Powder coated steel
- Receptacle Color: Gray
- Form factors supported: Mounting slots enable permanent placement ofinverter on any horizontal surface (see manual for additional mountinginformation)
- ENVIRONMENTAL
- Relative Humidity: 0-95% non-condensing
- LINE / BATTERY TRANSFER
- Transfer time from line power to battery mode: 10 milliseconds
- Low voltage transfer to battery power: In AC "auto" mode, inverter/chargerswitches to battery mode as line voltage drops to 144V (user adjustable to163, 182, 201V - see manual)
- High voltage transfer to battery power: In AC "auto" mode,inverter/charger switches to battery mode as line voltage increases to 259V(user adjustable to 264 - see manual)
- SPECIAL FEATURES
- Load Sensing: 150W ~ 220W
- Remote control capability: Yes
