Sony PXW-X320CE
Three 1/2-inch Type Exmor CMOS XDCAM Camcorder with 16x Zoom HD Lens plus CBK-CE01 50-pin Interface

OUR PART #  PXW-X320CE

Call for price! Not available online.
List Price: $13,075.00


Recommended Accessories

The Sony PXW-X320CE is a camcorder package that features the PXW-X320 pro XDCAM with the CBK-CE01 50-pin Interface board pre-installed, allowing the camcorder to integrate with live production environments as part of a multi-camera shoot.

Sony PXW-X320 Pro XDCAM Camcorder
The Sony PXW-X320CE is a high-performance SxS memory camcorder which inherits field-proven operability from the reputable PMW-320. The PXW-X320 is a part of the XDCAM HD422 family and comes equipped with cutting-edge imaging technology – three 1/2-inch-type Full-HD Exmor CMOS sensors with an extremely high S/N ratio – and with the Flash Band Reducer feature to provide outstanding picture quality. The PXW-X320 supports XAVC offering high quality content creation in the HD domain. In addition to XAVC, MPEG HD422, MPEG HD, MPEG IMX, and DVCAM formats are also supported. Two HD/SD-SDI, HDMI, i.LINK™, and composite outputs provide a wide range of AV and IT interfaces. The PXW-X320 also supports wireless operation using an optional adapter, the CBK-WA101 (sold separately). This enables easy and quick clip data transmission to broadcast stations, saving the time and transportation cost of shot clip delivery. With various functions inherited from Sony’s world-acclaimed XDCAM camcorders and yet highly cost effective with lens included, the PXW-X320 is an ideal choice for many different camera professionals, from those engaged in news gathering, when speed is the key concern, to those who produce TV programs and documentaries, when quality is crucial.

CBK-CE01 50-pin Interface
The CBK-CE01 is required to interface a camera adaptor (XDCA-55, CA-TX70, and CA-FB70) to the PXW-X320 XDCAM memory camcorder. The CBK-CE01 is also necessary to add the 2x Digital Extender functionality to this camcorder (sold separately-contact your Full Compass Sales Professional for more information), installable with the CBK-CE01 onboard.

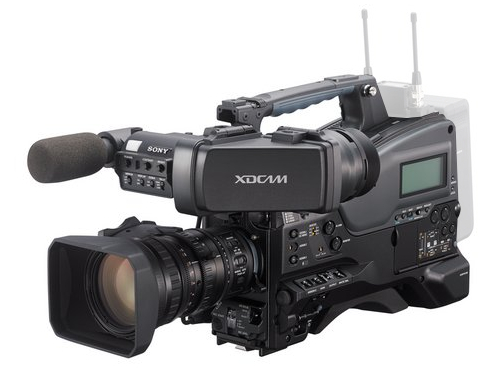

NOTE: Battery and wireless option shown are both sold separately. Contact your Full Compass Sales Professional for more information on this and other products.

Sony PXW-X320CE Camcorder Includes:

  • PXW-X320 unit
  • CBK-CE01 50-pin Interface, Pre-Installed
  • Viewfinder (1)
  • Shoulder strap (1)
  • Stereo microphone (1)
  • Wind-screen (1)
  • Cold shoe kit (1)
  • Lens mount cap (1)
  • Flange back adjustment chart (1)
  • Auto focus lens (1)
  • Before Using this Unit (1)
  • CD-ROM:
    • Operating Instructions (English)
    • Operating Instructions (Japanese)

Sony PXW-X320CE Camcorder Features:

Sony PXW-X320 Camera

  • High Picture Quality - The PXW-X320 incorporates three1/2-inch-type Full HD Exmor CMOS sensors (1920 x 1080) to achieve highresolution, high sensitivity (F11 at 59.94 Hz / F12 at 50 Hz), low noise (60dB), and a wide dynamic range to give more freedom of expression for creativeshooting.
  • Three-Dimensional Noise Reducer - In addition to existingnoise reduction features, the PXW-X320 also includes a three-dimensional noisereducer. This not only detects vertical and horizontal direction in a framepicture but also noise components in a time axis, utilizing correlationcharacteristics between video frames. Using this feature, the S/N ratio isimproved to 60 dB, which is the highest level of noise reduction in a1/2-inch-type Full HD shoulder camcorder.
  • Selectable Format and Bit Rates - The PXW-X320incorporates XAVC in the HD domain at a 100 Mbps data rate, enabling thecreation of rich content with 10-bit quality. It is capable of recording XVACIntra at 1920 x 1080 Full HD 59.94i, 50i, 29.97p, 25p and 23.98p, or 1280 x720 HD 59.94p and 50p. The camcorder can also record Full HD video (1920 x1080) at up to 50 Mbps using XAVC Long and MPEG HD422, as well as MPEG HD at35 Mbps / 25 Mbps, MPEG IMX at 50 Mbps, and DVCAM at 25 Mbps in MXF file, asstandard supported formats.
  • High Resolution 3.5-inch Color LCD Viewfinder - With alarge, easy-to-read 3.5-inch QHD color LCD viewfinder as a standard accessory,the PXW-X320 offers outstanding resolution of 960 x 540 pixels, stronglysupporting critical focus control during HD shooting. The viewfinder cover canbe flipped up to enhance visibility when the camera is set on a tripod.
  • Wireless Adaptor Increases Operational Flexibility - ThePXW-X320 is designed to support wireless operation using an optional wirelessadapter, the CBK-WA101, which can be attached without any additional cables.Using this adapter, you can stream out pictures for live shooting via an IPnetwork. After shooting, you can select a recorded proxy or high resolution*file from the list and upload it to an on-premises server or to a cloudservice via a mobile Wireless LAN router or 3G/4G/LTE device. The adapter alsoprovides live monitoring and remote control of the PXW-X320 by mobile tabletor smartphone with mobile application software. * A USB connection isrequired.
  • Enhanced Flash Band Reducer - Incorporating a newlydeveloped algorithm, the PXW-X320 detects and processes flash banding insideits hardware before recording begins. This provides greater flexibility inreducing flash banding across different shooting environments. This featurecan be disabled from the menu if you want to use Content Browser for flashband reduction after shooting. You are free to choose to reduce flash bandbefore or after shooting, depending on each shooting circumstance.
  • Customizable Menu - The PXW-X320 has a User Menu featurethat is typically associated only with high-end camcorders. This featureallows you to pick and organize frequently used menu items much in the sameway as the bookmark feature of a web browser. By using this feature, you cansave a lot of time – you won’t have to repeatedly search for specific menuitems – and experience more efficient operation.
  • Variety of Interfaces, Including SD / HD-SDI and i.Link- Two lines of SDI output connection are provided by thePXW-X320. This enables, for example, the director and camera operator toconcurrently check shot content via two separate monitors. Also, formonitoring purposes this camcorder can be connected via HDMI to professionaldisplays as well as domestic-use TVs with an HDMI connector. The i.LINKconnector can be used for HDV when SP 1440 (FAT) mode is selected and for DVwhen DVCAM (FAT) mode is selected, for both input and output signal flows.
  • Supplied with 1/2-inch 16x HD Zoom Lens - With a 1/2-inchtype bayonet lens mount, the PXW-X320 is supplied with a 16x high definitionauto-focus optical zoom lens.
  • Low Power Consumption - The lightweight PXW-X320 has alow power consumption of 25W (with viewfinder, lens and microphone whilerecording).

CBK-CE01 50-pin Interface

  • Pre-installed The CBK-CE01 50-pin interface is used to dock a cameraadapter (XDCA-55, CA-TX70, and CA-FB70) to the PXW-X320. With this mechanism,no other connection cables are required.

Sony PXW-X320CE Camcorder Specifications:

Sony PXW-X320 Camera

Camera Section

  • Built-in Optical Filters: 1: Clear, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND
  • Effective Pixels: 1920 (H) x 1080 (V)
  • Gain: -3, 0, 3, 6, 9, 12, 18, 24 dB
  • Horizontal Resolution: 1,000 TV lines or more (1920 x 1080i mode)
  • Imaging Device: 3-chip 1/2-type "Exmor" Full HD CMOS
  • Minimum Illumination: 0.04 lx (typical) (1920 x 1080/59.94i mode, F1.6, +42 dB gain, with 64-frame accumulation)
  • Optical System: F1.6 prism system
  • S/N Ratio: 60 dB (Y) (typical)
  • Sensitivity (2000 lx, 89.9% reflectance):
    • F11 (typical) (1920 x 1080/59.94i mode)
    • F12 (typical) (1920 x 1080/50i mode)
  • Shutter Speed (Time): 1/60 sec to 1/2,000 sec + ECS (Extended Clear Scan)
  • Slow & Quick Motion Function:
    • 720p: Frame rate selectable from 1 fps to 60 fps
    • 1080p: Frame rate selectable from 1 fps to 30 fps
  • Slow Shutter: 2, 3, 4, 5, 6, 7, 8, 16, 32, 64-frame accumulation
  • White Balance: Preset (3200K), Memory A, Memory B/ATW

General

  • Battery Operating Time: Approx. 194 min with BP-L80S
  • Dimensions (W x H x D): Approx. 5" x 10-5/8" x 13-1/8" (excluding protrusions, body only)
  • Weight (body only without lens, VF, Mic): Approx. 7.5 lbs. (3.4kg)
  • Operating Temperature: 32° F to 104° F
  • Power Consumption: Approx. 25W (with viewfinder, lens, and microphone while recording)
  • Power Requirements: DC 12 V
  • Recording Format:
    • XAVC-I mode: CBG, 112Mbps max, MPEG-4 AVC/H.264
    • XAVC-L50 mode: VBR, 50Mbps, MPEG-4 AVC/H.264
    • XAVC-L35 mode: VBR, 35Mbps, MPEG-4 AVC/H.264
    • XAVC-L25 mode: VBR, 25Mbps, MPEG-4 AVC/H.26
    • MPEG-2 Long GOP HD 422 mode: CBR, 50 Mbps max., MPEG-2 422P @HL
    • MPEG-2 Long GOP HQ mode: VBR, 35 Mbps max., MPEG-2 MP @HL
    • MPEG-2 Long GOP SP mode: CBR, 25 Mbps, MPEG-2 MP @H-14
    • MPEG-2 Long GOP SD mode : MPEG IMX, DVCAM
  • Recording Frame Rate:
    • XAVC-I Mode: CBG, 112Mbps max, MPEG-4 AVC/H.264 - 1920 x 1080/59.94i, 50i, 29.97p, 25p, 23.98p - 1280 x 720/ 59.94p, 50p
    • XAVC-L50 mode: VBR, 50Mbps, MPEG-4 AVC/H.264 - 1920 x 1080/ 59.94i,50i, 29.97p, 25p, 23.98p - 1280 x 720/ 59.94p, 50p
    • XAVC-L35 mode: VBR, 35Mbps, MPEG-4 AVC/H.264 - 1920 x 1080/ 59.94i,50i, 29.97p, 25p, 23.98p
    • XAVC-L25 mode: VBR, 25Mbps, MPEG-4 AVC/H.264 - 1920 x 1080/ 59.94i,50i
    • HD 422 50 Mode: MPEG-2 422P @HL, 50 MBps/ CBR - 1920 x 1080/ 59.94i,50i, 29.97p, 25p, 23.98p - 1280 x 720/ 59.94p, 50p, 29.97p, 25p, 23.98p
    • HD 420 HQ Mode: MPEG-2 MP @HL, 35 MBps/ VBR - 1920 x 1080/ 59.94i,50i, 29.97p, 25p, 23.98p - 1440 x 1080/ 59.94i, 50i, 29.97p, 25p, 23.98p- 1280 x 720/ 59.94p, 50p, 23.98p (2-3 pull down)
    • SD MPEG IMX Mode: - 720 x 486/ 59.94i, 29.97PsF - 720 x 576/ 50i,25PsF
    • SD DVCAM Mode: - 720 x 480/ 59.94i, 29.97PsF - 720 x 576/ 50i, 25PsF
    • HD 422 50 Mode: MPEG-2 422P @HL, 50 MBps/ CBR - 1920 x 1080/ 59.94i,50i, 29.97p, 25p, 23.98p - 1280 x 720/ 59.94p, 50p, 29.97p, 25p, 23.98p
    • HD 420 HQ Mode: MPEG-2 MP @HL, 35 MBps/ VBR - 1920 x 1080/ 59.94i,50i, 29.97p, 25p, 23.98p - 1440 x 1080/ 59.94i, 50i, 29.97p, 25p, 23.98p- 1280 x 720/ 59.94p, 50p, 23.98p (2-3 pull down)
    • SD MPEG IMX Mode - 720 x 486/ 59.94i, 29.97PsF - 720 x 576/ 50i,25PsF
    • SD DVCAM Mode: - 720 x 486/ 59.94i, 29.97PsF - 720 x 576/ 50i, 25PsF
    • HD HQ 1920 Mode: MPEG-2 MP @HL, 35 Mbps/ VBR - 1920 x 1080/ 59.94i,50i, 29.97p, 25p, 23.98p
    • HD HQ 1440 Mode: MPEG-2 MP @HL, 35 Mbps/ VBR - 1440 x 1080/ 59.94i,50i, 29.97p, 25p, 23.98p
    • HD HQ 1280 Mode: MPEG-2 MP @HL, 35 Mbps/ VBR - 1280 x 720/ 59.94p,50p, 29.97p, 25p, 23.98p
    • HD SP 1440 Mode: MPEG-2 MP @H-14, 25 Mbps/ CBR - 1440 x 1080/59.94i, 50i, 23.98p (2-3 pull down)
    • SD DVCAM Mode - 720 x 480/ 59.94i, 29.97PsF - 720 x 576/ 50i,25PsF
  • Recording/Playback Time*:
    • XAVC-I Mode:
      • Approx. 120 min with SBP-128B (128GB) memory card
      • Approx. 60 min with SBS-64G1A/SBP-64B (64 GB) memory card
      • Approx. 30 min with SBS-32G1A (32 GB) memory card
    • XAVC-L50 mode:
      • Approx. 240 min with SBP-128B (128GB) memory card
      • Approx. 120 min with SBS-64G1A/SBP-64B (64 GB) memory card
      • Approx. 60 min with SBS-32G1A (32 GB) memory card
    • XAVC-L35 mode:
      • Approx. 340 min with SBP-128B (128GB) memory card
      • Approx. 170 min with SBS-64G1A/SBP-64B (64 GB) memory card
      • Approx. 85 min with SBS-32G1A (32 GB) memory card
    • XAVC-L25 mode:
      • Approx. 440 min with SBP-128B (128GB) memory card
      • Approx. 220 min with SBS-64G1A/SBP-64B (64 GB) memory card
      • Approx. 110 min with SBS-32G1A (32 GB) memory card
    • HD 422 50/ SD MPEG IMX Mode:
      • Approx. 240 min with SBP-128B (128GB) memory card
      • Approx. 120 min with SBS-64G1A/SBP-64B (64 GB) memory card
      • Approx. 60 min with G49SBS-32G1A (32 GB) memory card
    • HD 420 HQ Mode:
      • Approx. 360 min with SBP-128B (128GB) memory card
      • Approx. 180 min with SBS-64G1A/SBP-64B (64 GB) memory card
      • Approx. 90 min with SBS-32G1A ( 32 GB) memory card
    • SD DVCAM Mode:
      • Approx. 440 min with SBP-128B (128GB) memory card
      • Approx. 220 min with SBS-64G1A/SBP-64B (64 GB) memory card
      • Approx. 110 min with SBS-32G1A (32 GB) memory card
    • HD 422 50/ SD MPEG IMX Mode*:
      • Approx. 240 min with SBP-128B (128GB) memory card
      • Approx. 120 min with SBS-64G1A/SBP-64B (64 GB) memory card
      • Approx. 60 min with G49SBS-32G1A (32 GB) memory card
    • HD 420 HQ Mode:
      • Approx. 360 min with SBP-128B (128GB) memory card
      • Approx. 180 min with SBS-64G1A/SBP-64B (64 GB) memory card
      • Approx. 90 min with SBS-32G1A ( 32 GB) memory card
    • SD DVCAM Mode:
      • Approx. 440 min with SBP-128B (128GB) memory card
      • Approx. 220 min with SBS-64G1A/SBP-64B (64 GB) memory card
      • Approx. 110 min with SBS-32G1A (32 GB) memory card
    • HD HQ Mode:
      • Approx. 400 min with SBP-128B (128GB) memory card
      • Approx. 200 min with SBS-64G1A/SBP-64B (64 GB) memory card
      • Approx. 100 min with SBS-32G1A (32 GB) memory card
    • HD SP Mode:
      • Approx. 560 min with SBS-64G1A (64 GB) memory card
      • Approx. 280 min with SBS-64G1A/SBP-64B (64 GB) memory card
      • Approx. 140 min with SBS-32G1A (32 GB) memory card
    • SD DVCAM Mode:
      • Approx. 520 min with SBP-128B (128GB) memory card
      • Approx. 260 min with SBS-64G1A/SBP-64B (64 GB) memory card
      • Approx. 260 min with SBS-64G1A/SBP-64B (64 GB) memory card
        *Note: Recording /Playback time may vary the according to the encoding or memory.
  • Storage Temperature: -4° F to +140° F

Inputs/Outputs

  • Audio Input: XLR-type 3-pin (female) (x2), Line/Mic/Mic +48 V selectable
  • Audio Output: XLR-type 5-pin
  • DC Input: XLR-type 4-pin
  • DC Output: 4-pin
  • Genlock Input: BNC (x1)
  • HDMI Output: A type (x1)
  • MIC: XLR-type 5-pin
  • Remote: 8-pin
  • SDI Output: BNC (x2), HD-SDI/SD-SDI selectable
  • Speaker Output: Monaural
  • Timecode Output: BNC (x1)
  • USB: USB device B Type (x1), host A Type (x1)
  • Video Output: BNC (x1) HD-Y or Analog composite
  • i.LINK: IEEE 1394, 6-pin (x1), HDV (HDV 1080i )/DVCAM stream input/output*, S400
    *Note: HDV/ DV stream input/output are available only in FAT mode. Depending on the connected products, it may not be recorded correctly.

Lens

  • Filter Diameter: M82 mm, pitch 0.75 mm (on lens)
  • Focal Length: f = 5.8 mm to 93 mm (equivalent to 31.4 mm to 503 mm on 35 mm lens)
  • Focus: AF/MF/Full MF selectable 800 mm to 8 (MACRO OFF) 50 mm to 8 (MACRO ON, Wide) 782 mm to 8 (MACRO ON, Tele)
  • Iris: F1.9 to F16 and Close, Auto/Manual selectable
  • Lens Mount: Sony 1/2-inch type bayonet mount
  • Zoom Ratio: 16x (optical), servo/manual (AF lens for PXW-X320)

Monitoring

  • Built-in LCD Monitor: Black & White LCD (Audio level, TC, battery and media remaining capacity)
  • Viewfinder: 3.5-inch* type color LCD monitor: 960 (H) x 540 (V), Quarter HD Size
    *Note: Viewable area measureddiagonally.

All information and specifications subject to change without notice.
