Sony PXW-X320
Three 1/2-inch Type Exmor CMOS XDCAM Camcorder with 16x Zoom HD Lens

OUR PART #  PXW-X320

Call for price! Not available online.
List Price: $11,450.00


Recommended Accessories

The Sony PXW-X320 is a high-performance SxS memory camcorder which inherits field-proven operability from the reputable PMW-320. The PXW-X320 is a part of the XDCAM HD422 family and comes equipped with cutting-edge imaging technology – three 1/2-inch-type Full-HD Exmor CMOS sensors with an extremely high S/N ratio – and with the Flash Band Reducer feature to provide outstanding picture quality. The PXW-X320 supports XAVC offering high quality content creation in the HD domain. In addition to XAVC, MPEG HD422, MPEG HD, MPEG IMX, and DVCAM formats are also supported. Two HD/SD-SDI, HDMI, i.LINK™, and composite outputs provide a wide range of AV and IT interfaces. The PXW-X320 also supports wireless operation using an optional adapter, the CBK-WA101 (sold separately). This enables easy and quick clip data transmission to broadcast stations, saving the time and transportation cost of shot clip delivery. With various functions inherited from Sony’s world-acclaimed XDCAM camcorders and yet highly cost effective with lens included, the PXW-X320 is an ideal choice for many different camera professionals, from those engaged in news gathering, when speed is the key concern, to those who produce TV programs and documentaries, when quality is crucial.

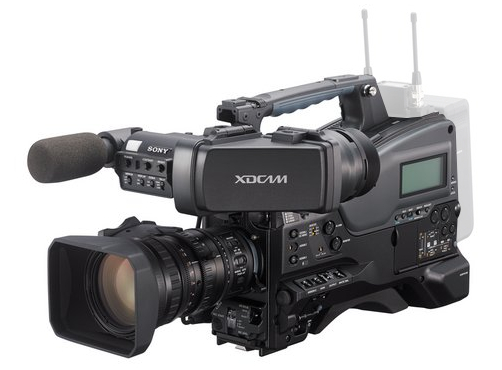

NOTE: Battery and wireless option shown are both sold separately. Contact your Full Compass Sales Professional for more information on this and other products.

Sony PXW-X320 Includes:

  • PXW-X320 unit
  • Viewfinder (1)
  • Shoulder strap (1)
  • Stereo microphone (1)
  • Wind-screen (1)
  • Cold shoe kit (1)
  • Lens mount cap (1)
  • Flange back adjustment chart (1)
  • Auto focus lens (1)
  • Before Using this Unit (1)
  • CD-ROM:
    • Operating Instructions (English)
    • Operating Instructions (Japanese)

Sony PXW-X320 Features:

  • High Picture Quality - The PXW-X320 incorporates three 1/2-inch-type Full HD Exmor CMOS sensors (1920 x 1080) to achieve high resolution, high sensitivity (F11 at 59.94 Hz / F12 at 50 Hz), low noise (60 dB), and a wide dynamic range to give more freedom of expression for creative shooting.
  • Three-Dimensional Noise Reducer - In addition to existing noise reduction features, the PXW-X320 also includes a three-dimensional noise reducer. This not only detects vertical and horizontal direction in a frame picture but also noise components in a time axis, utilizing correlation characteristics between video frames. Using this feature, the S/N ratio is improved to 60 dB, which is the highest level of noise reduction in a 1/2-inch-type Full HD shoulder camcorder.
  • Selectable Format and Bit Rates - The PXW-X320 incorporates XAVC in the HD domain at a 100 Mbps data rate, enabling the creation of rich content with 10-bit quality. It is capable of recording XVAC Intra at 1920 x 1080 Full HD 59.94i, 50i, 29.97p, 25p and 23.98p, or 1280 x 720 HD 59.94p and 50p. The camcorder can also record Full HD video (1920 x 1080) at up to 50 Mbps using XAVC Long and MPEG HD422, as well as MPEG HD at 35 Mbps / 25 Mbps, MPEG IMX at 50 Mbps, and DVCAM at 25 Mbps in MXF file, as standard supported formats.
  • High Resolution 3.5-inch Color LCD Viewfinder - With a large, easy-to-read 3.5-inch QHD color LCD viewfinder as a standard accessory, the PXW-X320 offers outstanding resolution of 960 x 540 pixels, strongly supporting critical focus control during HD shooting. The viewfinder cover can be flipped up to enhance visibility when the camera is set on a tripod.
  • Wireless Adaptor Increases Operational Flexibility - The PXW-X320 is designed to support wireless operation using an optional wireless adapter, the CBK-WA101, which can be attached without any additional cables. Using this adapter, you can stream out pictures for live shooting via an IP network. After shooting, you can select a recorded proxy or high resolution* file from the list and upload it to an on-premises server or to a cloud service via a mobile Wireless LAN router or 3G/4G/LTE device. The adapter also provides live monitoring and remote control of the PXW-X320 by mobile tablet or smartphone with mobile application software. * A USB connection is required.
  • Enhanced Flash Band Reducer - Incorporating a newly developed algorithm, the PXW-X320 detects and processes flash banding inside its hardware before recording begins. This provides greater flexibility in reducing flash banding across different shooting environments. This feature can be disabled from the menu if you want to use Content Browser for flash band reduction after shooting. You are free to choose to reduce flash band before or after shooting, depending on each shooting circumstance.
  • Customizable Menu - The PXW-X320 has a User Menu feature that is typically associated only with high-end camcorders. This feature allows you to pick and organize frequently used menu items much in the same way as the bookmark feature of a web browser. By using this feature, you can save a lot of time – you won’t have to repeatedly search for specific menu items – and experience more efficient operation.
  • Variety of Interfaces, Including SD / HD-SDI and i.Link - Two lines of SDI output connection are provided by the PXW-X320. This enables, for example, the director and camera operator to concurrently check shot content via two separate monitors. Also, for monitoring purposes this camcorder can be connected via HDMI to professional displays as well as domestic-use TVs with an HDMI connector. The i.LINK connector can be used for HDV when SP 1440 (FAT) mode is selected and for DV when DVCAM (FAT) mode is selected, for both input and output signal flows.
  • Supplied with 1/2-inch 16x HD Zoom Lens - With a 1/2-inch type bayonet lens mount, the PXW-X320 is supplied with a 16x high definition auto-focus optical zoom lens.
  • Low Power Consumption - The lightweight PXW-X320 has a low power consumption of 25W (with viewfinder, lens and microphone while recording).

Sony PXW-X320 Specifications:

Camera Section

  • Built-in Optical Filters: 1: Clear, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND
  • Effective Pixels: 1920 (H) x 1080 (V)
  • Gain: -3, 0, 3, 6, 9, 12, 18, 24 dB
  • Horizontal Resolution: 1,000 TV lines or more (1920 x 1080i mode)
  • Imaging Device: 3-chip 1/2-type "Exmor" Full HD CMOS
  • Minimum Illumination: 0.04 lx (typical) (1920 x 1080/59.94i mode, F1.6, +42 dB gain, with 64-frame accumulation)
  • Optical System: F1.6 prism system
  • S/N Ratio: 60 dB (Y) (typical)
  • Sensitivity (2000 lx, 89.9% reflectance):
    • F11 (typical) (1920 x 1080/59.94i mode)
    • F12 (typical) (1920 x 1080/50i mode)
  • Shutter Speed (Time): 1/60 sec to 1/2,000 sec + ECS (Extended Clear Scan)
  • Slow & Quick Motion Function:
    • 720p: Frame rate selectable from 1 fps to 60 fps
    • 1080p: Frame rate selectable from 1 fps to 30 fps
  • Slow Shutter: 2, 3, 4, 5, 6, 7, 8, 16, 32, 64-frame accumulation
  • White Balance: Preset (3200K), Memory A, Memory B/ATW

General

  • Battery Operating Time: Approx. 194 min with BP-L80S
  • Dimensions (W x H x D): Approx. 5" x 10-5/8" x 13-1/8" (excluding protrusions, body only)
  • Weight (body only without lens, VF, Mic): Approx. 7.5 lbs. (3.4kg)
  • Operating Temperature: 32° F to 104° F
  • Power Consumption: Approx. 25W (with viewfinder, lens, and microphone while recording)
  • Power Requirements: DC 12 V
  • Recording Format:
    • XAVC-I mode: CBG, 112Mbps max, MPEG-4 AVC/H.264
    • XAVC-L50 mode: VBR, 50Mbps, MPEG-4 AVC/H.264
    • XAVC-L35 mode: VBR, 35Mbps, MPEG-4 AVC/H.264
    • XAVC-L25 mode: VBR, 25Mbps, MPEG-4 AVC/H.26
    • MPEG-2 Long GOP HD 422 mode: CBR, 50 Mbps max., MPEG-2 422P @HL
    • MPEG-2 Long GOP HQ mode: VBR, 35 Mbps max., MPEG-2 MP @HL
    • MPEG-2 Long GOP SP mode: CBR, 25 Mbps, MPEG-2 MP @H-14
    • MPEG-2 Long GOP SD mode : MPEG IMX, DVCAM
  • Recording Frame Rate:
    • XAVC-I Mode: CBG, 112Mbps max, MPEG-4 AVC/H.264 - 1920 x 1080/ 59.94i, 50i, 29.97p, 25p, 23.98p - 1280 x 720/ 59.94p, 50p
    • XAVC-L50 mode: VBR, 50Mbps, MPEG-4 AVC/H.264 - 1920 x 1080/ 59.94i, 50i, 29.97p, 25p, 23.98p - 1280 x 720/ 59.94p, 50p
    • XAVC-L35 mode: VBR, 35Mbps, MPEG-4 AVC/H.264 - 1920 x 1080/ 59.94i, 50i, 29.97p, 25p, 23.98p
    • XAVC-L25 mode: VBR, 25Mbps, MPEG-4 AVC/H.264 - 1920 x 1080/ 59.94i, 50i
    • HD 422 50 Mode: MPEG-2 422P @HL, 50 MBps/ CBR - 1920 x 1080/ 59.94i, 50i, 29.97p, 25p, 23.98p - 1280 x 720/ 59.94p, 50p, 29.97p, 25p, 23.98p
    • HD 420 HQ Mode: MPEG-2 MP @HL, 35 MBps/ VBR - 1920 x 1080/ 59.94i, 50i, 29.97p, 25p, 23.98p - 1440 x 1080/ 59.94i, 50i, 29.97p, 25p, 23.98p - 1280 x 720/ 59.94p, 50p, 23.98p (2-3 pull down)
    • SD MPEG IMX Mode: - 720 x 486/ 59.94i, 29.97PsF - 720 x 576/ 50i, 25PsF
    • SD DVCAM Mode: - 720 x 480/ 59.94i, 29.97PsF - 720 x 576/ 50i, 25PsF
    • HD 422 50 Mode: MPEG-2 422P @HL, 50 MBps/ CBR - 1920 x 1080/ 59.94i, 50i, 29.97p, 25p, 23.98p - 1280 x 720/ 59.94p, 50p, 29.97p, 25p, 23.98p
    • HD 420 HQ Mode: MPEG-2 MP @HL, 35 MBps/ VBR - 1920 x 1080/ 59.94i, 50i, 29.97p, 25p, 23.98p - 1440 x 1080/ 59.94i, 50i, 29.97p, 25p, 23.98p - 1280 x 720/ 59.94p, 50p, 23.98p (2-3 pull down)
    • SD MPEG IMX Mode - 720 x 486/ 59.94i, 29.97PsF - 720 x 576/ 50i, 25PsF
    • SD DVCAM Mode: - 720 x 486/ 59.94i, 29.97PsF - 720 x 576/ 50i, 25PsF
    • HD HQ 1920 Mode: MPEG-2 MP @HL, 35 Mbps/ VBR - 1920 x 1080/ 59.94i, 50i, 29.97p, 25p, 23.98p
    • HD HQ 1440 Mode: MPEG-2 MP @HL, 35 Mbps/ VBR - 1440 x 1080/ 59.94i, 50i, 29.97p, 25p, 23.98p
    • HD HQ 1280 Mode: MPEG-2 MP @HL, 35 Mbps/ VBR - 1280 x 720/ 59.94p, 50p, 29.97p, 25p, 23.98p
    • HD SP 1440 Mode: MPEG-2 MP @H-14, 25 Mbps/ CBR - 1440 x 1080/ 59.94i, 50i, 23.98p (2-3 pull down)
    • SD DVCAM Mode - 720 x 480/ 59.94i, 29.97PsF - 720 x 576/ 50i, 25PsF
  • Recording/Playback Time*:
    • XAVC-I Mode:
      • Approx. 120 min with SBP-128B (128GB) memory card
      • Approx. 60 min with SBS-64G1A/SBP-64B (64 GB) memory card
      • Approx. 30 min with SBS-32G1A (32 GB) memory card
    • XAVC-L50 mode:
      • Approx. 240 min with SBP-128B (128GB) memory card
      • Approx. 120 min with SBS-64G1A/SBP-64B (64 GB) memory card
      • Approx. 60 min with SBS-32G1A (32 GB) memory card
    • XAVC-L35 mode:
      • Approx. 340 min with SBP-128B (128GB) memory card
      • Approx. 170 min with SBS-64G1A/SBP-64B (64 GB) memory card
      • Approx. 85 min with SBS-32G1A (32 GB) memory card
    • XAVC-L25 mode:
      • Approx. 440 min with SBP-128B (128GB) memory card
      • Approx. 220 min with SBS-64G1A/SBP-64B (64 GB) memory card
      • Approx. 110 min with SBS-32G1A (32 GB) memory card
    • HD 422 50/ SD MPEG IMX Mode:
      • Approx. 240 min with SBP-128B (128GB) memory card
      • Approx. 120 min with SBS-64G1A/SBP-64B (64 GB) memory card
      • Approx. 60 min with G49SBS-32G1A (32 GB) memory card
    • HD 420 HQ Mode:
      • Approx. 360 min with SBP-128B (128GB) memory card
      • Approx. 180 min with SBS-64G1A/SBP-64B (64 GB) memory card
      • Approx. 90 min with SBS-32G1A ( 32 GB) memory card
    • SD DVCAM Mode:
      • Approx. 440 min with SBP-128B (128GB) memory card
      • Approx. 220 min with SBS-64G1A/SBP-64B (64 GB) memory card
      • Approx. 110 min with SBS-32G1A (32 GB) memory card
    • HD 422 50/ SD MPEG IMX Mode*:
      • Approx. 240 min with SBP-128B (128GB) memory card
      • Approx. 120 min with SBS-64G1A/SBP-64B (64 GB) memory card
      • Approx. 60 min with G49SBS-32G1A (32 GB) memory card
    • HD 420 HQ Mode:
      • Approx. 360 min with SBP-128B (128GB) memory card
      • Approx. 180 min with SBS-64G1A/SBP-64B (64 GB) memory card
      • Approx. 90 min with SBS-32G1A ( 32 GB) memory card
    • SD DVCAM Mode:
      • Approx. 440 min with SBP-128B (128GB) memory card
      • Approx. 220 min with SBS-64G1A/SBP-64B (64 GB) memory card
      • Approx. 110 min with SBS-32G1A (32 GB) memory card
    • HD HQ Mode:
      • Approx. 400 min with SBP-128B (128GB) memory card
      • Approx. 200 min with SBS-64G1A/SBP-64B (64 GB) memory card
      • Approx. 100 min with SBS-32G1A (32 GB) memory card
    • HD SP Mode:
      • Approx. 560 min with SBS-64G1A (64 GB) memory card
      • Approx. 280 min with SBS-64G1A/SBP-64B (64 GB) memory card
      • Approx. 140 min with SBS-32G1A (32 GB) memory card
    • SD DVCAM Mode:
      • Approx. 520 min with SBP-128B (128GB) memory card
      • Approx. 260 min with SBS-64G1A/SBP-64B (64 GB) memory card
      • Approx. 260 min with SBS-64G1A/SBP-64B (64 GB) memory card
        *Note:Recording /Playback time may vary the according to the encoding ormemory.
  • Storage Temperature: -4° F to +140° F

Inputs/Outputs

  • Audio Input: XLR-type 3-pin (female) (x2), Line/Mic/Mic +48 V selectable
  • Audio Output: XLR-type 5-pin
  • DC Input: XLR-type 4-pin
  • DC Output: 4-pin
  • Genlock Input: BNC (x1)
  • HDMI Output: A type (x1)
  • MIC: XLR-type 5-pin
  • Remote: 8-pin
  • SDI Output: BNC (x2), HD-SDI/SD-SDI selectable
  • Speaker Output: Monaural
  • Timecode Output: BNC (x1)
  • USB: USB device B Type (x1), host A Type (x1)
  • Video Output: BNC (x1) HD-Y or Analog composite
  • i.LINK: IEEE 1394, 6-pin (x1), HDV (HDV 1080i )/DVCAM stream input/output*, S400
    *Note: HDV/ DV stream input/output are available only in FAT mode. Depending on the connected products, it may not be recorded correctly.

Lens

  • Filter Diameter: M82 mm, pitch 0.75 mm (on lens)
  • Focal Length: f = 5.8 mm to 93 mm (equivalent to 31.4 mm to 503 mm on 35 mm lens)
  • Focus: AF/MF/Full MF selectable 800 mm to 8 (MACRO OFF) 50 mm to 8 (MACRO ON, Wide) 782 mm to 8 (MACRO ON, Tele)
  • Iris: F1.9 to F16 and Close, Auto/Manual selectable
  • Lens Mount: Sony 1/2-inch type bayonet mount
  • Zoom Ratio: 16x (optical), servo/manual (AF lens for PXW-X320)

Monitoring

  • Built-in LCD Monitor: Black & White LCD (Audio level, TC, battery and media remaining capacity)
  • Viewfinder: 3.5-inch* type color LCD monitor: 960 (H) x 540 (V), Quarter HD Size
    *Note: Viewable area measured diagonally.

All information and specifications subject to change without notice.
