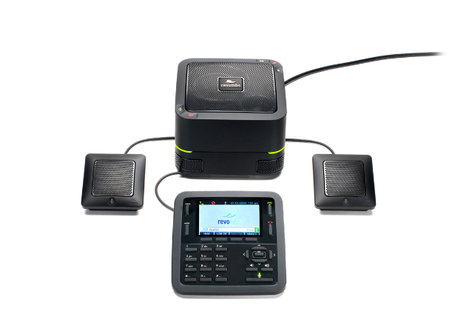

Revolabs FLX™ UC 1500
IP & USB Conference Phone w/Extension Microphones

OUR PART #  10-FLXUC1500

Our Price: $999.00
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Larger conference rooms in the enterprise require additional microphones at the ends of the table to ensure quality call performance. Current solutions for this scenario involve connecting multiple units for additional speaker output and microphone input, which increases the overall system footprint for a minor improvement in audio quality. The Revolabs FLX™ UC 1500, however, provides an answer for the larger conference room by building off the speakerphone capability of the FLX UC 1000 IP & USB Conference phone with two additional directional microphones.

The FLX UC 1500’s integrated SIP technology works in all major telephony environments, whether on premise or in the cloud, and supports all market-leading IP PBX’s. The FLX UC 1500 also integrates with your choice of 3rd party PC applications for collaboration and conferencing. A key benefit of this integration is that the FLX UC 1500 is capable of bridging VoIP Calls and calls via 3rd party softphone applications – allowing your team to communicate using the best medium for collaboration. The FLX UC 1500 offers the most extensible solution for USB, VoIP, and Conference Bridging for Enterprise Conferencing and Collaboration.

In conference rooms sized for up to 18 people, speaker audio can be heard by every meeting participant and fill the entire conference room with audio, courtesy of the FLX UC 1500’s powerful speaker. Every word from the meeting participants is picked up and transmitted to the far end due to the complete 360° coverage of the four built-in directional microphones and additional directional microphone. Participants can communicate naturally as if they are in the same room, and the technology in the FLX UC 1500 supports simultaneous audio play back and capture - ensuring every word is heard.

Built-in digital signal processing separates out the speech of the meeting participant, room noise, and audio from the speaker of the device to ensure only the correct audio is transmitted to the far end. The keypad provides quick access to the key calling features: On-Hook, Off-Hook, Volume Up/Down, Mute, Redial, and Main Menu, with additional context-dependent soft keys, navigational buttons, and telephone keypad for ease of use and dialing.  The intuitive dialer boasts a user-friendly, icon-based menu system on the full color graphics display.

Revolabs FLX UC 1500 Includes:

  • (1) Base Unit
  • (1) Dialer Unit
  • (1) USB Cable, 6.56ft (2.0m)
  • (1) Ethernet Cable, 25ft (7.62m)
  • (2) Directional Extension Microphones
  • (1) Quick Start Guide

Revolabs FLX UC 1500 Features:

  • Base Unit: Capacitive Touch Buttons for On-Hook, Off-Hook, Volume Up/Down, Mute
  • Dialer Keypad: 12-key telephone keypad, 4 context-dependent soft keys, 5 Navigation buttons with select key, On-Hook, Off-Hook, Volume Up/Down, Mute, Redial, Menu
  • Dialer Display: 3.5in diagonal color graphics display, 480x320 pixels
  • User Interface: Date & Time Display, User-configurable Local Contact List, Call History (Missed Calls, Placed Calls, Received Calls), User-Selectable Ring Tones, Unicode UTF-16 Character Support, Multilingual User Interface
  • Extension Mics: Capacitive Touch Button for Mute and Status indicator

Revolabs FLX UC 1500 Specifications:

  • Speaker Elements: Tweeter, Mid-Woofer
  • Speaker Frequency Response: 160Hz - 20kHz
  • Max SPL: 91 dB at 1m
  • Microphones:
    • 4 embedded directional
    • 2 directional extension microphones
    • Microphone Coverage: 360° Audio Pick-Up
    • Microphone Frequency Response: 160Hz - 16kHz
    • Echo Cancellation: Individual AEC per microphone
    • Full Duplex: Yes
  • Interfaces:
    • Power: Power over ethernet (PoE)
    • USB: Mini USB 2.0 Connector
  • Environmental:
    • Operating Temperature: 32 - 104 °F (0-40 °C)
    • Storage Temperature: -22 °F to +131 °F (-30°C to +55 °C)
    • Relative Humidity: 20%-85% (noncondensing)
  • SIP:
    • Call Handling: Make Call, Answer, Hold, Resume, Transfer (Blind and Supervised), Forwarding, Do not disturb, Redial, Call Timer, Call ID, Speed Dial, Missed Call Notifications, Voice Mail Notifications (switch-configured)
    • Call Bridging: Supports Bridging SIP and USB Calls. Join, Split, Hold, Resume, 3+1 Lines: Up to 2 SIP calls, 1 USB call, plus the user
    • Codecs: G.711 (A-law and µlaw), G.722, G.726, G.729
    • DTMF Support: RTP event, SIP in-band, SIP info package support
    • Security: SRTP/SRTCP Support (RFC 1889), IETF SIP support (RFC 3261 and companion RFCs), SSIP, Password protected configuration files, Password protected login, HTTPS Secure Provisioning
    • Network & Provisioning: DHCP or Static IP, Server Based Central Provisioning, Web Portal for Individual Unit Configuration
  • Size, Weight, Power:
    • Base Unit Height: 4.84 in (123mm)
    • Base Unit Width: 5.9 in (150mm)
    • Base Unit Length: 5.9 in (150mm)
    • Dialer Unit Height: 1.6 in (41mm)
    • Dialer Unit Width: 5.2 in (133mm)
    • Dialer Unit Length: 5.3 in (136mm)
    • Weight: 3 lb (1.3kg)
    • Power: IEEE 802.3af Power over Ethernet (PoE)
    • Warranty: 1 year warranty (EU warranty is 2 years)
  • Compliance:
    • Safety:
      • CE Mark: EN 60950
      • IEC 60950
      • UL 60950
      • CSE C22.2, No. 60950
      • AS/NZS 60950
    • EMC:
      • FCC (47 CRF Part 15) Class B
      • ICES-003 Class B
      • EN55022 Class B
      • CISPR22 Class B
      • AS/NZS CISPR22 Class B
      • VCCI Class B
      • EN55024
    • Environmental: RoHS
