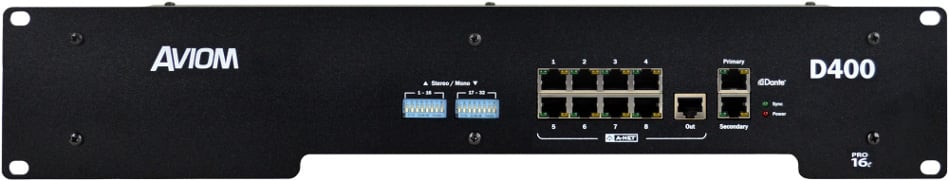

Aviom D400-Dante A-Net Distributor With Dante Connectivity Image 1
Aviom D400-Dante A-Net Distributor With Dante Connectivity Image 2
Pe-91aMrIiU
1 Video
Aviom D400-Dante A-Net Distributor With Dante Connectivity
Our Price: $1,399.00
List Price: $1,799.00
You save 22%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$39/mo* with 36 month financing. ‡
Limited Time. Learn How
More on Order! Item usually available to ship in 10-15 Business days. Place your order now to reserve your place in line. Call our Sales Pros at 800-356-5844.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Robust, reliable connectivity to Dante-enabled consoles or networks.

The Aviom D400-Dante A-Net Distributor features Dante digital audio network connectivity and provides support for parallel connections of up to eight Pro16 devices, including the A360 and A320 Personal Mixers, and legacy products such as the A-16II and A-16R Personal Mixers, along with additional network connectivity options. The D400-Dante allows up to 32 channels to be sent directly from a Dante audio network to A320 and A360 Personal Mixers. Any 32 Dante channels may be selected from the Dante network using the Dante Controller software. The D400-Dante includes eight A-Net outputs designed for use with Aviom Personal Mixers. These eight outputs also include isolated (floating ground) DC power for providing remote power via Cat-5e to Aviom Personal Mixers. In addition, the D400-Dante includes an un-powered A-Net Out, which may be used to connect to additional A-Net Distributors, output modules, or other compatible devices.

Features

  • Direct connectivity to Dante-enabled consoles & audio networks
  • Supports up to 32 Dante network channels
  • Distributes power & audio to up to 8 A320/A360 mixers
  • Un-powered Pro16e A-Net Out for thru connections
  • Assign Stereo Links via DIP switches on front panel

Specifications

  • Dante Interface: 32 channels (44.1/48kHz)
  • Dante Primary I/O: RJ45 connector
  • Dante Secondary I/O: RJ45 connector
  • Dante LEDs Network Activity (green); 1GB Active (yellow)
  • A-Net Out: Pro16e A-Net; RJ45 connector, unpowered
  • A-Net Out to Personal Mixers: Eight RJ45 connectors, powered
  • LEDs: Power On (red); Network Sync (green)
  • Stereo Link: Two 8-position DIP switch blocks (1-16, 17-32)
  • Output Voltage for Personal Mixers: 24VDC, 0.5 amp transmitted over the Cat-5e cable
  • Power Supply: Internal, IEC connector
  • Input Voltage: 115V or 230V (with selector switch), both +15/-22% @ 220W max; 50-60Hz
  • AC Fuse Types:
    • 115V range: T2.5AL/250V
    • 230V range: T1.25AL/250V
  • Dimensions: 19" W x 7.25" D x 3.5" (2RU) H (482.6 x 182 x 88.9 mm)
  • Weight: 12 lbs (5.44 kg)
