Aviom D400
A-Net Distributor

OUR PART #:  D400

The Aviom D400 A-Net® Distributor provides support for parallel connections of up to eight Pro16® devices, including the A360 and A320 Personal Mixers...
Learn More
Our Price: $599.00
List Price: $899.00
You save 33%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Aviom D400
Qty:
In Stock

Similar Products

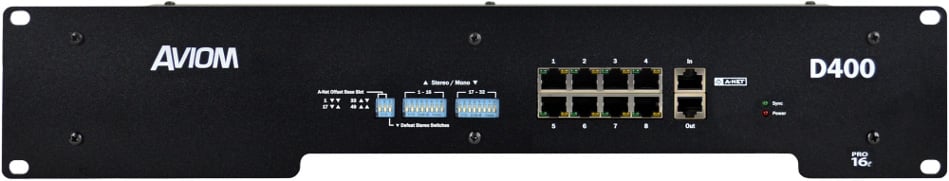

The Aviom D400 A-Net® Distributor provides support for parallel connections of up to eight Pro16® devices, including the A360 and A320 Personal Mixers, and legacy products such as the A-16II and A-16R Personal Mixers, along with additional network connectivity options.

The standard D400 includes a Pro16e™ A-Net input, compatible with all Pro16 Series and Pro16e-capable devices.

The D400 includes eight A-Net outputs designed for use with Aviom Personal Mixers. These eight outputs also include isolated (floating ground) DC power for providing remote power via Cat-5e to Aviom Personal Mixers. In addition, the D400-Dante includes an unpowered A-Net Out, which may be used to connect to additional A-Net Distributors, output modules, or other compatible devices.

The 2RU D400 is powered by an internal power supply, with a detachable power cord and IEC power inlet on the rear panel. A rear-panel switch sets the unit for 115V or 230V operation. All network connections on the D400 use RJ45 connectors.

There is no limit practical to the number of D400 A-Net Distributors that can be used in an A-Net network, and the D400 is compatible with all Pro16 Series devices.

Aviom D400 Features:

  • Distributes power and audio to up to eight A320 and A360 Personal Mixers
  • One unpowered Pro16e A-Net Out for thru connections
  • A-Net Offset switches to set the range of Pro16e network slots to be sent to Personal Mixers
  • Stereo Link DIP switches simplify stereo channel assignments
  • Supports legacy A-16II and A-16R Personal Mixers

Aviom D400 Specifications:

  • A-Net Input: Pro16e A-Net; RJ45 connector
  • A-Net Offset Base Slot: 3-position DIP switch selects the starting channel that Personal Mixers will receive from the network (1, 17, 33, or 49)
  • A-Net Out: Pro16e A-Net; RJ45 connector, unpowered
  • A-Net Out to Personal Mixers: Eight RJ45 connectors, powered
  • LEDs: Power On (red); Network Sync (green)
  • Stereo Link: Two 8-position DIP switch blocks (1-16, 17-32)
  • Output Voltage for Personal Mixers: 24VDC, 0.5 amp transmitted over the Cat-5e cable
  • Power Supply: Internal, IEC connector
  • Input Voltage: 115V or 230V (with selector switch), both +15/-22% @ 220W max; 50-60Hz
  • AC Fuse Types:
    • 115V range: T2.5AL/250V
    • 230V range: T1.25AL/250V
  • Dimensions: 19" W x 7.25" D x 3.5" (2RU) H (482.6 x 182 x 88.9 mm)
  • Weight: 12 lbs (5.44 kg)
