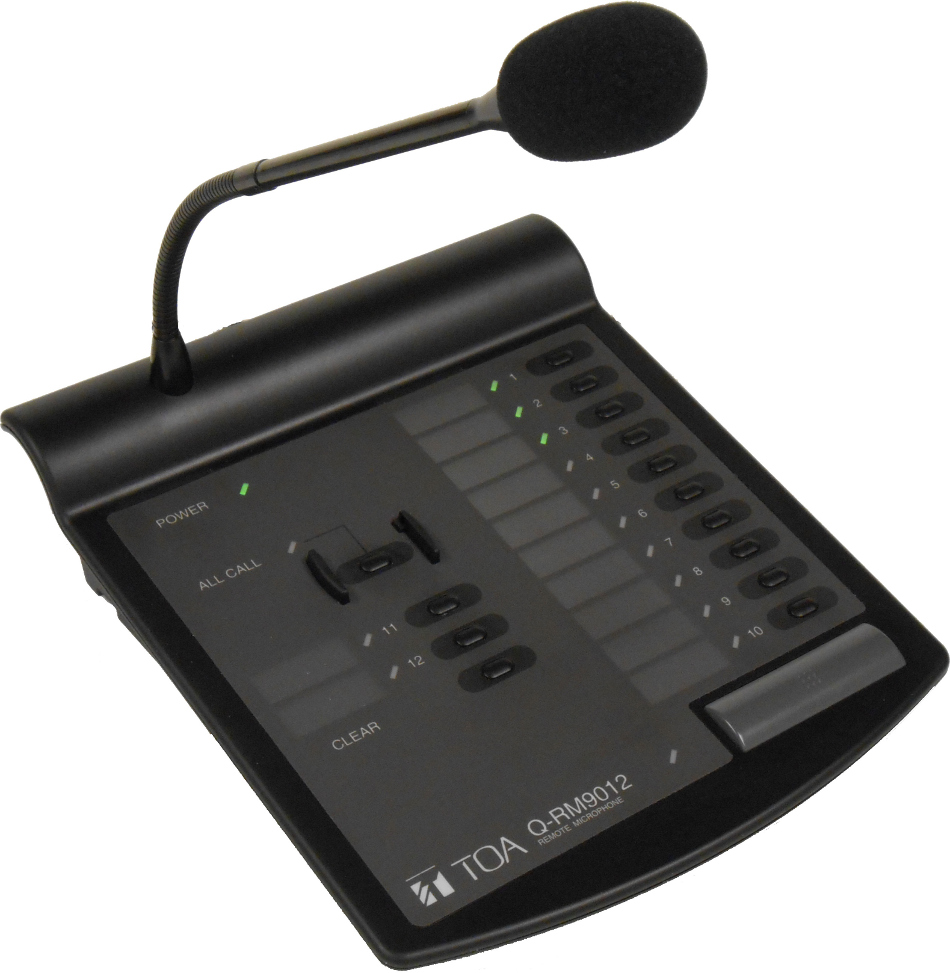

TOA Q-RM9012PS
Remote Paging Mic w/Power Supply

OUR PART #  Q-RM9012PS

Our Price: $344.49
List Price: $426.31
You save 19%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The TOA Q-SS9012PS Multi-Zone Speaker Selector is a remote microphone used in conjunction with 9000M2 series mixer amplifiers or other paging equipment. Output is up to 12 contact closures together with balanced audio signal in order to initiate/terminate the paging.

This unit has 2 amplifier inputs and 12 individual relay switches to select the amplifier connected to each 12 speaker line/zone. This allows up to 12 zones for paging and BGM distribution with a dual-channel amplifier or simple paging system with only a one-channel amplifier. This concept offers a real cost effective multi-zone paging system. The unit requires DC 24V power supply (AC Adaptor, AD-246 or equivalent)

TOA Electronics Q-SS9012PS Features:

  • Simple, low-cost solution for multi-zone paging with minimal equipment
  • Works with 9000M2 GUI software v2.0
  • Speaker selector: Q-SS9012PS
  • New 9000M2 Software:
    • In Paging Matri: Paging sync function allows up to 12 synchronized contact-outputs along with each page event
    • Each sync point controls an independent C-OUT connection, which in turn activates the independent speaker outputs on the Q-SS9012PS
    • AD-246 24VDC Power Supply included with each unit
  • High-sensitivity electret-condenser gooseneck mic for clear voice
  • 12 zone select buttons, All Call, Clear
  • 12 Contact Outs corresponding to buttons (RJ-45 connector for use with shielded Cat5 wiring)
  • Connects to C-IN on 9000M2 (mainframe & equipped with C-001T)

TOA Electronics Q-SS9012PS Specifications:

  • Power Source: 24 V DC from AC adaptor AD-246 or the equivalent
  • Power Consumption: 80mA or less
  • Audio Output: 0 dB (*1), 600 Ohm, transformer balanced, RJ45 connector
  • Distortion: 1% or less
  • Frequency Response: 100Hz - 20kHz
  • S/N Ratio: 60dB or more
  • Microphone: Unidriectional
  • Control Output: 12 channels, open collector output, withstand voltage: 27V DC, control current: max 50mA
    • (2) RJ45 connectors
  • Number of Keys: 12 zone selection keys, All call key, Cancel key, Talk key
  • Volume Control: Microphone volume control
  • Operating Temperature: -10°C to +40°C (14°F to 104°F)
  • Finish: ABS resin, Black
  • Dimensions: 190 (W) x 76.5 (H) x 215 (D) mm (Gooseneck microphone excluded)
  • Weight: 750g
  • Option: AC Adaptor: AD-246

TOA Q-RM9012PS
Remote Paging Mic w/Power Supply

OUR PART #  Q-RM9012PS

Product Information:

The TOA Q-SS9012PS Multi-Zone Speaker Selector is a remote microphone used in conjunction with 9000M2 series mixer amplifiers or other paging equipment. Output is up to 12 contact closures together with balanced audio signal in order to initiate/terminate the paging.

This unit has 2 amplifier inputs and 12 individual relay switches to select the amplifier connected to each 12 speaker line/zone. This allows up to 12 zones for paging and BGM distribution with a dual-channel amplifier or simple paging system with only a one-channel amplifier. This concept offers a real cost effective multi-zone paging system. The unit requires DC 24V power supply (AC Adaptor, AD-246 or equivalent)

TOA Electronics Q-SS9012PS Features:

  • Simple, low-cost solution for multi-zone paging with minimal equipment
  • Works with 9000M2 GUI software v2.0
  • Speaker selector: Q-SS9012PS
  • New 9000M2 Software:
    • In Paging Matri: Paging sync function allows up to 12 synchronized contact-outputs along with each page event
    • Each sync point controls an independent C-OUT connection, which in turn activates the independent speaker outputs on the Q-SS9012PS
    • AD-246 24VDC Power Supply included with each unit
  • High-sensitivity electret-condenser gooseneck mic for clear voice
  • 12 zone select buttons, All Call, Clear
  • 12 Contact Outs corresponding to buttons (RJ-45 connector for use with shielded Cat5 wiring)
  • Connects to C-IN on 9000M2 (mainframe & equipped with C-001T)

TOA Electronics Q-SS9012PS Specifications:

  • Power Source: 24 V DC from AC adaptor AD-246 or the equivalent
  • Power Consumption: 80mA or less
  • Audio Output: 0 dB (*1), 600 Ohm, transformer balanced, RJ45 connector
  • Distortion: 1% or less
  • Frequency Response: 100Hz - 20kHz
  • S/N Ratio: 60dB or more
  • Microphone: Unidriectional
  • Control Output: 12 channels, open collector output, withstand voltage: 27V DC, control current: max 50mA
    • (2) RJ45 connectors
  • Number of Keys: 12 zone selection keys, All call key, Cancel key, Talk key
  • Volume Control: Microphone volume control
  • Operating Temperature: -10°C to +40°C (14°F to 104°F)
  • Finish: ABS resin, Black
  • Dimensions: 190 (W) x 76.5 (H) x 215 (D) mm (Gooseneck microphone excluded)
  • Weight: 750g
  • Option: AC Adaptor: AD-246
