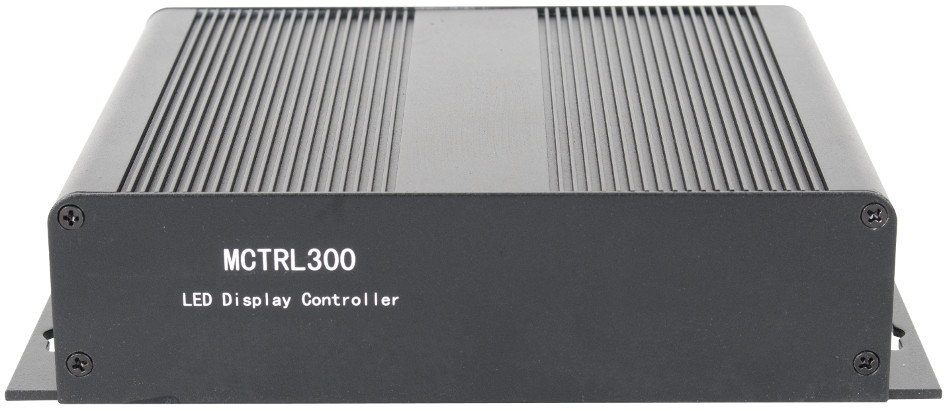

ADJ MCTRL300
AV6 LED Video Display Controller Sending Unit

OUR PART #:  MCT-RL300

ADJ offers the MCTRL300 is a standard NovaStar controller for AV6 Video Wall panels ( sold separately ).
Learn More
Our Price: $829.99
List Price: $1,099.95
You save 25%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

ADJ MCTRL300
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

ADJ offers the MCTRL300 is a standard NovaStar controller for AV6 Video Wall panels (sold separately).

ADJ MCTRL300 Features:

  • USB control
  • 1.3-megapixel capacity
  • 8-Bit video depth

ADJ MCTRL300 Specifications:

General

  • ADJ Part ID: MCT300

Video

  • Format: RGB
  • Supported Video Resolutions:
    • 1280×1024
    • 1024×1200
    • 1600×848
    • 1920×712
    • 2048×668

Interfacing

  • Inputs/Outputs:
    • 1x DVI video input
    • 1x 3.5mm audio input
    • 2x Ethernet port output (RJ45/Fiber-optic)
    • 1x USB control interface-can be cascaded for uniform control
    • 1x light sensor interface
    • 1x Independent power supply
    • 2x serial ports (UART OUT\UART IN) for cascading by USB cable

Physical

  • Dimensions (overall): approx. 6.5" x 8.2" x 2" (160mm x 208mm x 48mm)
  • Weight 3.9 lbs. (1.75kg)

Electrical

  • Rated supply voltage AC: 220 V
  • Rated current: 0.5 A
  • Rated power: 2.5 W

Working Environment

  • Temperature: -20°C~75°C
  • Humidity: 0%~95%

All information and specifications subject to change without notice.
