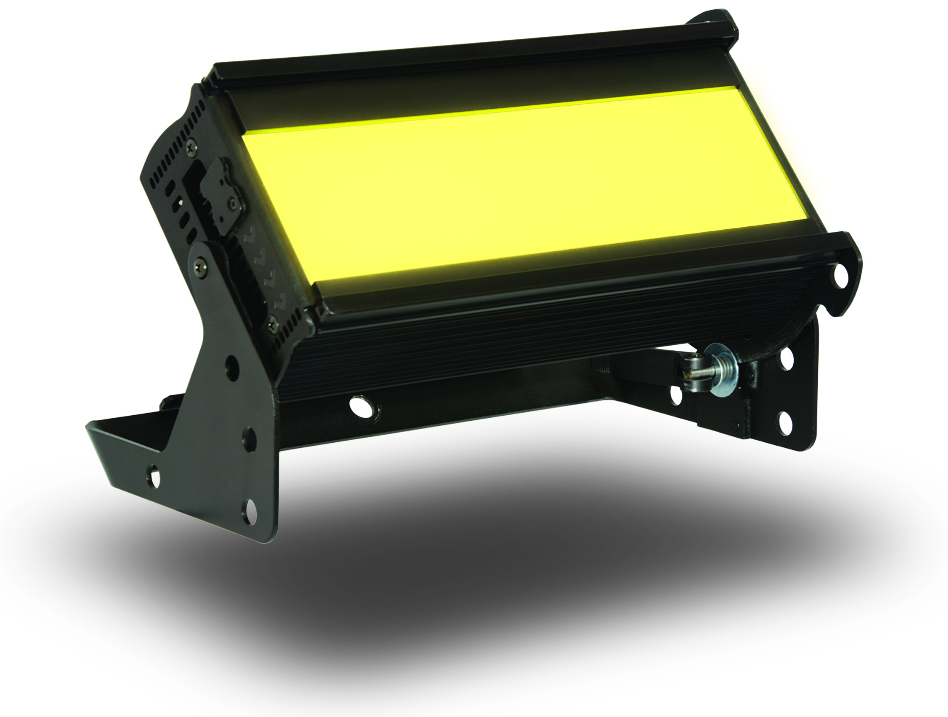

Chroma-Q Studio Force T Phosphor DC 12
Battery-Powered Extreme Output Tungsten White Phosphor LED Fixture


Chroma-Q®'s Studio Force T Phosphor™ DC 12 is a 3,200K CCT...
Learn More
Our Price: $1,842.75
List Price: $1,950.00
You save 6%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Chroma-Q Studio Force T Phosphor DC 12
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Chroma-Q®'s Studio Force T Phosphor™ DC 12 is a 3,200K CCT, tungsten white fixture which utilizes innovative LED technologies found in the Studio Force™ range to provide an equivalent soft edge output to a fluorescent fixture - up to 8,120 lumens - developed specifically for use in TV, film and broadcast studio environments. Other features include an extremely smooth uniform wash, extra soft beam, theatrical grade dimming, laboratory calibration to match Black Body Locus. Designed for practicality, the unit is equipped with a manual control mode, color touch screen interface, fanless, studio & full modes for maximum control of the units and a range of optional accessories. This model is the DC battery-powered version of the Studio Force T 12 Phosphor series.

Studio Force T Phosphor DC 12 Package Includes:

  • Chroma-Q® Studio Force T Phosphor DC 12 Fixture
  • Yoke
  • 3-Foot PowerCON® to Male Edison Tail

Chroma-Q Studio Force T Phosphor DC 12 Key Features:

  • 3,200K CCT tungsten white
  • Extreme output – up to 8,120 lumens
  • Extra soft beam – very wide output
  • Extremely smooth, uniform wash
  • Theatrical grade dimming
  • Ideal for film and studio applications
  • Factory calibrated to match Black Body Locus
  • 335mm / 13.2" length ideal for floor, wall, or truss mounting
  • Camera-friendly
  • PowerCON® input and output for easy daisy chaining of fixtures
  • Broad range of accessories available, including barn door and spigot adaptor
  • Fanless, studio & full control modes
  • Intuitive color touch screen interface
  • Flat end plates for seamless wall-washing
  • Built-in power supply
  • Hidden quick release fixings
  • Rugged extruded aluminum body

Chroma-Q Studio Force T Phosphor DC 12 Technical Specifications:

  • Product Code: CHSFTPDC12N
  • Dimensions: approx. 13.2"x 7.5" x 8.6" (335mm x 190mm x 218mm)
  • Weight: 9 lbs. (4 kgs)
  • Shipping Dimensions: 17" x 13.5" x 11" (432mm x 343mm x 279mm)
  • Shipping Weight  13 lbs. (6 kgs)
  • Power Supply: Built-in/DC 12V Battery-powered
  • Power Input Rating*: 100-240V AC, 50-60 Hz, 160VA
  • Power Factor*: 0.998
  • Power Consumption*: 150W
    *Typical Power & Current  Measurements done with all LEDs at maximum intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
  • Power Connector In/Out: PowerCON
  • Data Connectors In/Out: XLR 5-pin
  • Control Protocol: ANSI E1.11 USITT DMX 512-A
  • Cooling System: Forced - 1 fan
  • Operating Temperature: 0° C to 40° C
  • Construction: Anodized aluminum extrusion
  • Color: Black
  • Built-In Hardware: Quick release lever for tilt adjustment
  • IP Rating: IP20
  • Approvals: CISPR 22/EN55022 & CISPR 24/EN55024, ICES- 003 & FCC Part 15 Subpart B, CSA C22. No.166- M1983:R2008 UL 1573:2010; UL 8750:2009

Chroma-Q Studio Force T Phosphor DC 12 Control/Photometric Data

  • LED Engines: 2
  • LEDs Per Engine: 24 Blue LEDs
  • Total LEDs: 48
  • Control Modes:
    • 1 channel Level
    • 1 channel Look Sel
    • Manual/Mstr
    • Slave
    • Look Store
  • Dimming Curve: Theatrical
  • Variable Effects Engine: N/A
  • Effects Parameters: N/A
  • Hot Lumen Output: 8,120
  • Optics: Remote phosphor panel
  • Beam Angle: Softlight
  • Beam Distribution: Symmetrical direct illumination
  • CCT: 3,200K (+/- 200K)
  • Color Gamut: Performance enhanced
  • CRI: 80
  • Lamp Life: L70 at 50,000 hours
