Product Overview

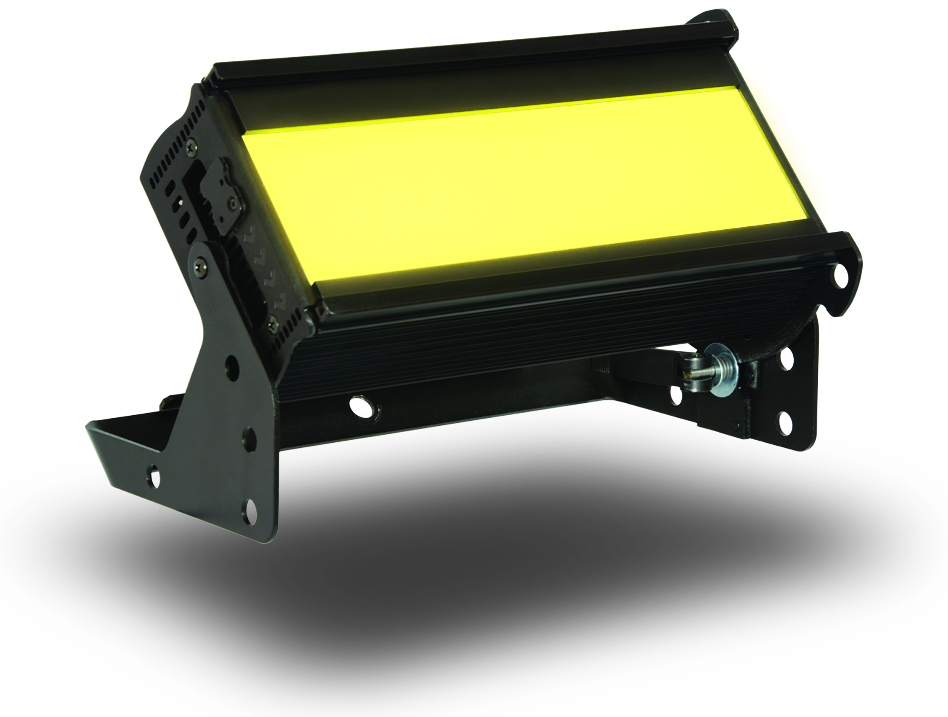

Chroma-Q®'s Studio Force T Phosphor™ 12 is a 3,200K CCT, tungsten white fixture which utilizes innovative LED technologies found in the Studio Force™ range to provide an equivalent soft edge output to a fluorescent fixture - up to 8,120 lumens - developed specifically for use in TV, film and broadcast studio environments. Other features include an extremely smooth uniform wash, extra soft beam, theatrical grade dimming, laboratory calibration to match Black Body Locus. Designed for practicality, the unit is equipped with a manual control mode, color touch screen interface, fanless, studio & full modes for maximum control of the units and a range of optional accessories.
Studio Force T Phosphor 12 Package Includes:
- Chroma-Q®'s Studio Force T Phosphor™ 12 Fixture
- Yoke
- 3-Foot PowerCON® to Male Edison Tail
Chroma-Q Studio Force T Phosphor 12 Key Features:
- 3,200K CCT tungsten white
- Extreme output – up to 8,120 lumens
- Extra soft beam – very wide output
- Extremely smooth, uniform wash
- Theatrical grade dimming
- Ideal for film and studio applications
- Factory calibrated to match Black Body Locus
- 335mm / 13.2" length ideal for floor, wall, or truss mounting
- Camera-friendly
- PowerCON® input and output for easy daisy chaining of fixtures
- Broad range of accessories available, including barn door and spigot adaptor
- Fanless, studio & full control modes
- Intuitive color touch screen interface
- Flat end plates for seamless wall-washing
- Built-in power supply
- Hidden quick release fixings
- Rugged extruded aluminum body
Chroma-Q® Studio Force T Phosphor 12 Technical Specifications:
- Product Code: CHSFTP12
- Dimensions: approx. 13.2"x 7.5" x 8.6" (335mm x 190mm x 218mm)
- Weight: 9 lbs. (4 kgs)
- Shipping Dimensions: 17" x 13.5" x 11" (432mm x 343mm x 279mm)
- Shipping Weight 13 lbs. (6 kgs)
- Power Supply: Built-in
- Power Input Rating*: 100-240V AC, 50-60 Hz, 160VA
- Power Factor*: 0.998
- Power Consumption*: 150W
- *Typical Power & Current Measurements done with all LEDs at maximum intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
- Power Connector In/Out: PowerCON
- Data Connectors In/Out: XLR 5-pin
- Control Protocol: ANSI E1.11 USITT DMX 512-A
- Cooling System: Forced - 1 fan
- Operating Temperature: 0° C to 40° C
- Construction: Anodized aluminum extrusion
- Color: Black
- Built-In Hardware: Quick release lever for tilt adjustment
- IP Rating: IP20
- Approvals: CISPR 22/EN55022 & CISPR 24/EN55024, ICES- 003 & FCC Part 15 Subpart B, CSA C22. No.166- M1983:R2008 UL 1573:2010; UL 8750:2009
- Chroma-Q® Studio Force T Phosphor™ 12 Control/Photometric Data
- LED Engines: 2
- LEDs Per Engine: 24 Blue LEDs
- Total LEDs: 48
- Control Modes:
- 1 channel Level
- 1 channel Look Sel
- Manual/Mstr
- Slave
- Look Store
- Dimming Curve: Theatrical
- Variable Effects Engine: N/A
- Effects Parameters: N/A
- Hot Lumen Output: 8,120
- Optics: Remote phosphor panel
- Beam Angle: Softlight
- Beam Distribution: Symmetrical direct illumination
- CCT: 3,200K (+/- 200K)
- Color Gamut: Performance enhanced
- CRI: 80
- Lamp Life: L70 at 50,000 hours
