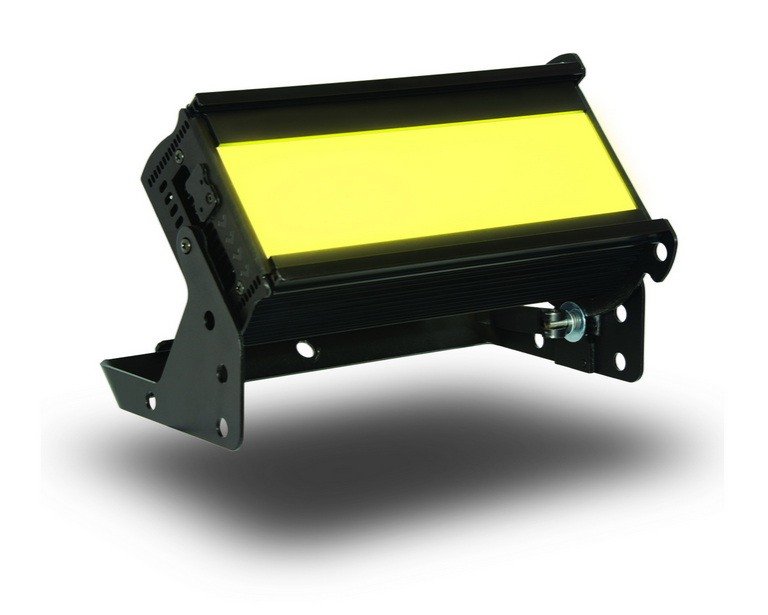

Chroma-Q Studio Force D 12 Phosphor
Extreme Output Daylight White Phosphor LED Fixture


The Chroma-Q® Studio Force D 12 Phosphor™ is a 5,600K CCT...
Learn More
Our Price: $1,372.50
List Price: $1,525.00
You save 10%!
Write the first review.
Chroma-Q Studio Force D 12 Phosphor
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Chroma-Q® Studio Force D 12 Phosphor™ is a 5,600K CCT, daylight white fixture which utilises innovative LED technologies found in the Studio Force™ range to provide an equivalent soft edge output to a fluorescent fixture - up to 8,210 lumens - developed specifically for use in TV, film and broadcast studio environments. Other features include an extremely smooth uniform wash, extra soft beam, theatrical grade dimming, laboratory calibration to match Black Body Locus. Designed for practicality, the unit is equipped with a manual control mode, color touch screen interface, the unit is fanless, contains studio & full modes for maximum control of the units and a range of optional accessories.

Chroma-Q Studio Force D 12 Phosphor Features:

  • 5,600K CCT daylight white
  • Extreme output – up to 8,210 lumens
  • Extra soft beam – very wide output
  • Extremely smooth, uniform wash
  • Theatrical grade dimming
  • Ideal for film and studio applications
  • Factory calibrated to match Black Body Locus
  • 335mm / 13.2" length ideal for floor, wall or truss mounting
  • Camera friendly
  • PowerCon input and output for easy daisy chaining of fixtures
  • Broad range of accessories available, including barndoor and spigot adaptor
  • Fanless, studio & full control modes
  • Intuitive color touch screen interface
  • Flat end plates for seamless wall-washing
  • Built-in power supply
  • Hidden quick release fixings
  • Rugged extruded aluminium body
  • Also available as a DC battery-powered version

Chroma-Q Studio Force D 12 Phosphor Specifications:

  • Product Code: CHSFDP12
  • Dimensions*: 13.2"x 7.5" x8.6" (335mm x 190mm x 218mm)
  • Weight: 9lbs (4kgs)
  • Shipping Dimensions: 17" x13.5" x 11" (432mm x 343mm x 279mm)
  • Shipping Weight: 13lbs (6kgs)
  • Power Supply: Built-in
  • Power Input Rating: 100-240V AC, 50-60 Hz, 160VA
  • Power Factor: 0.998
  • Power Consumption: 150W
  • Typical Power & Current: Measurements done with all LEDs at maximum intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
  • Power Connector In/Out: PowerCon
  • Data Connectors In/Out: XLR 5-pin
  • Control Protocol: ANSI E1.11 USITT DMX 512-A
  • Cooling System: Forced - 1 fan
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Construction: Anodised aluminium extrusion
  • Color: Black
  • Built-In Hardware: Quick release lever for tilt adjustment
  • IP Rating: IP20
  • Approvals: CISPR 22/EN55022 & CISPR 24/EN55024, ICES- 003 & FCCPart 15 Subpart B, CSA C22. No.166- M1983:R2008 UL 1573:2010; UL 8750:2009

NOTE: *For exact measurements please refer to the line drawings found in the product data sheet in the documentation tab above.

  • Control & Photometric Data:
    • LED Engines: 2
    • LEDs Per Engine: 24 Blue LEDs
    • Total LEDs: 48
    • Control Modes: 1 channel Level, 1 channel Look Sel, Manual/Master, Slave, Look Store
    • Dimming Curve: Theatrical
    • Variable Effects Engine: N/A
    • Effects Parameters: N/A
    • Hot Lumen Output: Up to 8,210
    • Optics: Remote phosphor panel
    • Beam Angle: Softlight
    • Beam Distribution: Symmetrical direct illumination
    • CCT: 5600K (+/- 200K)
    • Color Gamut: Performance enhanced
    • CRI: Up to 71
    • Lamp Life: L70 at 50,000 hours
