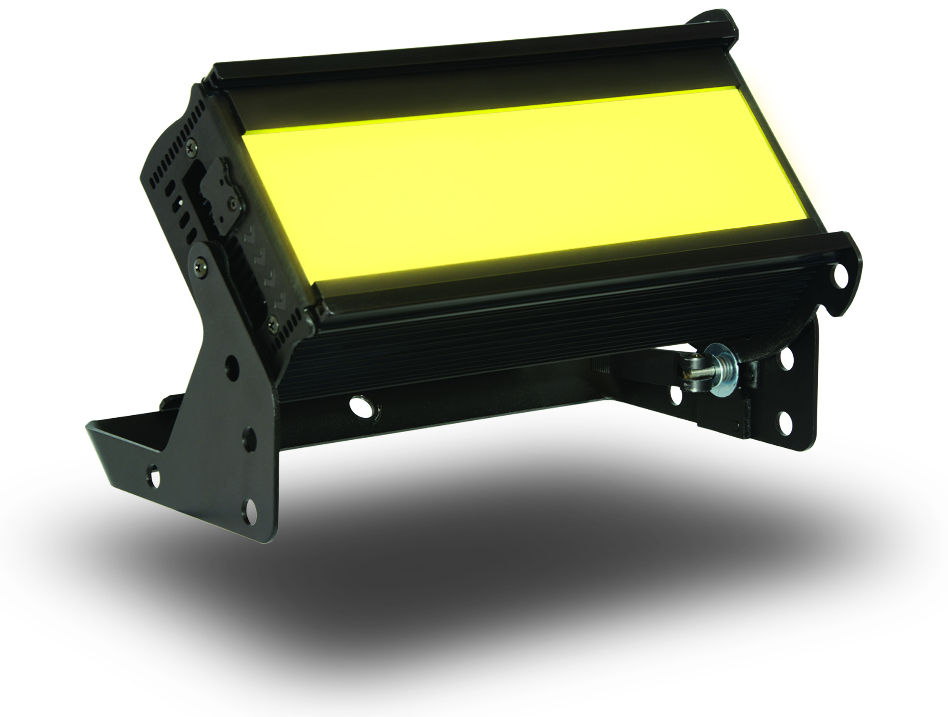

Chroma-Q Studio Force V 12 Phosphor DC 12
Battery-Powered Extreme Output Variable White Phosphor LED Fixture


The Chroma-Q® Studio Force V 12 Phosphor™ DC 12 is a 3,200 - 5,600K CCT...
Learn More
Our Price: $1,755.00
List Price: $1,950.00
You save 10%!
Write the first review.
Chroma-Q Studio Force V 12 Phosphor DC 12
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Chroma-Q® Studio Force V 12 Phosphor™ DC 12 is a 3,200 - 5,600K CCT, variable white fixture which utilizes innovative LED technologies found in the Studio Force™ range to provide an equivalent soft edge output to a fluorescent fixture - up to 4,200 lumens - developed specifically for use in TV, film and broadcast studio environments. Other features include fine-tuning of the green & magenta tints and frequency for camera, an extremely smooth uniform wash, extra soft beam, theatrical-grade dimming, and laboratory calibration to match Black Body Locus. Designed for practicality, the unit is equipped with a manual control mode, color touchscreen interface, fanless, studio & full modes for maximum control of the units, and a range of optional accessories. This model is the DC battery-powered version of the Studio Force V 12 Phosphor series.

Chroma-Q® Studio Force V 12 Phosphor DC 12 Includes:

  • Studio Force V 12 Phosphor DC 12 Fixture
  • Yoke
  • 3-Foot PowerCON® to Male Edison Tail

Chroma-Q® Studio Force V 12 Phosphor DC 12 Key Features:

  • Extreme Output - With an extreme output of up to 4,200lumens, the Studio Force V 12 Phosphor packs an impressive punch for its size.
  • Multi-purpose - The Studio Force V 12 Phosphor isspecifically designed for film and studio soft lighting applications.
  • Color - The Studio Force Phosphor range includesColorSure™ technology for enhanced consistency across each light engine andwhen using multiple fixtures.
  • Optics & Dimming - The Studio Force Phosphor range’scamera friendly custom optical design provides a smooth, uniform output,matched by theatrical-grade dimming.
  • Practical & Mechanical - On the outside, the StudioForce V 12 Phosphor has been designed to provide maximum versatility and easeof use. The fixture features a color touchscreen interface for easy operationand a full manual control mode.
    The built-in power supply, hidden quickrelease fittings requiring no tools, and PowerCON plus 5-pin DMX connectionsin and out provide fast deployment and easy cable management.
  • Additional Features:
    • 3,200 - 5,600K CCT variable white
    • Fanless, Studio & Full modes for maximum control
    • Variable frequency
    • Extra soft beam – very wide output
    • Equal to or better output alternative to fluorescent
    • Factory calibrated to match Black Body Locus
    • Rugged, extruded aluminum body
    • Flat end plates for seamless wall-washing
    • 335mm / 13.2" length ideal for floor, wall, or truss mounting
    • Camera-friendly
    • PowerCON input and output for easy daisy chaining of fixtures
    • Toolless yoke adjustment
    • Broad range of accessories available, including barn door and spigot adaptor (sold separately-contact your Sales Professional for more information)

Chroma-Q® Studio Force V 12 Phosphor DC 12 Specifications:

  • Product Code: CHSFVPDC12N
  • Dimensions*: approx. 13.2"x 7.5" x 8.6" (335mm x 190mm x 218mm)
    *Forexact measurements please refer to the line drawings found in the product datasheet and manuals included under the "Documents" tab.
  • Weight: 9 lbs. (4 kg)
  • Shipping Dimensions: 17" x 13.5" x 11" (432mm x 343mm x 279mm)
  • Shipping Weight: 13 lbs. (6 kg)
  • Power Supply: Built-in/DC battery-powered
  • Power Input Rating: 100-240V AC, 50-60 Hz, 160VA
  • Power Factor: 0.998
  • Power Consumption: 150W
  • Typical Power & Current: Measurements done with all LEDs at maximumintensity. Measurements made at nominal voltage. Allow for a deviation of +/-10%.
  • Power Connector In/Out: PowerCON
  • Data Connectors In/Out: XLR 5-pin
  • Control Protocol: ANSI E1.11 USITT DMX 512-A
  • Cooling System: Forced - 1 fan
  • Operating Temperature: 32° F to 104° F (0°C to 40°C)
  • Construction: Anodized aluminium extrusion
  • Color: Black
  • Built-In Hardware: Quick-release lever for tilt adjustment
  • IP Rating: IP20
  • Approvals: CISPR 22/EN55022 & CISPR 24/EN55024, ICES- 003 :2004 &FCC Part 15 Subpart B: 2007, CSA C22. No.166-M1983:R2008 UL 1573:2010; UL8750:2009

Chroma-Q® Studio Force V 12 Phosphor Control/Photometric Data:

  • LED Engines: 2
  • LEDs Per Engine: 30 (6 x RGA; 12 x B)
  • Total LEDs: 60
  • Control Modes:
    • 3-channel KHL
    • 4-channel RGWA
    • 1-channel Look Sel
    • Manual/Mstr
    • Slave
    • Look Store
  • Dimming Curve: Theatrical
  • Variable Effects Engine: N/A
  • Effects Parameters: N/A
  • Hot Lumen Output (Combined): 4,202 @ 5600K; 1,751 @ 3200K
  • Optics: Remote phosphor panel
  • Beam Angle: Softlight
  • Beam Distribution: Symmetrical direct illumination
  • CCT: 3200K - 5600K (+/- 200K)
  • Color Gamut: Performance enhanced
  • CRI: Up to 91*
    *Preliminary Values
  • Lamp Life: L70 at 50,000 hours
