18" Dual Passive Subwoofer System

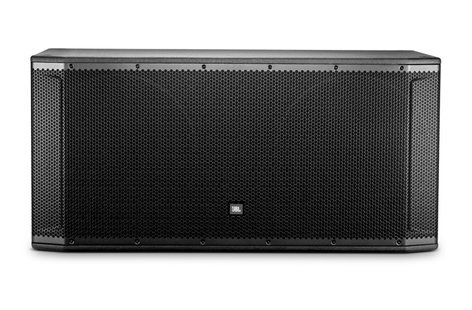

The JBL  SRX828S is a dual 18” subwoofer for concert, touring, or installed use.
Learn More
Our Price: $1,599.00
List Price: $1,999.00
You save 20%!
Write the first review.
Usually ships in 7-14 business days.

Related Products

The JBL  SRX828S is a dual 18” subwoofer for concert, touring, or installed use. Featuring a wide stance for splaying top boxes, indexing feet for stacking in both the standard and cardioid position, and a 141dB max SPL, the SRX828S is an ideal solution for musicians, bands, and DJs, concert use, public speaking, or installations such as performance venues, corporate spaces, educational facilities or houses of worship. Tunings and presets are available for Crown ITech HD and XTI 2 amps as well as dbx VENU360 signal processors.

JBL  SRX828S Applications:

  • Live performance systems
  • Mobile and fixed DJ systems
  • Sound system rental and tour
  • Permanent installations

JBL  SRX828S Features:

  • Premium JBL Transducers
  • Rugged, versatile enclosures
  • Tunings available for Crown amps and dbx signal processors
  • Fully supported in Audio Architect
  • Power Handling: 4800W Peak, 2400W Program, 1200W Continuous
  • Frequency Range: 30Hz-150Hz
  • Frequency Response: 47Hz-150Hz
  • Max SPL: 141dB
  • Amplification options: Passive
  • 2x 2279 LF 8 Ohm 18” Woofer

JBL  SRX828S Specifications:

  • System Type: Passive dual 18”, subwoofer system
  • Maximum SPL Output: 141dB
  • Frequency Range (-10dB): 30hz - 150hz
  • Frequency Response (- 3dB): 47hz - 150hz
  • Sensitivity (1W/1m): 96dB
  • System Power Rating: 4800W Peak, 2400W Program, 1200W Continuous
  • Nominal Impedance: 4 Ohm
  • Connectors: NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)
  • Operational Modes: Passive
  • LF Driver: (2x) 2279H
  • Crossover Frequency: 80hz
  • Enclosure Material: 18mm plywood
  • Casters: Accepts JBL WK-4S Kit
  • Handles: 8
  • Finish: Obsidian Duraflex™ finish
  • Grille: Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing
  • Dimensions (L x W x H): 26.79 x 47.42 x 22.57" (681 x1205 x 574 mm)
  • Weight: 137.0 lbs (62.1g)
  • Shipping Weight: 147.0 (66.5kg)
