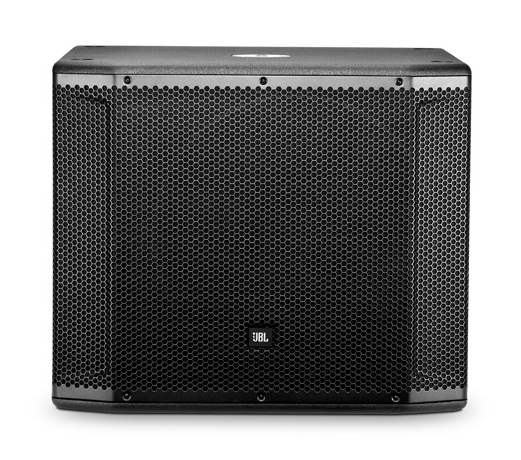

JBL SRX818S
18" Passive Subwoofer System

OUR PART #:  SRX818S

The JBL SRX818S is a single 18” subwoofer for concert, touring, or installed use.
Learn More
Our Price: $1,199.00
List Price: $1,499.00
You save 20%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

JBL SRX818S
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The JBL SRX818S is a single 18” subwoofer for concert, touring, or installed use. Featuring a standard M20 pole cup for use with top boxes, indexing feet for stacking in both the standard and cardioid position, and a 136dB max SPL, the SRX818S is an ideal solution for musicians, bands, and DJs, concert use, public speaking, or installations such as performance venues, corporate spaces, educational facilities or houses of worship. Tunings and presets are available for Crown ITech HD and XTI 2 amps as well as dbx VENU360 signal processors

JBL SRX818S Features:

  • Premium JBL Transducers
  • Rugged, versatile enclosures
  • Tunings available for Crown amps and dbx signal processors
  • Fully supported in Audio Architect
  • Power Handling: 2400W Peak, 1200W Program, 600W Continuous
  • Frequency Range: 28Hz-150Hz
  • Frequency Response: 45Hz-150Hz
  • Max SPL: 135dB
  • Amplification options: Passive
  • 2279 LF 8 Ohm 18” Woofer

JBL SRX818S Specifications:

  • System Type: Passive 18”, subwoofer system
  • Maximum SPL Output: 135 dB
  • Frequency Range (-10dB): 28hz - 150hz
  • Frequency Response (- 3dB): 45hz - 150hz
  • Sensitivity (1W/1m): 96dB
  • System Power Rating: 2400W Peak , 1200W Program, 600W Continuous
  • Nominal Impedance: 8 Ohm
  • Connectors: NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)
  • Operational Modes: Passive
  • LF Driver: 2279H
  • Crossover Frequency: 80hz
  • Enclosure Material: 18mm plywood
  • Suspension/Mounting: M20 Threaded Pole Mount
  • Casters: Accepts JBL WK-4S Kit
  • Handles: 4
  • Finish: Obsidian Duraflex™ finish
  • Grille: Powder coated, Obsidian, 14-gauge perforatedsteel with acoustically transparent black cloth backing
  • Dimensions (L x W x H): 26.89 x 26.92 x 22.62" (683 x684 x 575mm)
  • Weight: 78.0 lbs (35.4kg)
  • Shipping Weight: 88 lbs (40.2kg)
