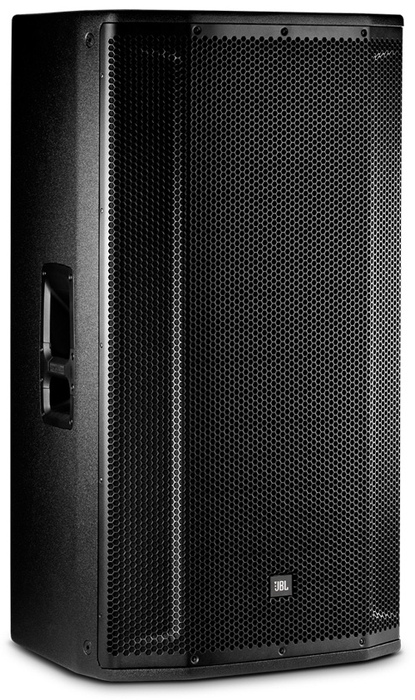

JBL SRX835 15" 3-Way Bass Reflex Passive Loudspeaker

A three-way full range speaker, the JBL SRX835 comes with a 15" woofer, and is designed for use as a medium-duty main PA, or rear or side fill. It features M10 suspension points, a standard 35mm pole cup, and feet for both floor-standing and subwoofer standing functionality. The SRX835 is a great solution for bands, musicians, DJs, concert use, as well as public speaking or installations such as performance venues, corporate spaces, educational facilities, or houses of worship. Tunings for Crown ITech HD and XTI 2 amps, plus dbx VENU360 signal processors are all available.

Every detail in the SRX800 Series was thought through and purposefully designed with full consideration for its intended use. It includes ergonomically designed handles that support an easy, non-fatiguing grip, for streamlined handling. M10 suspension points, indexed feet, and pole/tripod mounts support a wide and versatile range of configurations.

Incorporating 3" voice coils with lower mass ferrite magnets for reduced weight, JBL's patented Differential Drive® Technology ferrite drivers offer increased power handling, exceptionally low distortion, and extended low frequency response. The JBL 2432H is the only neodymium 3" voice coil compression driver in this class, delivering very high power levels, as well as smooth, crystal clear sound.

Applications

• Live performance systems.
• Mobile and fixed DJ systems.
• Sound system rental and tour.
• Permanent installations.

Features

• Premium JBL Transducers
• Rugged, versatile enclosures
• Tunings available for Crown amps and dbx signal processors
• Fully supported in Audio Architect
• Power Handling: 3200W Peak, 1600W Program, 800W Continuous
• Frequency Range: 32Hz-20kHz
• Frequency Response: 43Hz-20kHz
• Max SPL: 137dB
• Coverage Pattern: 60x40
• Amplification options: Passive/Bi-Amp
• (2) Ergonomically designed carrying handles

Specifications

• System Type: Passive 15", three-way, bass-reflex
• Maximum SPL Output: 137dB
• Frequency Range (-10dB): 32hz - 20khz
• Frequency Response (- 3dB): 43hz - 17khz
• Sensitivity (1W/1m): 95dB
• System Power Rating: 3200W Peak, 1600W Program, 800W Continuous
• Nominal Impedance: 8 Ohm
• Connectors: NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)
• Operational Modes: Passive/Bi-Amp
• LF Driver: 2275F
• MF Driver: 2107H
• HF Driver: 2432H
• Coverage Pattern: 60 x 40
• Crossover Frequency: 330hz & 2.4khz
• Enclosure Material: 18mm plywood
• Suspension/Mounting: Single 36mm pole socket, 12 x M10 Suspension points
• Finish: Obsidian Duraflex™ finish
• Grille: Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing
• Dimensions: (L x W x H) 18.74" L x 21.4" W x 38.74" H (476mm x 544mm x 984mm)
• Weight: 95.0 lbs (43.1kg)
