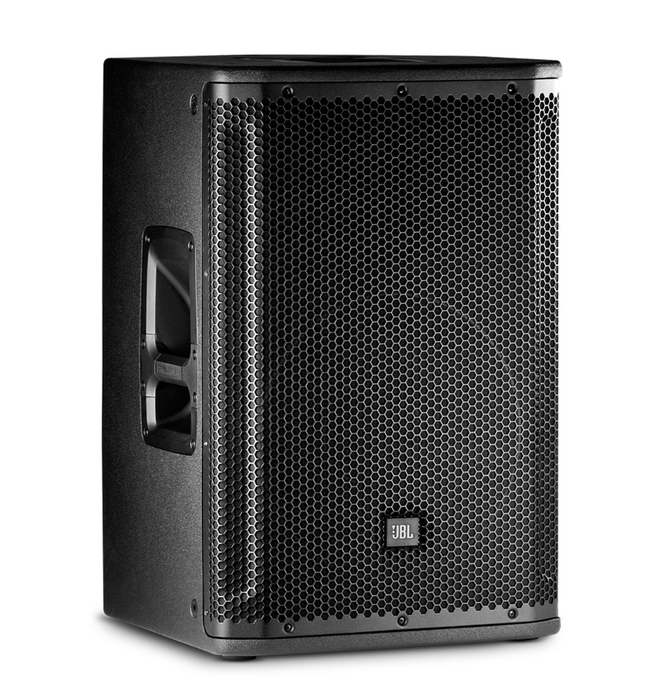

JBL SRX815
15" 2-Way Passive Loudspeaker

OUR PART #:  SRX815

The JBL SRX815 is a two-way full range passive portable speaker with a 15” woofer made for use as a light to medium duty main PA, monitor, or rear or side fill.
Learn More
Our Price: $999.00
List Price: $1,249.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

JBL SRX815
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The JBL SRX815 is a two-way full range passive portable speaker with a 15” woofer made for use as a light to medium duty main PA, monitor, or rear or side fill. Featuring M10 suspension points and feet for both floor standing and monitor use, the SRX815 is an ideal solution for musicians, bands, and DJs, concert use, public speaking, or installations such as performance venues, corporate spaces, educational facilities or houses of worship.Tunings and presets are available for Crown ITech HD and XTI 2 amps as well as dbx VENU360 signal processors.

Applications:

  • Live performance systems.
  • Mobile and fixed DJ systems.
  • Sound system rental and tour.
  • Permanent installations.

JBL SRX815 Features:

  • Premium JBL Transducers
  • Rugged, versatile enclosures
  • Tunings available for Crown amps and dbx signal processors
  • Fully supported in Audio Architect
  • Power Handling: 3200W Peak, 1600W Program, 800W Continuous
  • Frequency Range: 41Hz-20kHz
  • Frequency Response: 56Hz-20kHz
  • Max SPL: 136dB
  • Coverage Pattern: 90 x 50
  • Amplification options: Passive/Bi-Amp

JBL SRX815 Specifications:

  • System Type: Passive 15”, two-way, bass-reflex
  • Maximum SPL Output: 136dB
  • Frequency Range (-10dB): 41hz - 20khz
  • Frequency Response (- 3dB): 56hz - 20khz
  • Sensitivity (1W/1m): 95dB
  • System Power Rating: 3200W Peak, 1600W Program, 800W Continuous
  • Nominal Impedance: 8 Ohm
  • Connectors: NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)
  • Operational Modes: Passive/Bi-Amp
  • LF Driver: 2275H
  • HF Driver: 2432H
  • Coverage Pattern: 90 x 50
  • Crossover Frequency: 1.9khz
  • Enclosure Material: 18mm plywood
  • Monitor Angle: 50°
  • Suspension/Mounting: Dual 36mm pole socket, 12 x M10 Suspension points
  • Handles: 3
  • Finish: Obsidian Duraflex™ finish
  • Grille: Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing
  • Dimensions (LxWxH): 18.82" x 18.03" x 27.20" (478mm x 458mm x 691mm)
  • Weight: 57.0 lbs (25.9kg)
  • Shipping Weight: 67.0 lbs (30.4kg)
