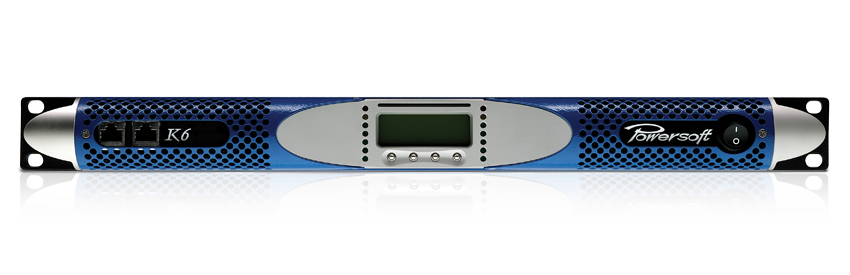

Powersoft Advanced Tech K6 DSP+AESOP
2-Channel, 1300W Power Amp w/DSP+Aesop

OUR PART #  DIGAM-K6-DSP-AESOP

Our Price: $5,319.00
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Powersoft K6 fills an important space in modern tour sound amplification, yet it takes up little room in its single rack space chassis. This two-channel, 1300 watt power amp is stable with 2Ohm loads and fits subs in smaller systems, as well as lows and mids in larger setups. The K6 can be upgraded to a K8 - without a replacing the entire amplifier - via a Step-Up card that offers more power with a safe investment.

The K Series is used worldwide by touring and event sound companies, and it's preferred among top-ranking system designers, sound engineers, and system techs, giving them reliable premier-grade power and headroom in the smallest possible package size.

Fully digitally controlled and with a serial PC communication port as standard, the K6 is also available with KDSP board and KAESOP Ethernet/AES3 interface. The K6 DSP+AESOP amounts to a fully integrated, highly sophisticated yet easy to use power source including sound shaping and system management capabilities - remotely controllable via Powersoft's Armonía Pro Audio Suite™ (Interface available for MediaMatrix, Crestron, AMXcontrol, Q-SYS and monitoring systems).

Powersoft K6 DSP+AESOP Features:

  • Power supply:
    • Advanced switch-mode worldwide operating power supply technology for high performance and compact size
    • Power Factor Correction PFC for extremely low mains consumption and extremely wide mains operating range
    • Low Inrush Limiting reduces AC inrush current, removing the need for expensive power sequencers
  • Protections:
    • Fully protected circuit design with:
    • Ac protection: shut down power supply when AC mains voltage is outside operating range
    • Clip limiter: prevents severely clipped waveforms from reaching loudspeakers, while still maintaining full peak power output
    • DC protection: protects against infrasonic signal at the outputs
    • VHF protections: protects the loudspeakers against non audible, strong, non musical high frequency signals
    • Short circuit protection: protects the amplifier from short circuit or other stressful events for the output circuits with automatic protection reset
    • Long term limiter: protects the loudspeaker against steady long term rms (non audio) signals reducing maximum output
    • Thermal protection: output stages operating temperature up to 80 °C (176 °F)
    • Temperature controlled continous variable speed fan, front to back airflow
    • Temperature forecast with LCD traced historical behaviour
  • General:
    • Fixed frequency switchmode output stage for high grade sound accuracy
    • Compact size - all models only 1 RU for reduced rack cost and space
    • Light weight - for easier racking and shipping: 12 kg (26.5 lbs) according to configuration
    • Combo XLR/6.3mm jack Neutrik input connectors with link capability
    • AES3 digital input*
  • Settings:
    • LCD matrix interactive display
    • Comprehensive-user friendly front panel display menu
    • Built-in defeatable clip limiters for each channel
    • Digital gain-attenuator control
    • Defeatable gate selection for each channel
    • User selectable gain/sensitivity
    • User selectable maximum output power for each channel
    • User selectable maximum mains current draw
    • Lockable set-up by user selectable access key code
    • Built in remote control via the RS-485 interface provides full diagnostic, operational setting and system monitoring
  • Monitoring:
    • Hardware monitor available for fast local diagnostic
    • Load impedance measurement / display for each channel
    • Output power measurements / display for each channel
    • Mains voltage and current measurements / display
    • Downloadable log file of functional fault events with time related trace
    • Smart Card settings, parameters and upgrades functionality
  • Digital Signal Processing*:
    • Analog Devices SHARC® DSP architecture
    • AD/DA converter: dual 24bit @ 96 kHz Tandem® architecture, 127 dB dynamic range, per channel
    • Input/output independent equalizers per channel providing PEQ, raised cosine, shelving IIR filters as well as custom output FIR filters
    • Delay up to 1 s for time alignment
    • Active DampingControl™ for cable compensation
    • Power limiter (TruePower™, RMS voltage, RMS current) + Peak Limiter
  • Remote management*:
    • Control and monitoring through Armonía Pro Audio Suite™
    • Interface available for MediaMatrix, Crestron, AMXcontrol, Q-SYS and monitoring systems
      *= DSP+AESOP version

Powersoft K6 DSP+AESOP Specifications:

  • Number of channels: 2
  • AC Main Power
  • Power supply: Universal, regulated switch mode with PFC (Power FactorCorrection)
  • Nominal power requirement: 100-240 V ±10%, 50-60 Hz
  • Operating voltage: 90 V - 264 V
  • Operating temperature range: - 32° - 113° F (0° - 45° C)
  • Frequency response  20 Hz - 20 kHz (±0.5 dB) @ 1 W, 8 O
  • S/N ratio  > 110 dB (20 Hz - 20 kHz, A weighted)
  • Crosstalk separation  > 66 dB @ 1kHz
  • THD+N: 0.5% from 1 W to full power (typically)
  • IMD: 0.5% from 1 W to full power (typically)
  • Input impedance: 10 kOhm balanced
  • Slew rate: 50 V/µs @ 8Ohm, input filter bypassed
  • Damping factor: > 5000 @ 20-200 Hz
  • DSP:
    • DSP architecture: Analog Devices SHARC® DSP
    • AD Converter: Dual 24-bit 96 kHz Tandem® architecture with 127 dBA of dynamic range and THD
    • DA Converter: Dual 24-bit 96 kHz Tandem® architecture with 122 dBA of dynamic range and THD
    • Internal precision: 40-bit floating point
    • Firmware: Network upgradable firmware
    • Memory/presets: 8 MB (RAM) plus 2 MB flash for presets / 50 stored locally + 150 stored on Smart Card
    • Latency: 6.0 ms fixed latency architecture
    • Input equalizer: Three layers (PEQ, raised cosine, shelving), 32 filters each + group filters, up to 256 filters total
    • Output equalizer: 16 fully parametric filters per channel, IIR: peaking, hi/lo-shelving, hi/lo-pass, band-pass, band-stop, all-pass.
    • Custom FIR up to 384 taps @ 48 or 96 kHz
    • Crossover: Butterworth, Linkwitz-Riley, Bessel: 6 dB/oct to 48 dB/oct (IIR), linear phase (FIR), hybrid (FIR-IIR)
    • Delay: up to 4 s on input section; up to 32 ms per output, sample-by-sample stepping
    • Limiters: Power limiter, TruePower™, RMS voltage, RMS current + Peak limiter
    • Damping control: Active DampingControl™
  • Front Panel:
    • Indicators and Controllers:
      • 2 x LED bar - Signal level and over-temperature protection
      • 4 x Push-button - Setting operating parameters
      • 1 x Display - Settings and monitoring
      • 1 x Power switch
  • Connectors:
    • AC main: 1 x AMP CPC 45A connector - 45 A max (region-specific power cord provided)
    • Audio signal input: 2 x Combo Jack/XLR-F - Signal input
    • 1 x Analog/Digital input - Switchable Analog line/AES3 digital input on channel 2
    • Remote command: 1 x 2 pin Phoenix MC 1.5/2-ST-3.81 - Remote line/aux switch
    • Loudspeakers: 2 x speakON - Neutrik NL4MD
  • Network/data:
    • 2 x RJ45 socket - Ethernet + AESOP connection (DSP+AESOP version only)
    • 2 x RJ45 socket - Ethernet + AESOP connection (DSP+AESOP version only)
    • 1 x RJ45 socket - RS485 data connection (non-DSP version)
  • Rear Panel:
    • Indicators and Controllers:
      • 1 x Push-button - Link channel pair
      • 1 x Push-button - Toggle ANALOG input/AES3 input on selected connector
  • Construction:
    • Dimensions (L x H x W): 19.0" x 1.8" x 18.7" (483 x 44.45 x 475 mm)
    • Weight: 26.5 lb (12 kg)
      *Data is subject to change without notice
