Turbosound TCX-10
2-Way, 10" LF, 1" HF Speaker

OUR PART #  TCX-10

Our Price: $449.99
List Price: $517.49
You save 13%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

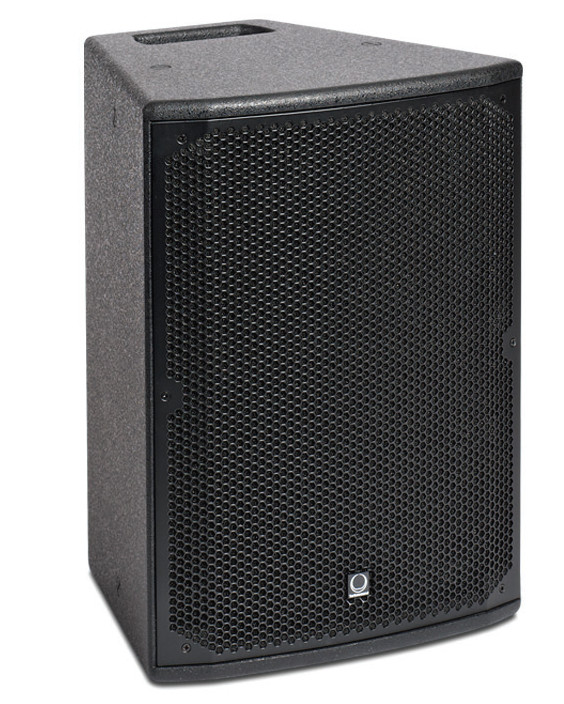

The Turbosound TCX-10 is a passive two-way loudspeaker consisting of a 10” low frequency driver and a 1” high frequency compression driver on a Converging Elliptical Waveguide™ in a trapezoidal enclosure. When permanently installed the cabinet presents a discreet appearance with no visible side handles, while for portable applications the pole mount blanking plug can be removed for use with speaker stands and poles, and a single carrying handle is provided for transportation.

Turbosound's TCX-10 features a Converging Elliptical Waveguide, generating a smooth wavefront while giving excellent pattern control. The waveguide is rotatable through 90°, allowing a swap of the horizontal and vertical dispersion patterns. The cabinet includes internal threaded rigging points for use with Turbosound wall and ceiling brackets, and OmniMount™ loudspeaker brackets. It is finished as standard in black textured paint (or optional white), and the rear panel provides two Speakon NL4 connectors wired in parallel with a 4-way barrier strip connector.

When used with optional Turbosound Loudspeaker Management Systems, TCX loudspeakers can be controlled and monitored over a BVNet network using TurboDrive™ control software.

Turbosound TCX-10 Features:

  • Compact passive two-way loudspeaker
  • Rotatable converging ellipical waveguide
  • Trapezoidal cabinet
  • Pole mount socket
  • Internal rigging points

Turbosound TCX-10 Specifications:

  • Net weight: 29.7lbs
  • Dimensions: 19.4" x 14.6" x 13.1"
  • Components: 1 x 10" LF driver, 1 x 1" HF driver on a converging elliptical waveguide
  • Frequency response: 100Hz - 20kHz +/- 3dB, 68Hz-10kHz+/-10dB
  • Dispersion: 90°H x 60°V @ -6dB points
  • Power handling: 250W continuous, 500W program
  • Impedance: 8 ohms
  • Sensitivity: 95dB, 1w @ 1m
  • Calculated maximum SPL: 119dB continuous, 125dB peak
  • Construction: Birch plywood, finished in black semi-matte textured paint
  • Grill: Powder coated perforated mild steel
  • Connectors: 2x Neutrik Speakon NL4MPs, 1x 4-waybarrier strip
  • Available Colors: Black, White
