Yorkville YX10SP 10", 250W Powered Speaker

OUR PART #: YX10SP MFR #: YX10SP

Copied to clipboard

Yorkville's ultra compact 200-watt YX10SP is the perfect subwoofer solution for small live sound or PA installations where additional low frequency support is needed. ...Read more

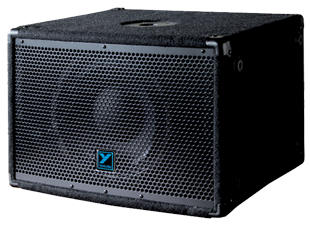

Yorkville YX10SP 10", 250W Powered Speaker Image 1
Yorkville YX10SP 10", 250W Powered Speaker Image 2
Yorkville YX10SP 10", 250W Powered Speaker Image 3
Yorkville YX10SP 10", 250W Powered Speaker
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Yorkville's ultra compact 200-watt YX10SP is the perfect subwoofer solution for small live sound or PA installations where additional low frequency support is needed. This subwoofer is designed to be the ideal companion for the YX10P powered full range cabinet, and uses a high efficiency front mounted 10-inch woofer to deliver solid, even bass response.

Technology - Yorkville's YX Series powered subwoofers are designed for ease of use across many applications, and use proven amplifier topologies, integrated crossovers and innovative input design that allows for direct connection to line or speaker level sources. Integrated pole mount adaptor allows full range loudspeakers like this to be raised above the crowd easily and effectively with a simple subwoofer stand or speaker pole.

Designed with working musicians in mind, the YX subwoofers use all metal bar handles, metal input plate, integrated speaker mounts and a custom punched, perforated metal grille to protect the speaker.

Yorkville YX10SP Features:

  • 200 Watt Integrated Class-D Amplifier
  • 10-inch Long Excursion Woofer
  • Maximum SPL: 120dB (Continuous)
  • Integrated 80Hz Crossover Outputs
  • Balanced Inputs and Outputs
  • Integrated Bar Handles & Top Speaker Mount

Yorkville YX10SP Specifications:

  • System Type: Subwoofer
  • Active or Passive: Active
  • Program Power (Watts): 200 Watts
  • Max SPL (dB): 120 dB (Continuous)
  • Frequency Response (Hz +/- 3dB): 50-150Hz
  • Crossover Frequency (Hz): 80Hz
  • Driver Configuration: 10-inch ceramic
  • Inputs: 1 x Combi-Jack (l/mono) 1 x XLR (right)
  • Mixer Controls: Gain Control, Ground Lift, Integrated Crossover (80Hz High Pass Output for Top Cabinets)
  • Other Controls / Features: 2 x XLR Link Thru / 2 x XLR High Pass (80Hz crossover)
  • Corners: Metal
  • Feet: Rubber
  • Bar Handles: 2 (sides)
  • Pole Mount Adapter (1 3/8"-3.5cm): Yes (Top)
  • Enclosure Materials: MDF
  • Baffle Material: MDF
  • Grille: Custom Punched Black Perforated Metal
  • Covering / Finish: Black Ozite
  • Dimensions (DWH xbackW, inches): 16.5 x 18.5 x 13.25
  • Dimensions (DWH xbackW, cm): 41.9 x 47 x 33.7
  • Weight (lbs/kg): 38 / 17.3
  • *Specifications subject to change without notice
