FOR-A Corporation HVS-390HS 2M/E Type C
28 Button HD-SD Video Switcher Package

OUR PART #:  HVS-390HS-2M/E-C

The FOR-A HVS-390HS 2M/E Type C Video Switcher Package includes a Hanabi HD/SD 2M/E Switcher, an HVS-392OU 28-Button Panel, 16 HD/SD-SDI Inputs...
Learn More
Similar Products

The FOR-A HVS-390HS 2M/E Type C Video Switcher Package includes a Hanabi HD/SD 2M/E Switcher, an HVS-392OU 28-Button Panel, 16 HD/SD-SDI Inputs, 8 HD/SD-SDI and 1 HDMI Outputs, Frame Synchronizer on each Input, 4 Channels of Resize Engine, a Maximum of 24 Inputs, 13 Outputs, 4 Keyers with 2.5D DVE per M/E, 2 Chroma Keyers, 2 Independent 16 Channel Multi Viewer Outputs, 4 Still Stores, 60 Frame Clip Player and Redundant Power Supplies.

The HANABI HVS-390HS 2M/E is switchable to 2.5M/E, with the additional bus being controlled by either the (included) Web browser control, or an (optional) control panel. With the HVS-390HS, there is no compromise offering up to 3 different control panels and up to 5 remote AUX control panels that can be used all at the same time.

You can choose what size or type of control you prefer and what fits your environment. From the 19” rack mount 12 button panels (1M/E or 2M/E), all the way up to the operator designed 2M/E 28 button panel. As well as traditional control panels, there is also the choice of simple remote panel, included Web browser control, and FOR-A's range of AUX control panels. All control choices are easy to operate, for safe, reliable and repeatable LIVE operation.

FOR-A HVS-390HS 2M/E Type C Includes:

  • HVS-390MU2ME ("Hanabi" HD/SD 2M/ESwitcher)

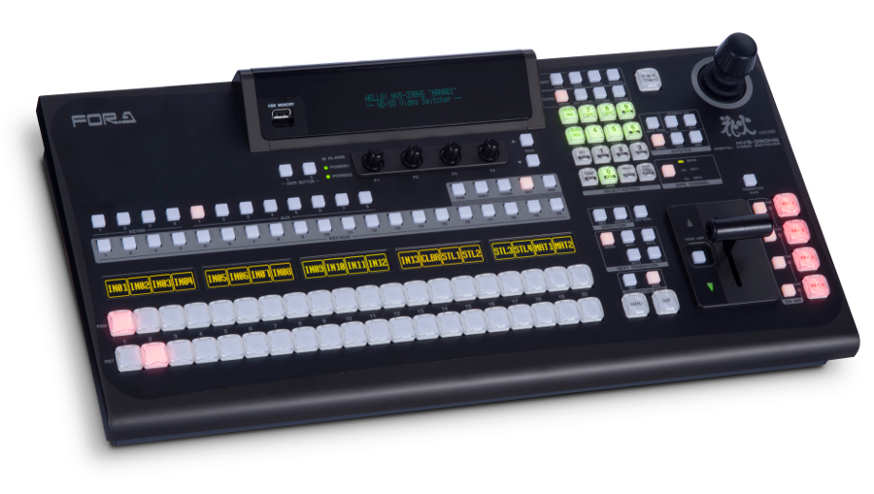

  • HVS-392OU (28 Button Panel)
  • HVS-39PSO (Redundant Power Supply for Operation Unit)
  • HVS-39PSM (Redundant Power Supply for Main Unit)

FOR-A HVS-390HS 2ME Type C Features:

  • Standard Features Include:
    • 4 x Keyers on each M/E, including 2 high quality Chroma keyers, can be used as keyers and/or Picture in Picture
    • Freely assign up to 4 x keyers to an AUX output or M/E output (2 from M/E 1, 2 from M/E 2)
    • All keyers include DVE with resize and perspective/tilt, etc. (2.5D)
    • 2 x 3D DVEs on each M/E for background and keyer transitions
    • CG Wipe engine on each M/E offering animated wipe/mix transitions
    • ‘Next transition’ including direction for all keyers and background on each M/E, as well as FOR-A’s On-Air programmable transition section
    • Included Web Browser GUI gives total control and set up from a connected device such as PC, Mac, or Tablet, etc.
    • FTP access for stills and clip sequences, plus built-in USB for stills
    • Increase the number of stills by using spare inputs as extra still stores
    • The Web Browser provides an easy way to edit: Macros, Event Memories and key-frame sequences
    • Industry leading color correction with 2 per M/E, assignable for inputs or entire bus
    • 4 clip store capability with up to 60 frames in each clip store (HVS-39MEM option provides 120 frames)
    • Option to save stills and clips to internal memory (HVS-39MB)
    • Redundant PSU for both Main and Control Panel available, hot-swappable from the front of the MU
    • Safe-area generator and audio monitoring are selectable and adjustable per window on internal multi-viewer layouts
    • 2 x Multi-viewer outputs in HD Mode, each with selectable layouts
    • Standard interface for multiple external device control, including audio mixers, routers, and VTR/VDCP units via RS-422 and VDCP
    • Individually switchable frame synchronizer on each input
    • 4 x Upconverters are standard—expandable to 12
    • 16 inputs are standard, expandable to 24 with optional HD/SD-SDI, DVI, VGA, composite or component cards
    • 8 outputs plus 1 x HDMI output are standard, expandable to 13 with optional HD/SD-SDI, DVI, VGA, composite or component cards
    • Depending on configuration and usage, HVS-390HS has a minimum delay of 1 line in HD
    • Up to 100 m BNC cable can be used to connect Mainframe and control panel
    • Dedicated Black Burst or Tri-Level sync output

FOR-A HVS-390HS 2M/E Type C Specifications:

  • Please consult the data sheet available in the"Documentation" tab.
