Quam SYSTEM 19/MP
2'x2' Tile Replacment Speaker System

OUR PART #  SYSTEM-19/MP

Our Price: $130.28
List Price: $177.73
You save 27%! (Low Price Guarantee)
In Stock

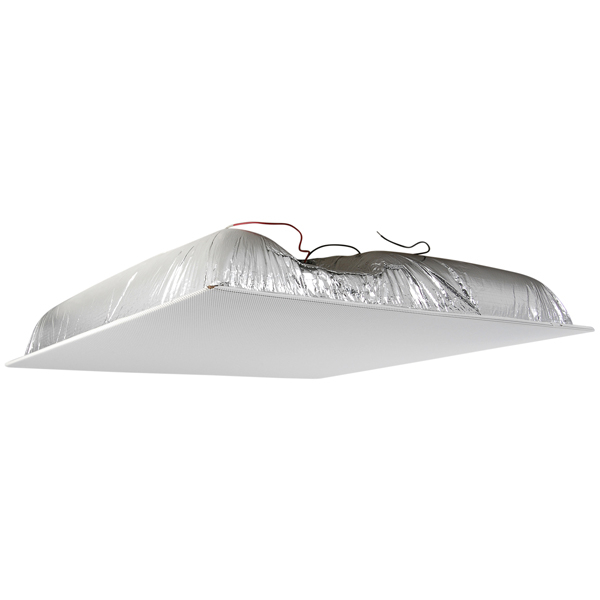

Quam's SYSTEM 19/MP is a complete, 2-way, shallow depth, lightweight, 2' x 2' ceiling tile replacement loudspeaker system consisting of an 6-1/2" O.D. LF woofer, 1" tweeter, and a 20W-70V rotary select transformer including an 8 Ohm tap.

Its molded-fiber enclosure is 1412 CID, and has a MicroPerf, steel baffle with four (4) seismic tie-off points. There is no assembly required - with a cable clamp included - and the system can be mounted parallel to floor plane in a 24" wide suspended ceiling-tile grid.

The system is intended for use in indoor environments - particularly program material that includes signal tones, voice, and music.

Quam SYSTEM 19/MP Specifications:

  • Audio Specifications:
    • Average Sensitivity: 95 dB SPL, 1W/1M
    • Loudspeaker Power Rating: 20W RMS EIA 426A Standard
    • Calculated Output: 108 dB-SPL 20W/1M
    • Magnet Type & Weight: BeFe Ceramic, 10 oz. Nominal
    • Frequency Response: 40 Hz - 20 kHz EIA 426A Standard
    • Nominal Coverage Angle: 100° Included Angle -6 dB / 2 kHz, Half space
    • Audio Connection: 12” Leads
    • Unit Weight: 7.85 Lbs
  • System Components:
    • Loudspeaker: 6-1/2” O.D Woofer, 1” Dome Tweeter
    • Transformer: 20W-70V : 5 tap + 8 Ohm, Rotary Select (20W, 10W, 5W, 2.5W, 1.25W, 8 Ohm)

Quam SYSTEM 19/MP
2'x2' Tile Replacment Speaker System

OUR PART #  SYSTEM-19/MP

Product Information:

Quam's SYSTEM 19/MP is a complete, 2-way, shallow depth, lightweight, 2' x 2' ceiling tile replacement loudspeaker system consisting of an 6-1/2" O.D. LF woofer, 1" tweeter, and a 20W-70V rotary select transformer including an 8 Ohm tap.

Its molded-fiber enclosure is 1412 CID, and has a MicroPerf, steel baffle with four (4) seismic tie-off points. There is no assembly required - with a cable clamp included - and the system can be mounted parallel to floor plane in a 24" wide suspended ceiling-tile grid.

The system is intended for use in indoor environments - particularly program material that includes signal tones, voice, and music.

Quam SYSTEM 19/MP Specifications:

  • Audio Specifications:
    • Average Sensitivity: 95 dB SPL, 1W/1M
    • Loudspeaker Power Rating: 20W RMS EIA 426A Standard
    • Calculated Output: 108 dB-SPL 20W/1M
    • Magnet Type & Weight: BeFe Ceramic, 10 oz. Nominal
    • Frequency Response: 40 Hz - 20 kHz EIA 426A Standard
    • Nominal Coverage Angle: 100° Included Angle -6 dB / 2 kHz, Half space
    • Audio Connection: 12” Leads
    • Unit Weight: 7.85 Lbs
  • System Components:
    • Loudspeaker: 6-1/2” O.D Woofer, 1” Dome Tweeter
    • Transformer: 20W-70V : 5 tap + 8 Ohm, Rotary Select (20W, 10W, 5W, 2.5W, 1.25W, 8 Ohm)
