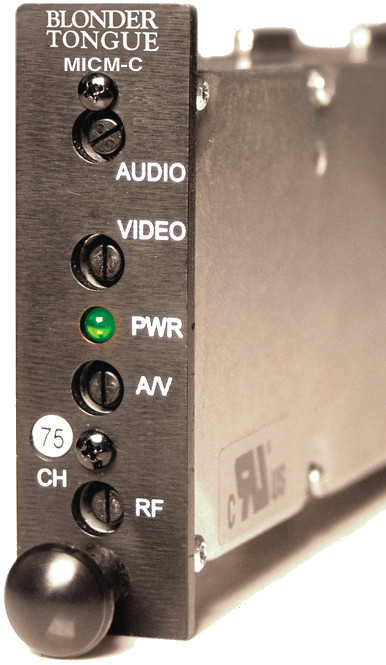

Blonder-Tongue MICM-45C
45 dBmV Channelized A/V Modulator

OUR PART #:  MICM-45C

Selected Model Price: $160.54
List Price: $162.00
Write the first review.
Blonder-Tongue MICM-45C
Select a Model: (shipping times are approximate)
Qty:

Similar Products

The Blonder Tongue MICM-45C is a channelized heterodyne A/V modulator that provides modulated RF carrier output on any single  VHF channel including:

  • Broadcast TV (2-13)
  • CATV (14-135)

The MICM-45C is great for placing audio and video onto any unused VHF channel. Any standard audio/video source can be used, such as satellite receivers, television cameras, video tape recorders, or television demodulators. The MICM-45 utilizes SAW filtering with FCC group delay pre-distortion to provide true vestigial sideband selectivity which makes it perfect for use in adjacent channel systems. The MICM-45C takes baseband audio and video and modulates these signals onto the desired output channel.

The MICM-45 meets FCC Docket 21006 aeronautical frequency offset requirements (┬▒5 kHz video carrier accuracy). The modulator accepts standard polarity (sync negative) video in the range of 0.7 to 2.5 V pp. It has field defeatable audio pre-emphasis to provide stereo compatibility with any external BTSC stereo generator providing a composite stereo baseband output.
