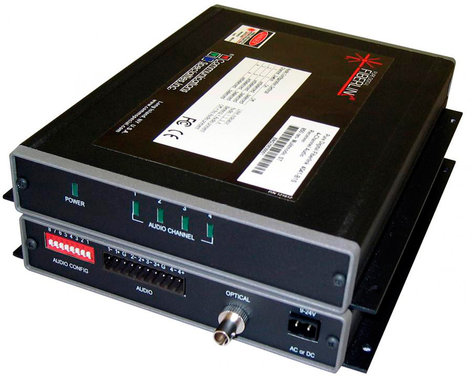

TecNec 4040-B1S
Box Transmitter, 850mm

OUR PART #  4040-B1S

Our Price: $868.95
List Price: $895.00
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Communications Specialties Fiberlink® 4040 Series digitally transmits four independent audio channels over one multimode or single mode fiber at 850, 1310 or 1550 nm. It is ideal for Rental, Staging, Education and Broadcast applications.

NOTE: Transmitter only. Receiver sold separately

TecNec 4040-B1S Features:

  • No adjustments; pure digital processing andtransmission
  • 24 bit/96 kHz sampling; maximum audio level +24 dBu
  • 20 Hz to 20 kHz frequency response
  • Line level, balanced or unbalanced audio operationIndicator
  • LEDs monitor audio signals and power
  • Wide range power supply allows operation from lowvoltage AC and DC sources
  • Card version fills one slot in 6000A card cage
  • System consists of transmitter and receiver unit; cardor box version.
    • Each end, plus power supply PDPD-1-NA, must be purchasedseparately.
  • RoHS Compliant

TecNec 4040-B1S Specifications:

  • Audio:
    • Number of Audio Channels; 4, balanced or unbalanced
    • Frequency Response: +0/-0.5 dB, 20 Hz - 20 kHz
    • Bits-per-Sample/Sampling Rate: 24 bits; 96 kHz
    • Maximum Audio Level: +24 dBu
    • SNR (A-Weighted): 95 dB
    • THD+N: 0.002%, 20 Hz - 20 kHz
    • Channel Phase Differential+0.1o
    • System Latency: 200 uS + fiber cable propagation delay (typically 5 uS/km of fiber)
    • Crosstalk: Min. 95 dB (1 kHz)
    • Input Impedance: 600 Ohms terminated; >24 k Ohms unterminated
    • Output Impedance: 50 Ohms
    • Audio Connectors: Removable screw terminal
    • Switches: Dip switches to select input termination, balanced or unbalanced input/output
      • Selectable on a per-channel basis
  • General:
    • LED Indicators:
      • Power; Audio Present (per channel)
      • Alarm LED (card version only)
    • Power Requirements*: 9-24 volts AC or DC, 5 watts
    • Operating Temperature Range: -35° to +60° C
    • Relative Humidity: 10%-90% (non-condensing)
    • Optical Connectors: ST or FCPC
    • Operating Wavelength: 850, 1310 or 1550 mm
    • Physical Size (WxHxL): 6.5" x 1.15" x 8"  (165 x 29 x 203 mm)
    • Weight: approx. 1 lb. (0.45 kg)
    • Slots Filled in 6000A Card Cage: 1
    • MTBF: 83,000 Hours
      * For operation from 95-250VAC, 50/60Hz, a PDPS-1 plug-in adapter is required.

TecNec 4040-B1S
Box Transmitter, 850mm

OUR PART #  4040-B1S

Product Information:

The Communications Specialties Fiberlink® 4040 Series digitally transmits four independent audio channels over one multimode or single mode fiber at 850, 1310 or 1550 nm. It is ideal for Rental, Staging, Education and Broadcast applications.

NOTE: Transmitter only. Receiver sold separately

TecNec 4040-B1S Features:

  • No adjustments; pure digital processing andtransmission
  • 24 bit/96 kHz sampling; maximum audio level +24 dBu
  • 20 Hz to 20 kHz frequency response
  • Line level, balanced or unbalanced audio operationIndicator
  • LEDs monitor audio signals and power
  • Wide range power supply allows operation from lowvoltage AC and DC sources
  • Card version fills one slot in 6000A card cage
  • System consists of transmitter and receiver unit; cardor box version.
    • Each end, plus power supply PDPD-1-NA, must be purchasedseparately.
  • RoHS Compliant

TecNec 4040-B1S Specifications:

  • Audio:
    • Number of Audio Channels; 4, balanced or unbalanced
    • Frequency Response: +0/-0.5 dB, 20 Hz - 20 kHz
    • Bits-per-Sample/Sampling Rate: 24 bits; 96 kHz
    • Maximum Audio Level: +24 dBu
    • SNR (A-Weighted): 95 dB
    • THD+N: 0.002%, 20 Hz - 20 kHz
    • Channel Phase Differential+0.1o
    • System Latency: 200 uS + fiber cable propagation delay (typically 5 uS/km of fiber)
    • Crosstalk: Min. 95 dB (1 kHz)
    • Input Impedance: 600 Ohms terminated; >24 k Ohms unterminated
    • Output Impedance: 50 Ohms
    • Audio Connectors: Removable screw terminal
    • Switches: Dip switches to select input termination, balanced or unbalanced input/output
      • Selectable on a per-channel basis
  • General:
    • LED Indicators:
      • Power; Audio Present (per channel)
      • Alarm LED (card version only)
    • Power Requirements*: 9-24 volts AC or DC, 5 watts
    • Operating Temperature Range: -35° to +60° C
    • Relative Humidity: 10%-90% (non-condensing)
    • Optical Connectors: ST or FCPC
    • Operating Wavelength: 850, 1310 or 1550 mm
    • Physical Size (WxHxL): 6.5" x 1.15" x 8"  (165 x 29 x 203 mm)
    • Weight: approx. 1 lb. (0.45 kg)
    • Slots Filled in 6000A Card Cage: 1
    • MTBF: 83,000 Hours
      * For operation from 95-250VAC, 50/60Hz, a PDPS-1 plug-in adapter is required.
