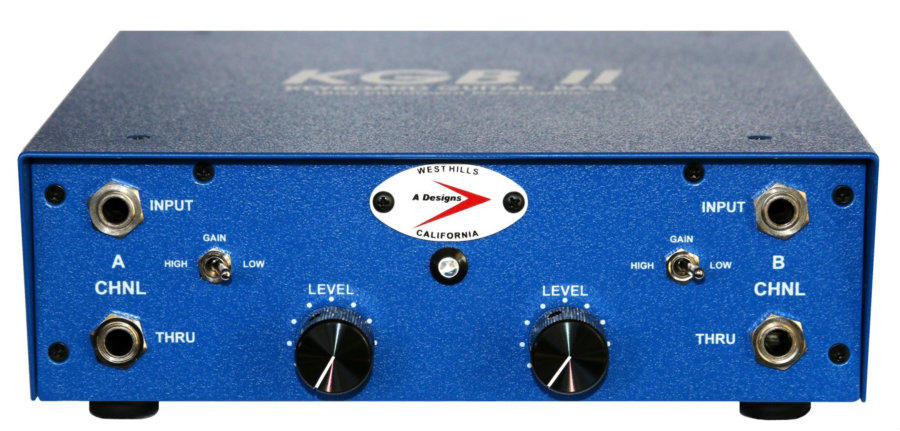

A-Designs KGB-II
2-Channel Instrument Pre-Amp

OUR PART #:  KGB-II

The A-Designs KGB-II, like their KGB-1TF, is a single-ended...
Learn More
Our Price: $745.00
List Price: $825.00
You save 10%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

A-Designs KGB-II
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The A-Designs KGB-II, like their KGB-1TF, is a single-ended, high input impedance, discrete audio pre-amp designed for high impedance, unbalanced outputs such as: guitar, bass guitar, and electronic keyboards. In the same way that a low impedance, balanced pre-amp is needed (designed for use with microphones), a pre-amplifier designed for use with unbalanced high impedance instruments is also required. The KGB Series contains high voltage, discrete op-amps with balanced output transformers by Cinemag, Inc.

The A-Designs KGB-II is a two-channel, solid state unit that allows use of both channels for stereo recordings or live performances. This works well with stereo output instruments such as keyboards or stereo guitar pickups. For bass players, there is  freedom to use two basses in a live performance, simply by picking up the other bass and playing without any delay between songs.

Applications:

  • Output to Line-In to FOH or Stage Monitors
  • Output to Line-In on a Recording Console
  • Output to Input of Digital Audio Converters
  • Output to Power Amplifiers
  • Both devices provide a Balanced, Line-Level +4db Output - allows for bypass of the typical DI, Microphone Preamplifier and other input stages

A-Designs KGB-II Features:

  • All Metal Chassis
  • Milled Aluminum Knobs
  • Balanced XLR Gold Pin Neutrik Outputs
  • Switchcraft 1/4" Input Jacks
  • Bipolar Electrolytic Capacitors
  • 1% Metal Resistors
  • Blue LED Power Indicator
  • 4 Rubber Feet
  • Heat Vents
  • Two Discrete Inputs with Thru
  • Gain Select Switches for each channel - High/Low
  • Phase Reverse Switch for each channel
  • Gain Lift Switch
  • External Power Transformer for a very low Noise Floor

A-Designs KGB-II Specifications:

  • S/N: Better than 90db (shorted input)
  • Output: Xfmr Balanced +4 @ 600 ohms
  • Power: 20VAC (rated) 22-27VAC (unloaded) External,+/-24VDC Internal
  • Gain: Low = 70db, High = 90db (2Khz source @ .775V)
  • Gain: Low = 35db, High = 60db (2Khz source @ .09mv)
  • Sensitivity: Lower than .09mv
