Whirlwind THS 3
Talkback Headphone Box, Console

OUR PART #:  THS3

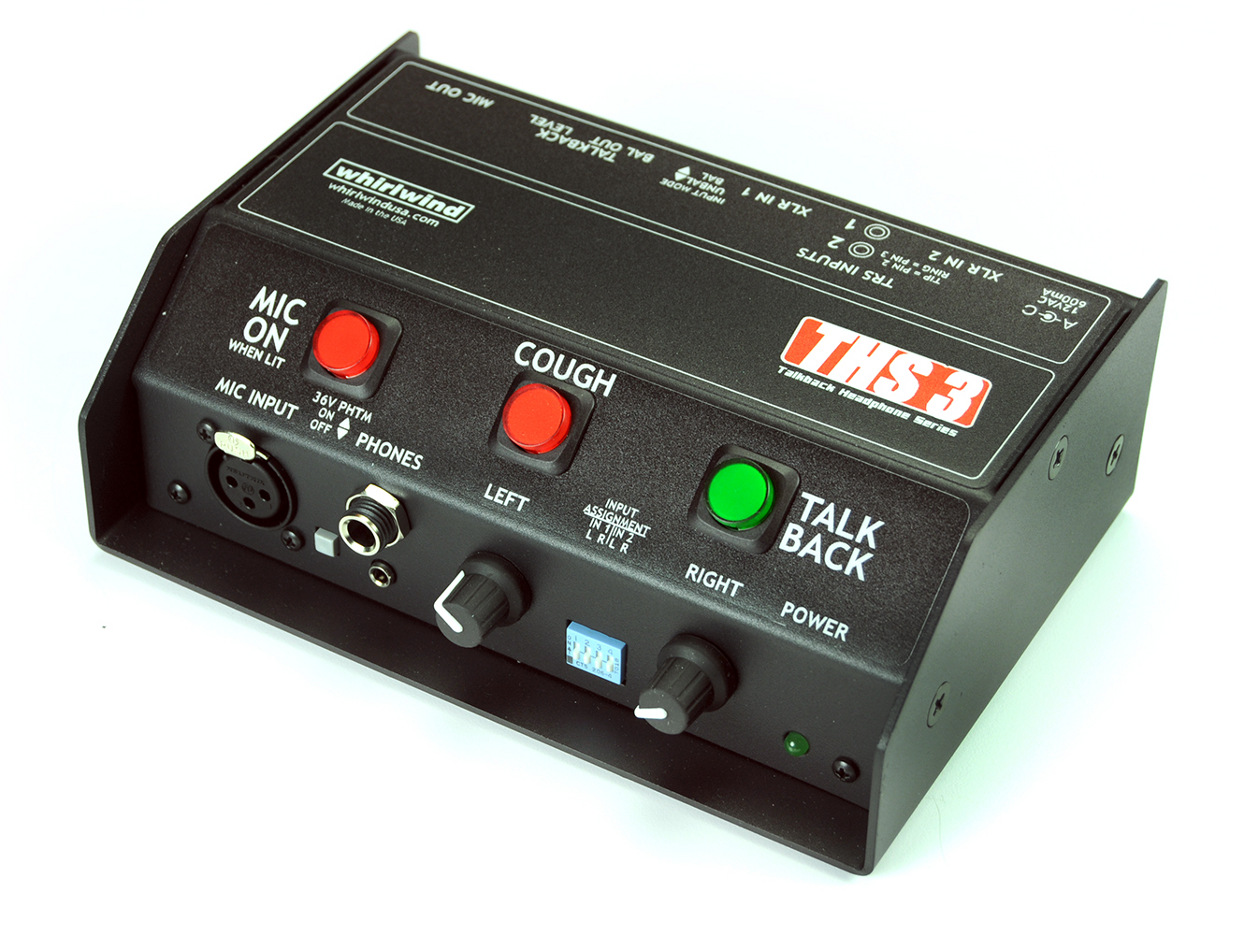

The Whirlwind THS 3 Talkback/Headphone box is an all-purpose, fully loaded sports announcer console.
Learn More
Our Price: $436.00
List Price: $685.88
You save 36%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Whirlwind THS 3
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Whirlwind THS 3 Talkback/Headphone box is an all-purpose, fully loaded sports announcer console. Both main and talkback microphone outputs are provided, with Mic On/Off, Cough and Talkback switches for control. The talkback output is line level with a trim control, and the main microphone output of Whirlwind's THS 3 will be live on-air (if power is lost) when using dynamic microphones.

There are two assignable inputs for the headphones with balanced and unbalanced connections. Each input can be assigned to left, right or both ears. The THS 3 left and right headphone amplifiers have individual volume controls that adjust the overall level in each ear. Headphones with impedances ranging from 30 to 600 Ohms can be driven to full volume.

The Whirlwind THS 3 has both main and talkback microphone outputs. A latching Mic On/Off switch connects signal to the main mic output. The switch is illuminated red when the mic output is live. 36 Volt phantom power is available if condenser mics are used. Onboard phantom power allows seamless switching when talkback is activated, and the switch to turn phantom power on and off is recessed to avoid accidental turn off. A momentary Cough switch silences both the mic out and the talkback out when depressed.

The momentary Talkback switch connects audio to the talkback output and mutes the mic out. The announcer’s microphone is sent through a preamp and line driver that deliver signal to the talkback output at line level. There is a level control for fine adjustment of the audio sent down the talkback line. The Talkback switch illuminates green when depressed.

The headphone section of the THS 3 has two inputs. Each input can be assigned to left, right or both ears. Individual volume controls are provided for left and right ears, which adjust the overall level of any inputs assigned to that ear. Input signals can be either balanced mono or unbalanced stereo. A rear panel switch selects the proper mode. Both 3 pin XLR and ¼” TRS input jacks are provided for hookup flexibility. Headphones with impedances ranging from 30 to 600 Ohms can be driven to full volume. Power is supplied by a 12 VAC power adapter, model # PS12AC1A (included).

Whirlwind THS 3 Includes:

  • PS12AC1A power adapter

Whirlwind THS 3 Features:

  • Separate left and right headphone amps with individual volume controls
  • Two headphone signal inputs can be assigned to either or both ears
  • Balanced or unbalanced inputs on XLR or ¼” TRS jacks
  • Passive Mic Out for on-air reliability
  • Mic output switching is completely silent
  • Active line level Talkback Out with level adjust
  • Mic On, Cough and Talkback switches for control
  • ¼” TRS or 3.5mm headphone jacks
