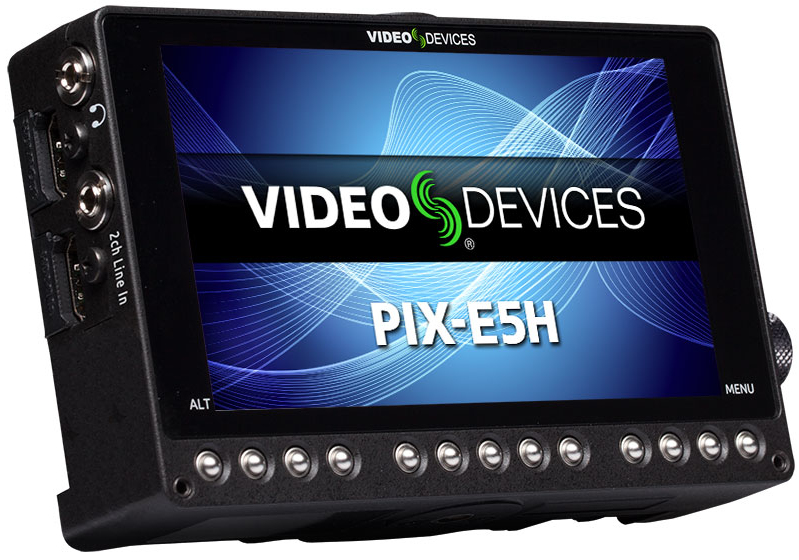

Video Devices PIX-E5H
5" 1920 x1080p 441 ppi Portable Recording Field Monitor with HDMI

OUR PART #  PIX-E5H

Video Devices PIX-E5H - Left Side ViewVideo Devices PIX-E5H - Right Side View
Video Devices PIX-E5H - Left Angled Front ViewVideo Devices PIX-E5H - Rear ViewVideo Devices PIX-E5H - Front View
Click an image to see more images(7).


Our Price: $1,195.00
In Stock

Recommended Accessories

From Video Devices comes the PIX-E5H, a 5-inch 1920 x 1080 441 ppi field recording monitor offering HDMI input & output. The PIX-E series monitors all feature a compact, die-cast metal housing and a Gorilla Glass 2 protected LCD display protected, making it the ideal choice for cinematographers and videographers seeking a monitor that can hold up to the rigors of the most extreme and demanding production environments.

The PIX-E lineup also includes PIX-Assist™, an impressive set of monitoring tools, including TapZoom™ for unrivaled focusing speed, guide markers for framing, false colors and zebras for exposure setting, LUTs and a range of scopes including waveform monitor, histogram, and vectorscope. These useful on-camera monitors incorporate a ‘best-of-both-worlds’ user interface combining easy-to-access real tactile buttons along with an intuitive touch screen. And their ability to record the highest quality Apple ProRes edit-ready video make the PIX-E recording monitors an affordable, must-have tool for any video production professional.

Video Devices PIX-E5H Features:

  • Full HD, Ultra-Bright IPS Touchscreen
  • TapZoom™ for Rapid Focus
  • PIX-Assist™ Monitoring Tools
  • 4K Recording
  • Apple ProRes 422 HQ
  • Real Buttons for Fast Tactile Control
  • Robust Die-Cast Metal Chassis
  • Virtually Indestructible Gorilla® Glass 2

Video Devices PIX-E5H Specifications:

  • Display
    • LCD Size: 5”
    • Resolution, ppi: 1920 x 1080, 441ppi
    • Luminance (Brightness): 500 nit
    • IPS with Gorilla® Glass 2: Yes
  • Monitoring Tools | PIX-Assist™:
    • TapZoom: 1x, 2x, 4x
    • Peaking Filter, Guide Markers, Vectorsope, and Histogram: Yes
    • False Colors and Zebras: 4-step. 12-step, Zebras 1, Zebras 2
    • Waveform Monitor:
      • Luma (White, Green)
      • RGB (Overlay, Parade)
    • LUTs: To LCD and/or outputs
    • 4-way View (Live, WFM, Vector, Histogram): Yes
  • Recorder:
    • Recording Media: SpeedDrive (128 GB to 1 T - sold separately)
    • Codec: Apple ProRes Proxy to Apple ProRes 422 HQ
    • Max Resolution/Frame Rate: 60 fps (HD); 30 fps (UHD); 24 fps (4K)
    • File Transfer to Computer: via SpeedDrive USB 3.0 interface
  • Video:
    • Inputs and Outputs: HDMI
  • Audio:
    • Max No. Tracks: 6
    • Analog Inputs: 2x unbalanced line, 3.5mm 2x balanced mic/line, XLR (via optional PIX-LR - sold separately)
    • Embedded Audio Inputs: 2 HDMI
    • Headphone Output: Yes
  • Remote Control & Timecode:
    • Record Start/Stop Flags, Embedded TC: HDMI only
  • Powering:
    • Power Source: EXT DC (10-34V)
    • 2x Sony L-mount batteries (optional-sold separately)
  • Physical:
    • Dimensions: 5.4" W x 3.4" H x 1.6" D
    • Weight: 15 oz
