Atlas Sound WPD-RISRL
Wall Plate for AA-PHD Mixer/Amplifiers

OUR PART #:  WPD-RISRL

The Atlas Sound WPD-RISRL is a decora-style wall plate that is designed for use with the AA50PHD, AA100PHD, AA200PHD...
Learn More
Our Price: $35.99
List Price: $43.99
You save 18%!
Write the first review.
Atlas Sound WPD-RISRL
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

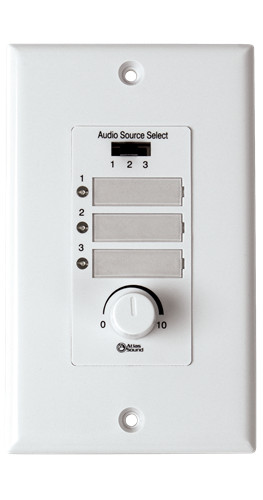

The Atlas Sound WPD-RISRL is a decora-style wall plate that is designed for use with the AA50PHD, AA100PHD, AA200PHD, or AA400PHD mixer amplifiers to use the remote input selection (RIS) feature. The WPD-RISRL features an audio source slide selector as well as a source volume control. The unit includes an LED indicator to indicate which source is selected and if it is active. The unit fits in a single-gang electrical outlet and uses an 8-conductor interface connection that includes a single 4-position removable Phoenix connector and dual 2-position Phoenix style connectors. When connected to the RIS output on an appropriate AAPHD amplifier, the WPD-RISRL allows for remote selection and volume adjustment of inputs 2, 3, and 4 allowing the rack to remain locked and secured.

Atlas Sound WPD-RISRL Features:

  • Designed for Remote Input Selection and Volume Adjustment Used with Select AAPHD Amplifiers
  • Input Select Slide Switch
  • Level Control Via On Board 10kOhm Potentiometer
  • System Status Indicator (Red)
  • 8-Conductor Interface Connection
  • Label Guard
  • Dimensions (HxWxD): 4.5" x 2.5" x 0.24" (114 x 63 x 6.4 mm)
Atlas Sound WPD-RP  Rack Mount Plate for Single Gang Wall-Plates; 5 Wall Plates
Atlas Sound WPD-RP Rack Mount Plate for Single Gang Wall-Plates; 5 Wall Plates
The AtlasIED WPD-RP is a rack mount kit designed to hold up to five wall controllers or switches like the WPD-RISRL or VPB-1A in a full width rack. The unit is constructed using 16-gauge cold rolled steel and takes up 3RU of rack ...
