Traynor SB500H
Small Block Series 500W Bass Amplifier Head


If you're looking for a compact bass amplifier head that still provides plenty of power for your cabinet...
Learn More
Our Price: $449.00
List Price: $619.00
You save 27%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Traynor SB500H
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

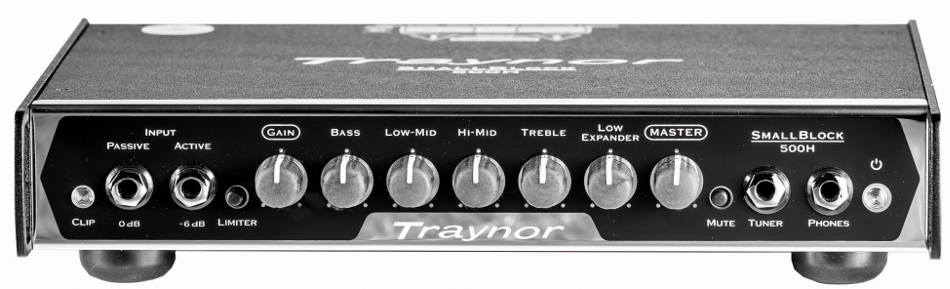

If you're looking for a compact bass amplifier head that still provides plenty of power for your cabinet, Traynor's Small Block Series SB500H 500W bass amplifier head is just what the doctor ordered. Weighing in at only 4.0 lbs and measuring only 9.5" wide, this amp can be easily stored in a bag or backpack and won't slow you down.

Since this is a Small Block Series amplifier, it shares all the same features as the other members of the family, including active- and passive-level instrument inputs for both styles of pickup systems, 1/4"output, and a 4-band EQ with Low Frequency Expander for extra low-end thump. This amp is also equipped with a selectable pre/post EQ XLR DI output, front-mounted tuner output with mute, and a rear-mounted in-line effects loop.

The SB500H is built with a solid all-metal chassis and comes with front-mounted handles to protect the knobs and jacks to ensure that this amp can handle life on the road, bumps and all.

Traynor SB500H Features:

  • 500W Ultra Compact and Lightweight Bass Head
  • All-Metal Chassis
  • Versatile 4-band EQ with Additional Low Frequency Expander
  • Passive and Active Inputs
  • Selectable Pre / Post EQ XLR DI Output
  • Headphone Output for Private Practice
  • Speakon™ Speaker Output
  • Rear-Mounted In-Line Effects Loop
  • Made in Canada

Traynor SB500H Specifications:

  • Power @ Min.  Impedance:  500W
  • Minimum Impedance:  4 Ohms
  • Burst Power - 2 cycle:  600W
  • Inputs:  Passive 0 dB, Active -6 dB
  • Controls:  Gain, Bass, Low Mid, High Mid,Treble, Low Expander, Master Volume
  • Inline Effects Loop:  Yes, 1/4" Send and Return - Rear
  • Line Out (type / configuration):  Balanced Pre/Post EQ Line Out W/ Ground Lift Switch
  • Line Out Sensitivity:  1 Vrms
  • LED Indicators:  Blue - Power / Red -Protect/Mute
  • Protection:  Clip, Thermal, Overcurrent
  • External Speaker Output / Location: Speakon x2, Rear
  • Other Features:  Headphone Out /Mute/ Tuner Out
  • Dimensions (DxWxH):  9.5" x 12" x 2.5" (22cm x 30cm x 6.5cm)
  • Weight:  4.0 lbs (1.8 kg)
